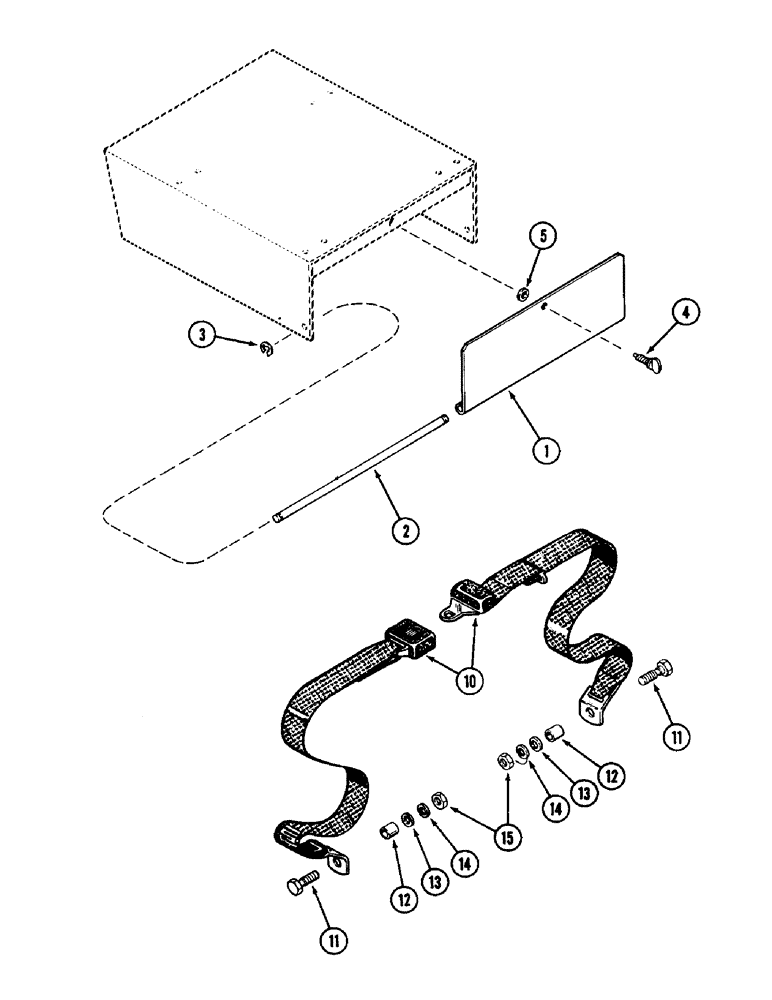

Запчасти Case IH 2090 (9-514) - TOOL BOX (09) - CHASSIS/ATTACHMENTS

1

A139437

DOOR

- tool box

1шт.

2

A145882

SHAFT

- door hinge

1шт.

3

A27810

CIRCLIP,#X31, .243" Dia, E-Type

Ring, Retaining, #X31, .243" Dia, E-Type

2шт.

4

A149108

STUD

- wing head, door retaining

1шт.

5

A61045

RETAINER

- washer, door stud

1шт.

10

A160404

SAFETY BELT

BELT - seat safety, use only with ROPS or cab

1шт.

11

A61946

STEP BOLT

BOLT - shoulder, seat belt, safety, use only with ROPS or cab

2шт.

12

A60907

BUSHING

SPACER - bolt, safety seat belt, use only with ROPS or cab

2шт.

13

195-529

WASHER,7/16", SAE

- 15/32 x 59/64 x 1/16 inch (12 x 23 x 2 mm), safety seat belt, use only with ROPS or cab

2шт.

14

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Safety seat belt, use only with ROPS or cab 7/16"

2шт.

15

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NC, safety seat belt, use only with ROPS or cab

2шт.
