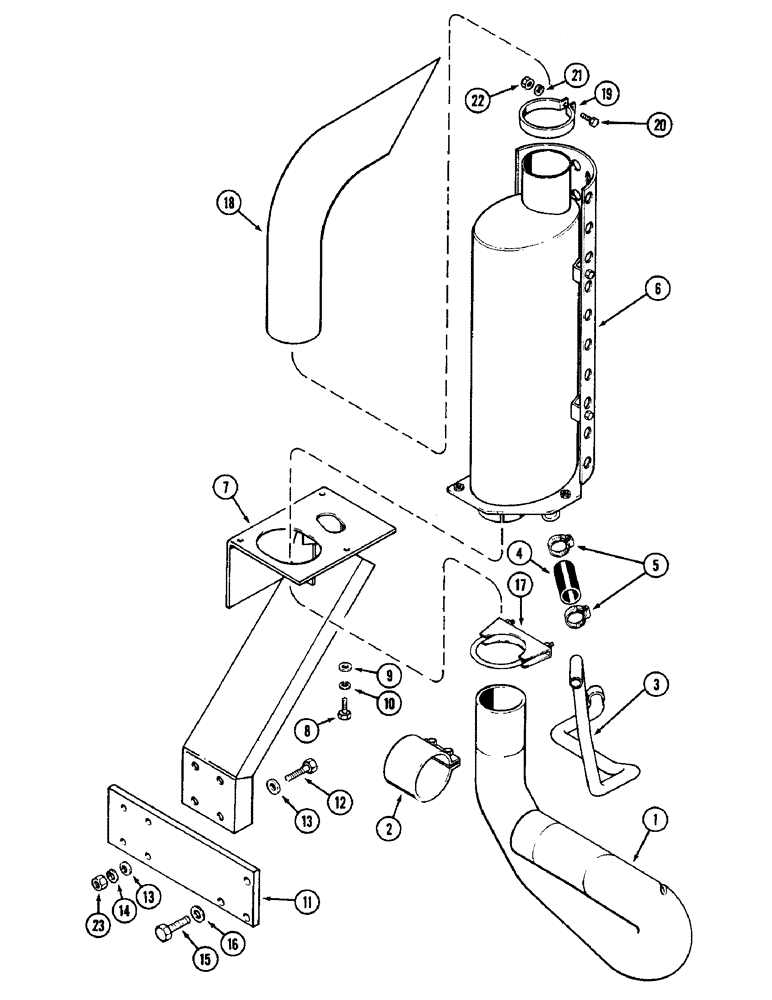

Запчасти Case IH 2090 (2-22) - VERTICAL MUFFLER, 504BD DIESEL ENGINE (02) - ENGINE

A176129

ATTACHMENT - vertical muffler (Machinery item) (Replaces A162370), Includes: Ref. 1 - 23

1шт.

1

A162261

PIPE

- exhaust

1шт.

2

A149249

ASSEMBLY

CLAMP ASSEMBLY - sealing exhaust pipe

1шт.

3

A166718

TUBE

- aspirator (Replaces A162289)

1шт.

4

A161681

HOSE,31.80 mm ID x 95.20 mm, SAE 20R1 Class A per SAE J20E

- Aspirator tube, Lower 31.80 mm ID x 95.20 mm, SAE 20R1 Class A per SAE J20E

1шт.

5

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch (30 to 44 mm)

2шт.

6

A162977

MUFFLER

ASSEMBLY - exhaust

1шт.

7

A162590

BRACKET

- mounting, muffler

1шт.

8

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

9

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

3шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

11

A162592

BRACKET

PLATE - stiffener, side rail

2шт.

12

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

4шт.

13

195-106

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch (14 x 35 x 3 mm)

8шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

15

113-2617

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

Hex, 5/8"-11 x 2-1/4", G8

3шт.

16

A35147

WASHER

- stiffener plate bolt

3шт.

17

A162896

CLAMP

ASSEMBLY - exhaust, Serial Range: pipe-muffler

1шт.

18

A147045

PIPE

EXTENSION - exhaust pipe

1шт.

19

A162895

CLAMP

- exhaust extension

1шт.

20

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

22

129-770

NUT,3/8"-16, G5

- hex, 3/8 inch NC

1шт.

23

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.
