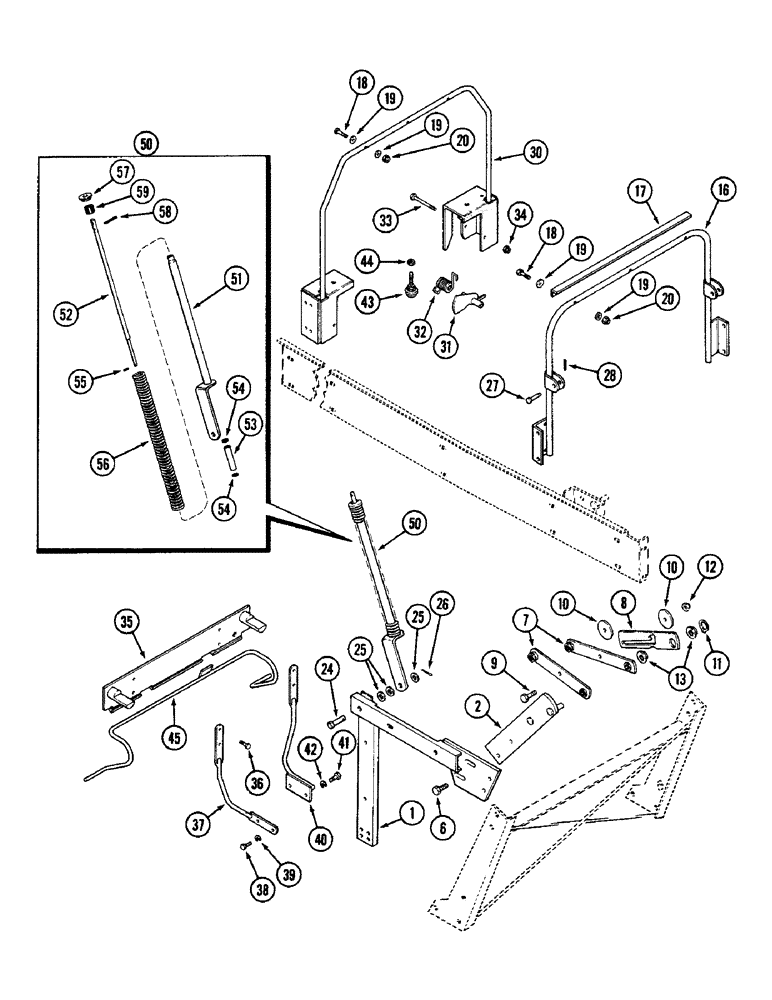

Запчасти Case IH 2090 (9-502) - HOOD SUPPORTS, HINGE AND LATCH, WITH HOOD TRIGGER AND LATCH SYSTEM (09) - CHASSIS/ATTACHMENTS

1

A145678

CHANNEL

- hood, left

1шт.

1

A145679

CHANNEL

- hood, right (Shown)

1шт.

2

NLS

NO LONGER SERVICED

- hinge support, right (Shown)

1шт.

2

A147613

BRACKET

- hinge support, left

1шт.

6

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

7

A162510

LINK

- hood tilt (Replaces A163392)

4шт.

8

A147632

LEVER

- hood lock

1шт.

9

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

10

195-2174

WASHER,13/32" x 2" x .109"

- 3/8 x 2 x 1/8 inch (9 x 51 x 3 mm)

2шт.

11

B18208

SNAP RING,#100, Ext

hood lock #100, Ext

1шт.

12

131-206

NUT,3/8"-16

NUT - elastic lock, 3/8 inch NC

1шт.

13

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, (Replaces A143129) Push, 1/2"

8шт.

16

A147125

BRAKE

BRACE - hood and cylinder

1шт.

17

A149068

BRACKET

ANGLE - center brace

1шт.

18

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

6шт.

19

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

9шт.

20

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

6шт.

24

141-63

CLEVIS PIN,1/2" x 1 11/16'"

PIN - cylinder to support

2шт.

25

195-106

WASHER,1/2"

- 9/16 x 1-3/8 x 7/64 inch (14 x 35 x 3 mm)

4шт.

26

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), 1/8" x 1 1/8"

2шт.

27

141-13

CLEVIS PIN,1/4" x 1.594"

PIN - upper, 1/4 inch

2шт.

28

132-17

COTTER PIN,1/16" x 2"

PIN - cotter, 1/16 x 1-1/8 inch

2шт.

30

A147212

BRACE

- hood support, rear

1шт.

Part of Hood Latch Kit, P/N A67592

1шт.

31

A147728

TRIGGER

- hood lock

2шт.

Part of Hood Latch Kit, P/N A67592

1шт.

32

A147730

SPRING

- torsion, hood lock

2шт.

Part of Hood Latch Kit, P/N A67592

1шт.

33

113-53

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

2шт.

Part of Hood Latch Kit, P/N A67592

1шт.

34

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

Part of Hood Latch Kit, P/N A67592

1шт.

35

A147221

SUPPORT

- rear, hood

1шт.

Part of Hood Latch Kit, P/N A67592

1шт.

36

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

Part of Hood Latch Kit, P/N A67592

1шт.

37

A147218

BRACE

ROD - hood support, right rear

1шт.

Part of Hood Latch Kit, P/N A67592

1шт.

38

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

39

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

40

A162749

ROD

- hood support, left rear (Replaces A161203 and A147219)

1шт.

41

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

42

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

43

A145178

WAD

BUMPER - hood rest

2шт.

Part of Hood Latch Kit, P/N A67592

1шт.

44

9635082

NUT,5/16" - 18, Gr 5

2шт.

Part of Hood Latch Kit, P/N A67592

1шт.

45

A147749

HANDLE

- hood lock release

1шт.

50

A147817

GAS STRUT,952.5mm Extended, 609.6mm Compressed

ASSEMBLY - hood lift, Includes: Ref. 51 - 59

2шт.

51

NSS

NOT SOLD SEPARAT

CYLINDER - hood lift (Order A147817)

1шт.

52

NSS

NOT SOLD SEPARAT

SHAFT - cylinder (Order A147817)

1шт.

53

A147819

PISTON ASSY.

PISTON - lift cylinder

1шт.

54

195-522

WASHER,5/16"

- 3/8 x 3/4 x 1/16 inch (10 x 19 x 2 mm)

2шт.

55

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

1шт.

56

NSS

NOT SOLD SEPARAT

SPRING - hood lift

1шт.

57

A147820

RETAINER

- spring lift

1шт.

58

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

59

A166395

SEAL

- bumper (Replaces F64347)

1шт.

A67592

KIT - hood latch, Tractors equipped loader (Machinery item), Includes: Ref. 30 - 37, 43 and 44

1шт.
