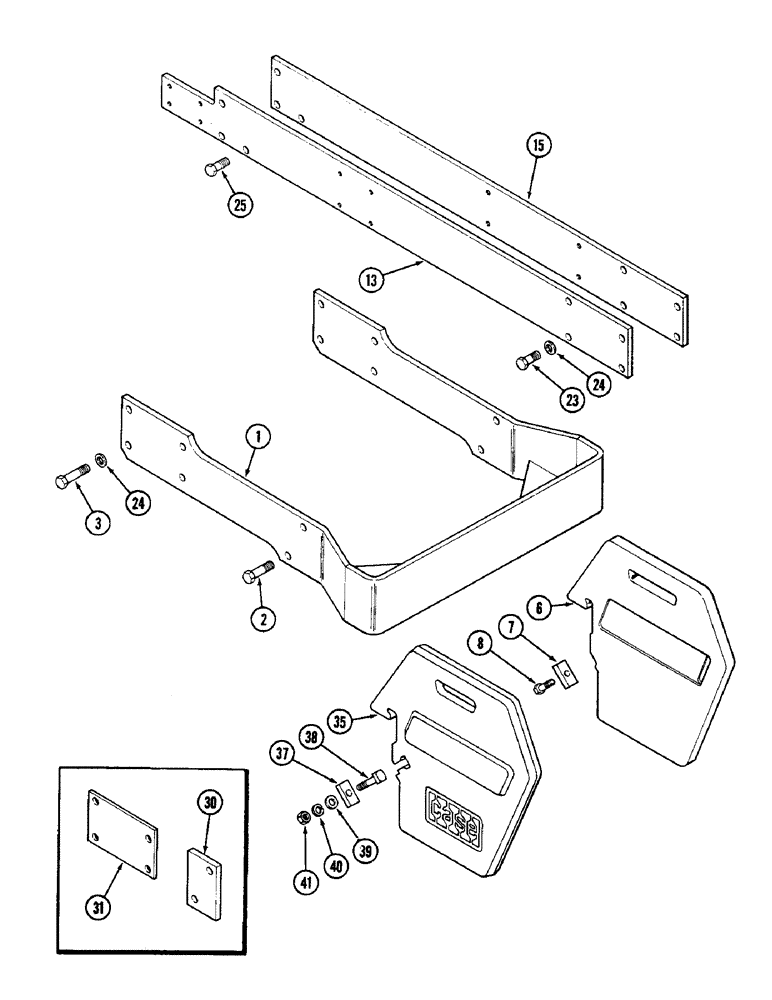

Запчасти Case IH 2090 (9-500) - WEIGHT SUPPORT FRAME & SIDE RAILS, WITH 24-1/4 INCH (615.95 MM) INSIDE WIDTH OF WEIGHT SUPPORT FRAME (09) - CHASSIS/ATTACHMENTS

A67515

FRAME ATTACHMENT - support front end weight (Machinery item), Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - support, 24-1/4 inch (616 mm) inside width

1шт.

2

113-774

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch (Grade 8), front of frame

4шт.

3

26-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

rear frame Hex, 3/4"-10 x 3", G8

8шт.

A67373

WEIGHT

ATTACHMENT - front end (Machinery item), Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

WEIGHT - 75 pounds (35 kg) (Order A67373)

1шт.

7

A145919

CLAMP

- weight

1шт.

8

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

13

A162584

RAIL

- side, right, 60-17/32 inch (1 537 mm)

1шт.

15

A164049

RAIL ASSY.

RAIL - side, left, 53-35/64 inch (1 360 mm)

1шт.

23

113-713

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

Used without weight, support frame Hex, 3/4"-10 x 1 3/4", G5

8шт.

24

A26462

WASHER

- hardened, 49/64 x 1-1/4 x 5/64 inch (20 x 32 x 2 mm)

8шт.

25

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

6шт.

A67516

SPACER ATTACHMENT - front end support (Machinery item), kit, Includes: Ref. 30 & 31

1шт.

30

A160542

BUSHING

SPACER - front end support frame, used on the front of the frame, kit

2шт.

31

A162012

PLATE ASSY.

SUPPORT - front end support frame, used on the rear of the frame, spacer kit

4шт.

35

A169111

WEIGHT

- front end (Machinery item), spacer kit

1шт.

A177102

KIT

HARDWARE KIT - weight (Machinery item), spacer kit, Includes: Ref. 37 - 41

1шт.

37

A145919

CLAMP

- weight, spacer kit

1шт.

38

A169139

SQUARE BOLT

- clamp retaining, spacer kit

1шт.

39

195-533

WASHER,1/2", SAE

- 17/32 x 1-1/16 x 7/64 inch (13 x 27 x 3 mm), spacer kit

1шт.

40

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Spacer kit 1/2"

1шт.

41

129-105

NUT,Hex, 1/2" - 13, Gr 5

Spacer kit 1/2"-13, G5

1шт.
