Запчасти Case IH 2090 (9-494) - DRAWBAR, SPECIAL WIDE SWING, WITHOUT HITCH (09) - CHASSIS/ATTACHMENTS

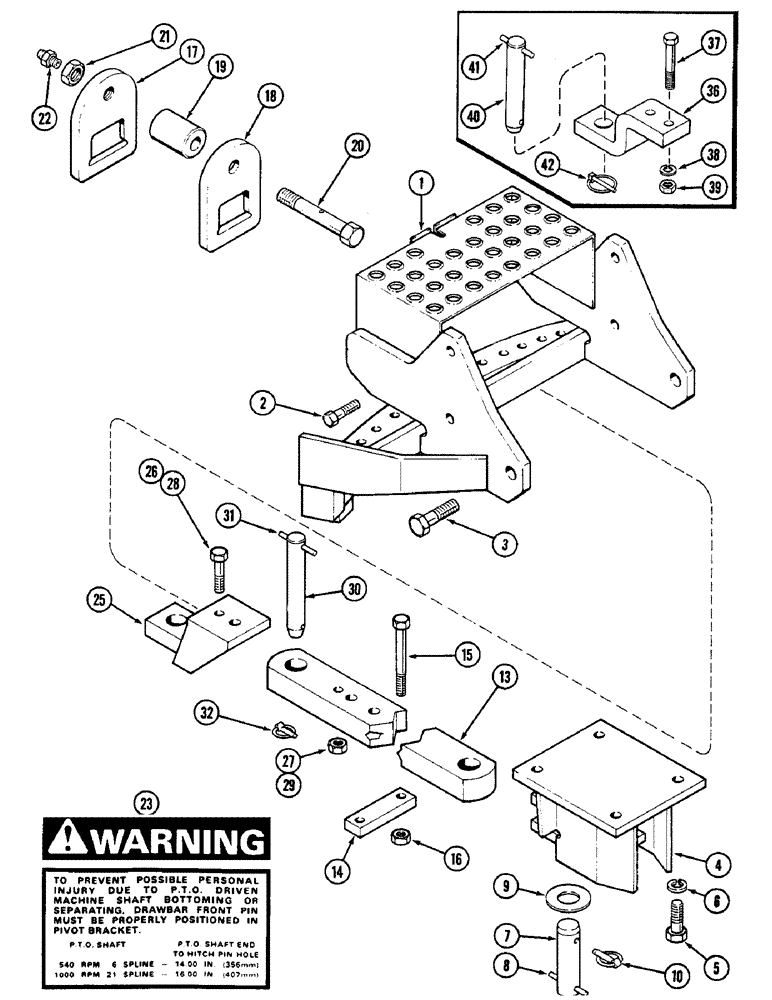

Схема запчастей Case IH 2090 - (9-494) - DRAWBAR, SPECIAL WIDE SWING, WITHOUT HITCH (09) - CHASSIS/ATTACHMENTS
27
18
7
16
37
13
10
22
17
19
4
2
20
14
25
42
6
40
3
39
26
23
5
8
41
1
36
31
32
30
15
21
29
28
38
9

Артикул

Название

Примечание

Количество

1

A161751

BRACKET

- support, drawbar swing (Replaces A160766)

1шт.

2

113-712

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

4шт.

3

113-925

BOLT,Hex, 1" - 8 x 3", Gr 5

- hex, 1 NC x 3 inch

2шт.

4

A160820

BRACKET

- front support and pivot

1шт.

5

113-712

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

4шт.

6

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

7

A160831

PIN

ASSEMBLY - pivot

1шт.

8

138-326

LOCK PIN,3/8" x 3 1/4", Slotted

Pin, 3/8" x 3 1/4", Slotted

1шт.

9

A160830

WASHER

- pivot pin

1шт.

10

D33805

PIN

- klik

1шт.

13

A160824

DRAWBAR, SWINGING

DRAWBAR

1шт.

14

A63600

STRAP

- drawbar clamp

1шт.

15

113-653

BOLT,Hex, 5/8" - 11 x 5-3/4", Gr 5

- hex, 5/8 NC x 5-3/4 inch

2шт.

16

25-1010

NUT,5/8"-11, G5

2шт.

17

A135433

PLATE

BRACKET - threaded, drawbar hanger

1шт.

18

A65754

PLATE

BRACKET - drawbar hanger

1шт.

19

A135435

ROLLER

- drawbar

1шт.

20

A135434

BOLT

- roller

1шт.

21

129-110

NUT,1"-8, G5

1шт.

22

219-22

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 inch PT

1шт.

23

321-5459

DECAL

- drawbar pin

1шт.

A67493

CLEVIS

YOKE ATTACHMENT - drawbar (Machinery item), Includes: Ref. 25 - 32

1шт.

25

A160726

YOKE

1шт.

26

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- hex, 3/4 NC x 2-3/4 inch (Grade 8)

1шт.

27

129-138

NUT,3/4"-10, G8

1шт.

28

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

- hex, 5/8 NC x 2-3/4 inch (Grade 8)

1шт.

29

129-183

NUT,5/8"-11, G8

1шт.

30

A65764

PIN

ASSEMBLY - implement, Includes: Ref. 31 & 32

1шт.

31

135-817

GROOVED PIN,3/8" x 3 1/4", Type E

Pin, Grooved, 3/8" x 3 1/4", Type E

1шт.

32

A30338

PIN

- klik

1шт.

A61836

KIT

YOKE ATTACHMENT - drawbar, wideswing (Machinery item), Includes: Ref. 36 - 42

1шт.

36

A61557

DRAWBAR CLAMP

STRAP - hammer

1шт.

37

113-718

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

Strap to drawbar Hex, 3/4"-10 x 4 1/2", G5

2шт.

38

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

39

129-108

NUT,3/4"-10, G5

2шт.

40

A65760

PIN

ASSEMBLY - drawbar, Includes: Ref. 41 & 42

1шт.

41

138-326

LOCK PIN,3/8" x 3 1/4", Slotted

Pin, 3/8" x 3 1/4", Slotted

1шт.

42

A61560

LOCK PIN

PIN - klik

1шт.

Выбрано товаров: 38
