Запчасти Case IH 2090 (9-484) - HITCH DRAFT ARMS, TELESCOPING (09) - CHASSIS/ATTACHMENTS

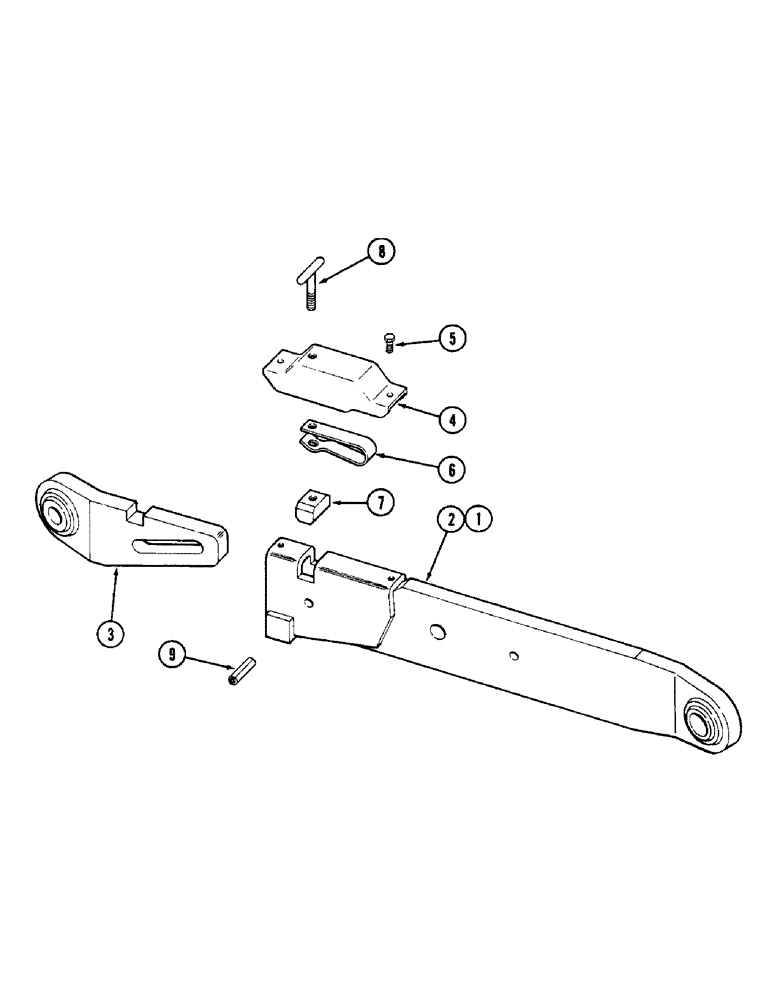

Схема запчастей Case IH 2090 - (9-484) - HITCH DRAFT ARMS, TELESCOPING (09) - CHASSIS/ATTACHMENTS
6
9
2
1
3
5
8
4
7

Артикул

Название

Примечание

Количество

A67599

KIT - telescoping draft arms (Machinery item), Includes: Ref. 1 - 9

1шт.

1

A169344

ARM

ASSEMBLY - hitch draft, left, Includes: Ref. 3 - 9

1шт.

2

A169343

ARM

ASSEMBLY - hitch draft, right, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

END - draft arm, left (Order A169344) (Reference no. A48913)

1шт.

3

NSS

NOT SOLD SEPARAT

END - draft arm, right (Order A169343) (Reference no. A48914)

1шт.

4

A48915

COVER

- draft arm latch

1шт.

5

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

6

A48917

SPRING

- latch

1шт.

7

A48918

LATCH

- block

1шт.

8

A48916

HANDLE

- latch

1шт.

9

138-2000

PIN,12.7mm OD x 50.8mm L, Coiled

1шт.

Выбрано товаров: 11
