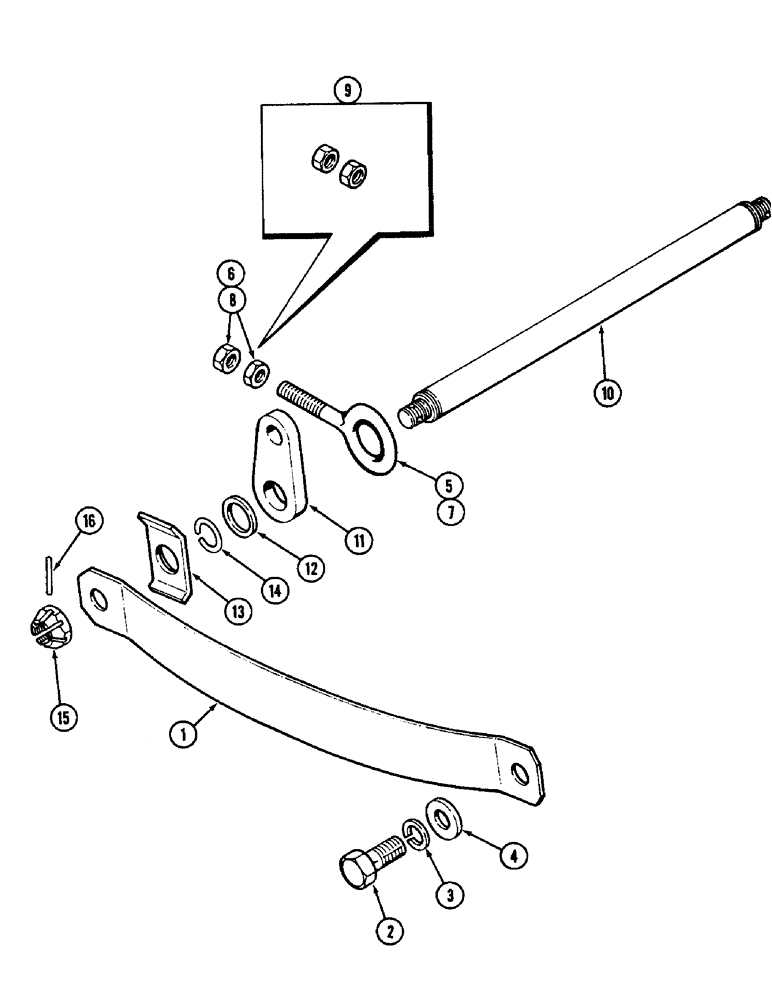

Запчасти Case IH 2090 (9-480) - HITCH SPRINGS AND SHAFT (09) - CHASSIS/ATTACHMENTS

1

A145753

SPRING

- sensing

2шт.

2

113-924

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5, Full Thd

(Order 113-92) Hex, 1"-8 x 2 1/2", G5, Full Thd

2шт.

3

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

4

195-2100

WASHER,1 1/32" x 2" x .238"

- 1-1/32 x 2 x 1/4 inch (26 x 51 x 6 mm)

2шт.

5

A160056

BOLT

- eye, 3/4 inch NC thread (Prior to transmission serial no. 10207171) (Order Ref. 7 & 8)

2шт.

5

A160470

BOLT

- eye 7/8 inch NC thread (Transmission serial no. 10207171 and after) (Order 1-A161356 and 2-131-925)

2шт.

6

A160520

NUT

- flanged, 3/4 inch (Prior to transmission serial no. 10207171)

2шт.

6

A160483

NUT

- flanged, 7/8 inch (Transmission serial no. 10207171 and after)

2шт.

7

A161356

BOLT

- eye, 7/8 inch NF thread (Replaces A160470)

2шт.

8

131-936

NUT,Flg, 3/4"-14, G8

- hex flange, 7/8 inch NF (Replaces A160483)

2шт.

9

129-129

NUT,7/8"-14, G5

- hex, 7/8 inch NF

2шт.

10

A176635

BRACE

SHAFT - cross, draft arm and sending spring (Replaces A139126)

1шт.

11

A139127

LINK

- shaft support

2шт.

12

A62435

WASHER

- spacer, draft arm

2шт.

13

A139548

BUSHING

SPACER - spring

2шт.

14

A57588

RING

- snap

2шт.

15

A33404

NUT

- cross shaft

2шт.

16

138-2014

PIN,3/16" x 1 7/8", Coiled

2шт.
