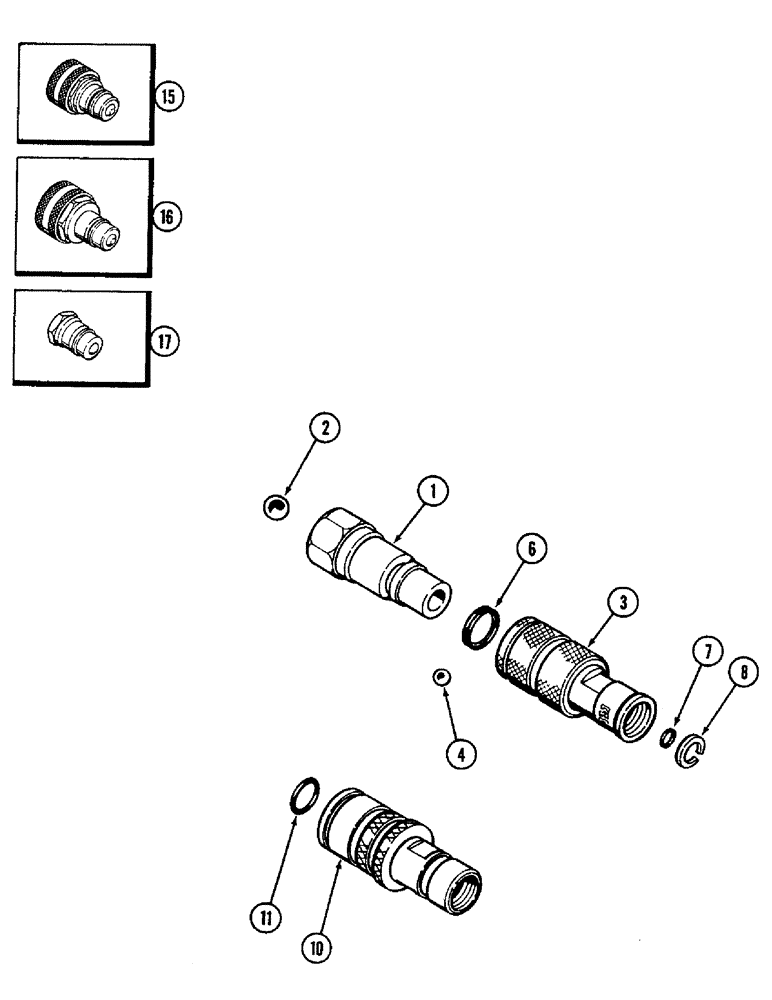

Запчасти Case IH 2090 (8-456) - REMOTE HYDRAULICS, QUICK DISCONNECT COUPLINGS (08) - HYDRAULICS

1

A147889

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - quick disconnect, male half, Includes: Ref. 2

1шт.

2

211-316

BALL,17/32" Dia

- 17/32 inch diameter (13 mm)

1шт.

3

A147888

BREAKER POINTS

COUPLING ASSEMBLY - quick disconnect, female half (Order A147741), Includes: Ref. 4 - 8

1шт.

4

211-5

BALL,3/16" Dia

- 3/16 inch diameter (5 mm)

10шт.

A47220

GASKET KIT

KIT - repair, Includes: Ref. 6 - 8

1шт.

6

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

- body

1шт.

7

A47222

SEAL

- poppet

1шт.

8

NSS

NOT SOLD SEPARAT

RING - lock (Order A47220) (Reference no. A47603)

1шт.

10

A147741

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - female breakaway

1шт.

11

A45601

SEAL

O-RING - seal, 15/64 inch ID (20 mm)

1шт.

15

A160879

COUPLING, BREAK AWAY

ADAPTER ASSEMBLY - male half (John Deere male half to J I Case A147888 female half), hydraulic coupling

1шт.

16

A160880

COUPLING, BREAK AWAY

ADAPTER ASSEMBLY - male half (International Harvester male half to J I Case A147888 female half), hydraulic coupling

1шт.

17

A160937

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - male half (Same as A147889 except it has 1/2-14 inch internal thread), hydraulic adapters

1шт.
