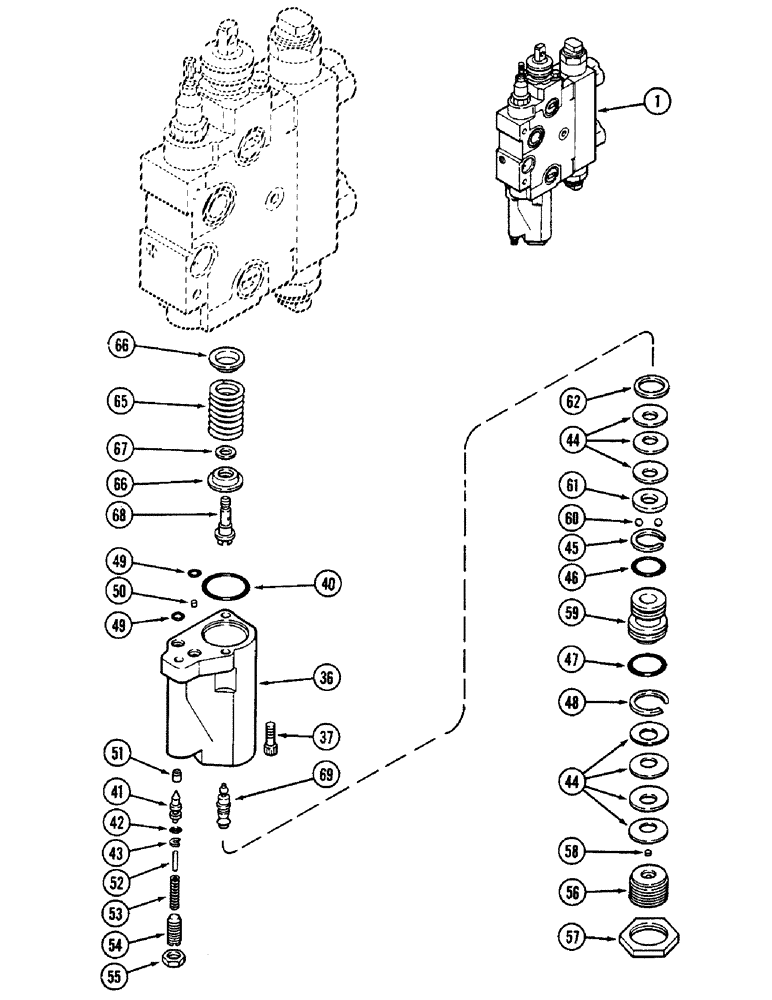

Запчасти Case IH 2090 (8-444) - REMOTE CONTROL VALVE, WITH LOCKOUT (CONTD) (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
A162851
LOCK VALVE
VALVE ASSEMBLY - remote control, Includes: Ref. 36 - 69, 1 - 35 on Figure 8-442 and 75 - 91 on Figure 8-446
1шт.
1
A46913
BODY
ASSEMBLY - remote hydraulic control valve, Includes: Ref. 36 - 69, 2 - 35 on Figure 8-442
1шт.
37
HEX SOC SCREW,1/4"-20 x 1"
SCREW - socket head cap, 1/4 NC x 1 inch
3шт.
40
A59066
O-RING,1.239" ID x 1.379" OD
- 1-1/4 x 1-3/8 x 1/16 inch (32 x 35 x 2 mm)
1шт.
42
A51274
O-RING,0.145" ID x 0.285" OD
- 5/32 x 9/32 x 1/16 inch (4 x 7 x 2 mm)
1шт.
46
R15366
O-RING,7/8" ID x 1" OD x 1/16"
- 7/8 x 1 x 1/16 inch (2 x 25 x 2 mm)
1шт.
47
R15365
O-RING,0.989" ID x 1.129" OD x 0.07"
- 1 x 1-1/8 x 1/16 (25 x 28 x 2 mm)
1шт.
49
A138385
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
- 5/16 x 7/16 x 1/16 inch (8 x 11 x 2 mm)
2шт.
