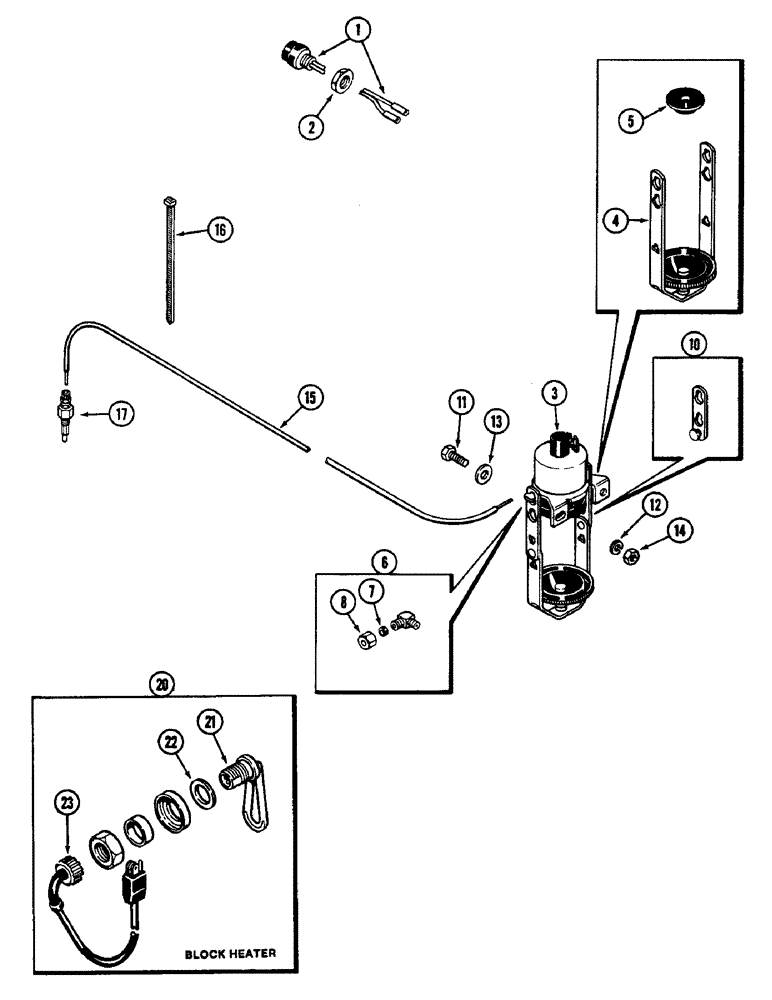

Запчасти Case IH 2090 (2-14) - ETHER STARTING ATTACHMENT, 504BD DIESEL ENGINE (02) - ENGINE

1

A135520

SWITCH

- cold start

1шт.

2

129-127

NUT,5/8"-18, G5

1шт.

3

A143381

SOLENOID

ASSEMBLY - ether start, Includes: Ref. 4 - 8

1шт.

4

A45687

CLAMP

HANGER - ether can (Order D77648)

1шт.

5

R30786

GASKET

- ether can

1шт.

6

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

Assy, 1/8 tube OD, Incl. Ref 7 & 8 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

7

222-650

SLEEVE,1/8" Tube, Comp

1шт.

8

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

- 1/8" tube 5/16"-24, 45º Fl, Comp

1шт.

10

R30812

LINK

- hanger extension

2шт.

11

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

13

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

2шт.

15

A149932

TUBE

- nylon, solenoid to injector 1/8 OD x 81 inch (3 x 2057 mm)

1шт.

16

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - tube (Order L18337)

4шт.

17

A145069

NOZZLE INJECTION

INJECTOR ASSEMBLY, Includes: nut and sleeve

1шт.

20

A155436

RESISTOR

HEATER ASSEMBLY - cylinder block (Replaces A154740 and A47474), Includes: Ref. 21 - 23

1шт.

Subs to 3 diff. part nos. depending on the use. A182017 & A182020 fit in a frost plug hole approx. 1-7/8" dia. JA182059 has a 1" thread.

1шт.

21

NSS

NOT SOLD SEPARAT

ELEMENT - heater (Order A155436), cylinder block

1шт.

22

A45114

GASKET

- element, cylinder block heater

1шт.

23

A44813

CABLE EXTENSION

CORD ASSEMBLY - heater, with plugs 12 inch long (305 mm), cylinder block

1шт.
