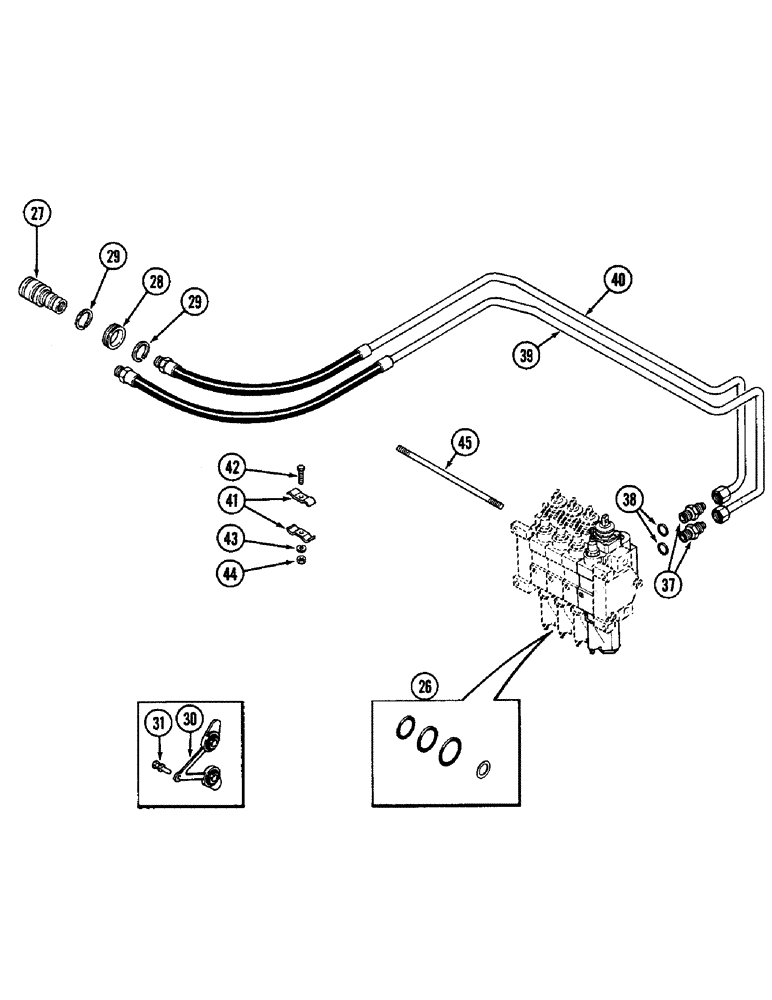

Запчасти Case IH 2090 (8-424) - REMOTE HYDRAULICS, REMOTE ATTACHMENT, NUMBER FOUR CIRCUIT (CONTD) (08) - HYDRAULICS

A67389

ATTACHMENT

- remote hydraulics, no. 4 circuit, Includes: Ref. 25 - 45 and 1 - 24 on Figure 8-422

1шт.

25

REF

INSTRUCTION

BODY - remote valve, See Figure 8-434

1шт.

26

A47576

KIT

- seal, with shims, See Figure 8-432

1шт.

27

REF

INSTRUCTION

COUPLING - remote hydraulic, female, See Figure 8-456

2шт.

28

A139805

RETAINER

- coupling

2шт.

29

A137976

SNAP RING,#150, 1.408", Ext

RING - snap, coupling to cab

4шт.

30

A145468

PLUG

- remote coupling dust

1шт.

31

A162364

FASTENER

- dust plug (Replaces A143300)

1шт.

37

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - tube, Includes: Ref. 38

2шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 5/8 x 3/32 inch (19 x 16 x 2 mm)

1шт.

39

A145907

HOSE

- no. 7 remote coupling

1шт.

40

A145908

HOSE

- no. 8 remote coupling

1шт.

41

A63323

CLAMP

-, Serial Range: tube-tube

2шт.

42

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

43

92-5

LOCK WASHER,5/16"

1шт.

44

9635082

NUT,5/16" - 18, Gr 5

1шт.

45

A147508

STUD

- valve mounting, 3/8 NC x 11-3/4 inch

3шт.
