Запчасти Case IH 2090 (8-416) - REMOTE HYDRAULICS, REMOTE ATTACHMENT, NUMBER THREE CIRCUIT, WITH LOCKOUT (CONTD) (08) - HYDRAULICS

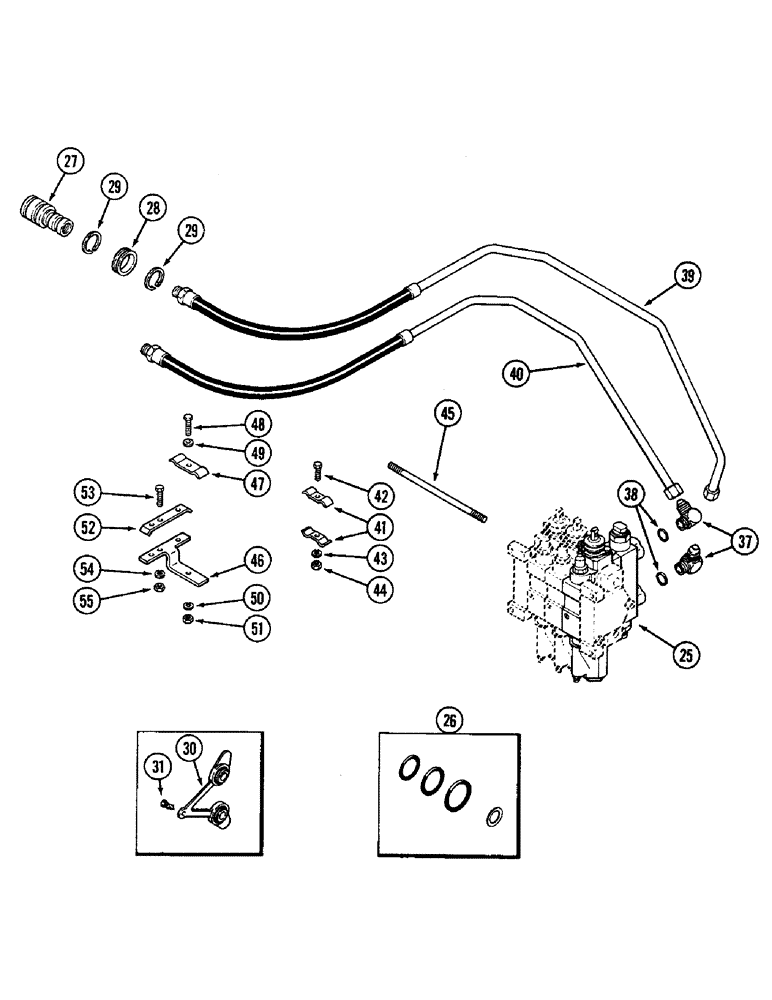

Схема запчастей Case IH 2090 - (8-416) - REMOTE HYDRAULICS, REMOTE ATTACHMENT, NUMBER THREE CIRCUIT, WITH LOCKOUT (CONTD) (08) - HYDRAULICS
48
51
53
29
37
30
28
49
50
38
41
29
26
46
39
31
43
42
47
40
45
27
54
52
44
55
25

Артикул

Название

Примечание

Количество

A165649

VALVE

ATTACHMENT - remote hydraulics, no. 3 circuit, Includes: Ref. 25 - 55 and 1 - 24 on Figure 8-414

1шт.

25

REF

INSTRUCTION

VALVE ASSEMBLY - lockout, See Figure 8-442

1шт.

26

A47576

KIT

- seal, shims, See Figure 8-432 (Order components)

1шт.

27

REF

INSTRUCTION

COUPLING - remote hydraulic, female, See Figure 8-456

2шт.

28

A139805

RETAINER

- coupling

2шт.

29

A137976

SNAP RING,#150, 1.408", Ext

RING - snap, coupling to cab

4шт.

30

A145468

PLUG

- remote coupling dust

1шт.

31

A162364

FASTENER

- dust plug

1шт.

37

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 90 degree, Incl. Ref. 38

2шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 5/8 x 3/32 inch (19 x 16 x 2 mm)

1шт.

39

A165387

HOSE

- no. 5 remote coupling

1шт.

40

A165388

HOSE

- no. 6 remote coupling

1шт.

41

A63323

CLAMP

-, Serial Range: tube-tube

2шт.

42

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

43

92-5

LOCK WASHER,5/16"

1шт.

44

9635082

NUT,5/16" - 18, Gr 5

1шт.

45

A147507

STUD

- valve mounting, 3/8 NC x 9-7/8 inch

3шт.

46

A147771

BRACKET

- tube clamp support

1шт.

47

A17542

CLAMP

- tube

1шт.

48

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

49

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

1шт.

50

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

51

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

52

A147772

CLAMP

- tube

1шт.

53

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

54

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

55

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

Выбрано товаров: 27
