Запчасти Case IH 2090 (8-408) - REMOTE HYDRAULICS, REMOTE ATTACHMENT, NUMBER THREE CIRCUIT (CONTD) (08) - HYDRAULICS

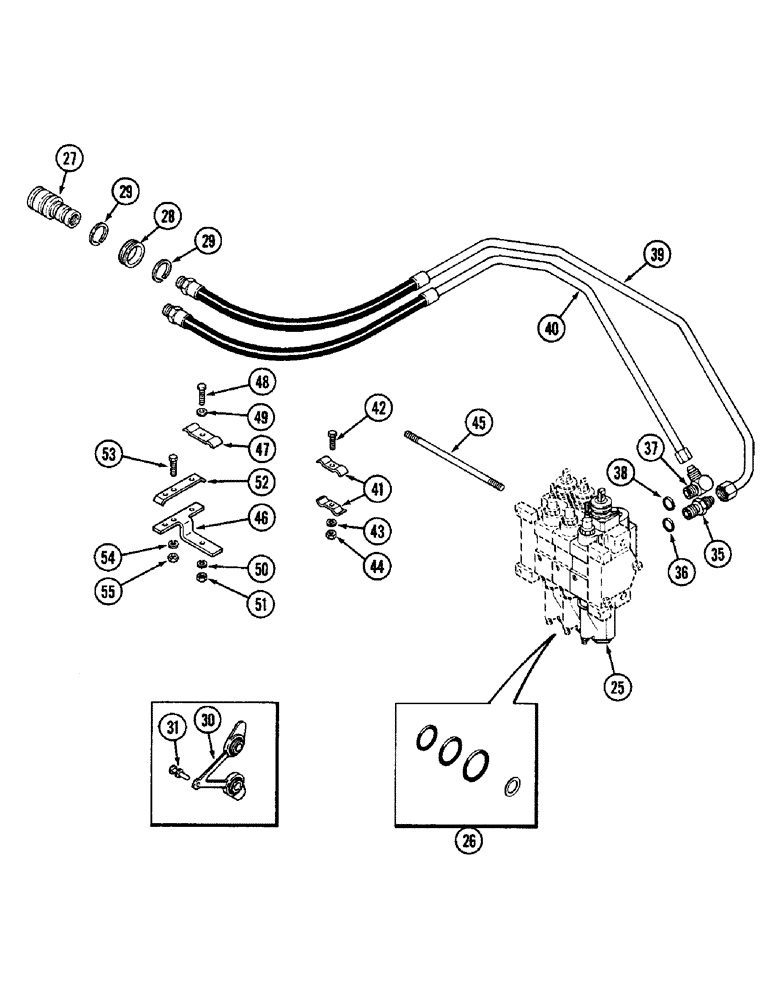

Схема запчастей Case IH 2090 - (8-408) - REMOTE HYDRAULICS, REMOTE ATTACHMENT, NUMBER THREE CIRCUIT (CONTD) (08) - HYDRAULICS
53
45
37
41
39
29
27
55
25
50
26
30
52
36
42
31
44
38
46
48
28
54
40
43
47
35
29
49
51

Артикул

Название

Примечание

Количество

A67388

ATTACHMENT

- remote hydraulics, no. 3 circuit, Includes: Ref. 25 - 55 and 1 - 24 on Figure 8-406

1шт.

25

REF

INSTRUCTION

BODY - remote valve, See Figure 8-434

1шт.

26

A47576

KIT

- seal, with shims, See Figure 8-432 (Order components)

1шт.

27

REF

INSTRUCTION

COUPLING - remote hydraulics, female, See Figure 8-456

2шт.

28

A139805

RETAINER

- coupling

2шт.

29

A137976

SNAP RING,#150, 1.408", Ext

RING - snap, coupling to cab

4шт.

30

A145468

PLUG

- remote coupling dust

1шт.

31

A162364

FASTENER

- dust plug (Replaces A143300)

1шт.

35

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - tube, Includes: Ref. 36

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 5/8 x 3/32 inch (19 x 16 x 2 mm)

1шт.

37

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 90 degree, Incl. Ref. 38

1шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 5/8 x 3/32 inch (19 x 16 x 2 mm)

1шт.

39

A145905

HOSE

- no. 5 remote coupling

1шт.

40

A145906

HOSE

- no. 6 remote coupling

1шт.

41

A63323

CLAMP

-, Serial Range: tube-tube

2шт.

42

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

43

92-5

LOCK WASHER,5/16"

1шт.

44

9635082

NUT,5/16" - 18, Gr 5

1шт.

45

A147507

STUD

- valve mounting, 3/8 NC x 9-7/8 inch

3шт.

46

A147771

BRACKET

- tube clamp support

1шт.

47

A17542

CLAMP

- tube

1шт.

48

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

49

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

1шт.

50

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

51

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

52

A147772

CLAMP

- tube

1шт.

53

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

54

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

55

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

Выбрано товаров: 29
