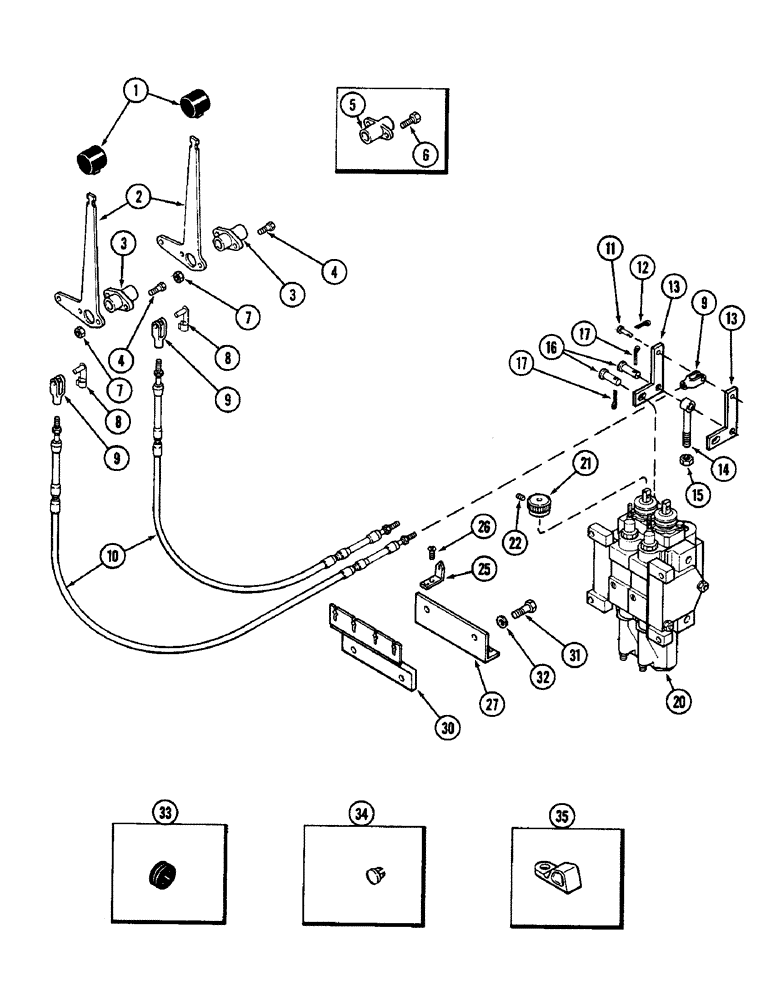

Запчасти Case IH 2090 (8-402) - REMOTE HYDRAULICS, CONTROL LINKAGE, TWO CIRCUIT SYSTEM (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
A139945
KNOB
- hand lever
2шт.
2
A141393
LEVER
- inner and outer, Includes: Ref. 3
2шт.
3
A160500
BUSHING,15.95mm ID x 25.4mm OD x 55.37mm L
BEARING - lever (Replaced A141371)
2шт.
4
113-3
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
(Used with A160500 bearing) Hex, 1/4"-20 x 3/4", G5, Full Thd
4шт.
5
A141371
BEARING
- pivot, hand lever (Order A160500)
1шт.
6
113-2
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
(Used with A141371 bearing) Hex, 1/4"-20 x 5/8", G5, Full Thd
4шт.
7
7770
NUT,Hex, 1/4 - 20, Cl 5
1/4"-20, G5
4шт.
8
A149683
PIN
- yoke spring
2шт.
9
213-1
ADJUSTABLE CLEVIS,#10-32
YOKE - cable
4шт.
10
A141402
CABLE
- control, Serial Range: lever-valve
2шт.
11
A67313
PIN
- bellcrank
2шт.
12
132-329
COTTER PIN,1/16" x 3/4"
1/16" x 3/4"
3шт.
13
A145598
LEVER
- bellcrank
4шт.
14
A145597
EYE
- bellcrank
2шт.
15
25-146
JAM NUT,Jam, 3/8"-16, G5
- hex jam, 3/8 inch NC
2шт.
16
141-54
CLEVIS PIN,3/8" x 1 1/16"
4шт.
17
132-320
COTTER PIN,3/32" x 3/4"
PIN, SPLIT (COTTER), 3/32" x 3/4"
4шт.
20
REF
INSTRUCTION
VALVE - remote, See Figure 8-432
1шт.
21
A160814
KNOB
- flow control (Replaces A145805)
2шт.
22
178-1108
SET SCREW,Hex Soc, #10-32 x 5/8"
SCREW - socket head cone point, no. 10-32 x 5/8 inch
2шт.
25
A64179
INDEX
- flow control
2шт.
26
187-1037
SELF-TAP SCREW,Slotted Pan Hd, #8 x 3/8"
SCREW - round head self-tapping, no. 8 x 3/8 inch
4шт.
27
A145804
BRACKET
- flow control index
1шт.
30
A145021
PLATE
- remote cable mounting
1шт.
31
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
2шт.
32
95-6
WASHER,3/8"
- 7/16 x 1 x 5/64 inch (11 x 25 x 2 mm)
2шт.
33
A141389
GROMMET
- cable (In cab floor)
1шт.
34
A162961
PLUG
- cable retaining, 3/4 inch diameter head (19 mm)
1шт.
35
A141542
LEVER
TAB - float lockout (In console cover)
1шт.
Выбрано товаров: 30
