Запчасти Case IH 2090 (8-400) - REMOTE HYDRAULICS, REMOTE ATTACHMENT, NUMBER TWO CIRCUIT (CONTD) (08) - HYDRAULICS

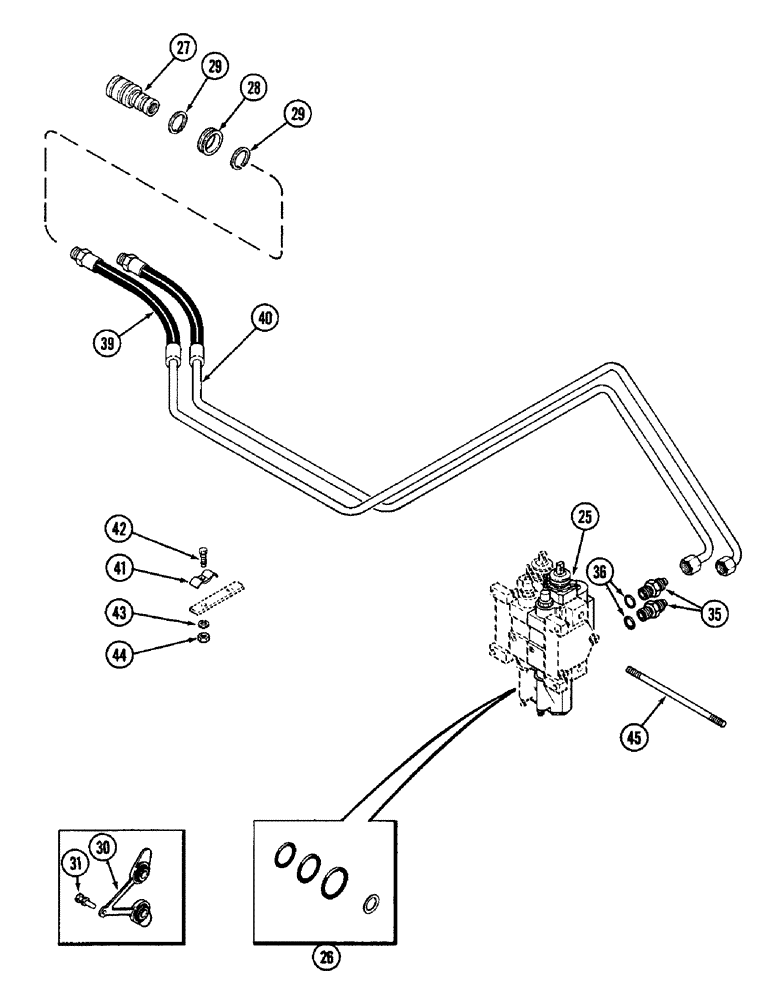

Схема запчастей Case IH 2090 - (8-400) - REMOTE HYDRAULICS, REMOTE ATTACHMENT, NUMBER TWO CIRCUIT (CONTD) (08) - HYDRAULICS
30
41
28
25
29
45
43
26
39
31
35
29
27
36
42
44
40

Артикул

Название

Примечание

Количество

A67385

ATTACHMENT

- remote hydraulics, no. 2 circuit (Machinery item), Includes: Ref. 25 - 45 and 1 - 24 on Figure 8-398

1шт.

25

REF

INSTRUCTION

BODY - remote valve, See Figure 8-434

1шт.

26

A47576

KIT

- seal, with shims

1шт.

27

REF

INSTRUCTION

COUPLING - remote hydraulic, female, See Figure 8-454

2шт.

28

A139805

RETAINER

- coupling

2шт.

29

A137976

SNAP RING,#150, 1.408", Ext

RING - snap, coupling to cab

4шт.

30

A145468

PLUG

- remote coupling dust

1шт.

31

A162364

FASTENER

- dust plug (Replaces A143300)

1шт.

35

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - tube, Includes: Ref. 36

2шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 5/8 x 3/32 inch (19 x 16 x 2 mm)

2шт.

39

A145903

HOSE

- to no. 3 coupling

1шт.

40

A145904

HOSE

- to no. 4 coupling

1шт.

41

A63323

CLAMP

-, Serial Range: tube-tube

1шт.

42

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

43

92-5

LOCK WASHER,5/16"

1шт.

44

9635082

NUT,5/16" - 18, Gr 5

1шт.

45

A147506

STUD

- valve mounting, 3/8 NC x 8 inch

3шт.

Выбрано товаров: 17
