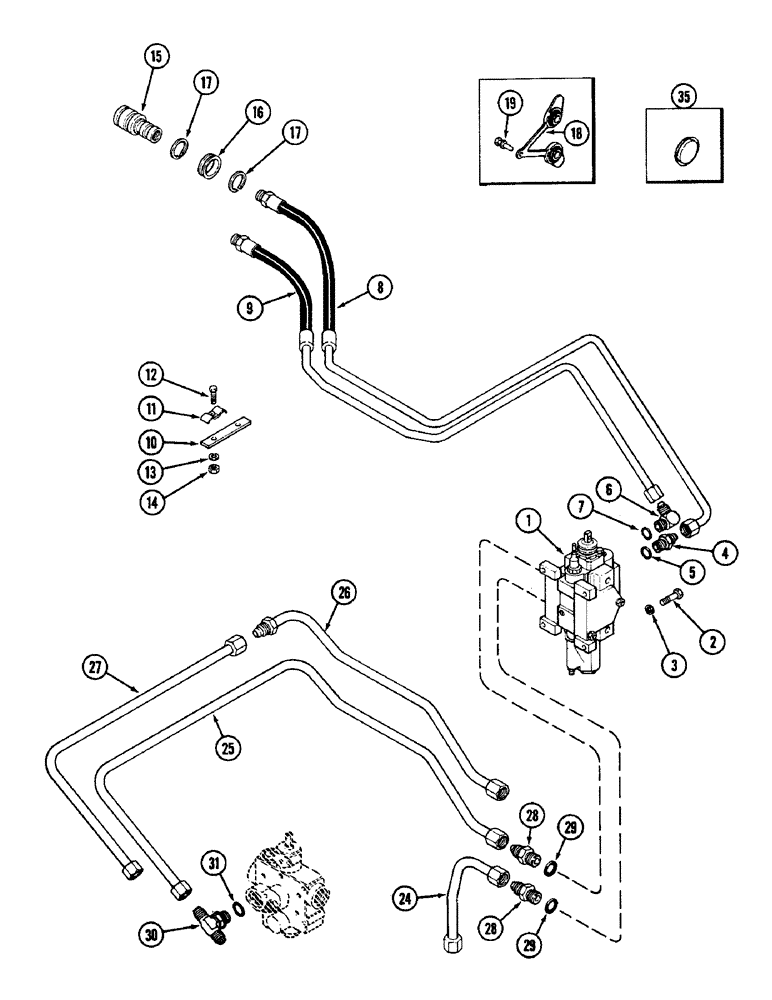

Запчасти Case IH 2090 (8-396) - REMOTE HYDRAULICS, VALVE, HOSES AND COUPLINGS, ONE CIRCUIT SYSTEM (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - 1 section, See Figure 8-430

1шт.

2

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - tube to valve, 5/8 tube x 7/8-14 inch, Includes: Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32 inch (19 x 24 x 2 mm)

1шт.

6

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 90 degree, tube to valve, 5/8 tube x 7/8-14 inch, Incl. Ref. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32 inch (19 x 24 x 2 mm)

1шт.

8

A145901

HOSE

- valve to no. 1 coupling

1шт.

9

A145902

HOSE

- valve to no. 2 coupling

1шт.

10

A141174

SUPPORT

- tube clamp

1шт.

11

A63323

CLAMP

- tube

1шт.

12

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

13

92-5

LOCK WASHER,5/16"

1шт.

14

9635082

NUT,5/16" - 18, Gr 5

1шт.

15

REF

INSTRUCTION

COUPLING - break-away, remote hose, See Figure 8-454

2шт.

16

A139805

RETAINER

- coupling

2шт.

17

A137976

SNAP RING,#150, 1.408", Ext

RING - snap, retainer

4шт.

18

A145468

PLUG

- dust, coupling

1шт.

19

A162364

FASTENER

- dust plug to cab (Replaces A143300)

1шт.

24

A147058

TUBE

- remote, Serial Range: valve-filter

1шт.

25

REF

INSTRUCTION

TUBE - regulator valve to remote valve (Order Ref. 26 & 27)

1шт.

26

A162503

TUBE

- regulator valve to remote valve (Left section for service) (Replaces A147309)

1шт.

27

A162502

TUBE

- regulator valve to remote valve (Right section for service) (Replaces A147310)

1шт.

28

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - tube, 3/4 inch tube x 1-1/16 inch-12, Incl. Ref. 29

3шт.

29

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 x 59/64 x 1/8 inch (19 x 23 x 3 mm)

1шт.

30

218-5185

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING ASSEMBLY - 3/4 tube x 3/4 inch tube x 1-1/16 inch, Includes: Ref. 31

1шт.

31

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 x 1-13/32 x 1/8 inch (27 x 36 x 3 mm)

1шт.

35

353-590

PLUG,1 7/8"

- button, 1-7/8 inch (48 mm) (Platform hose opening)

4шт.
