Запчасти Case IH 2090 (8-386) - HYDRAULICS, GEAR AND PISTON PUMP ASSEMBLY, TRANSMISSION SERIAL NUMBER 16210895 AND AFTER (CONTD) (08) - HYDRAULICS

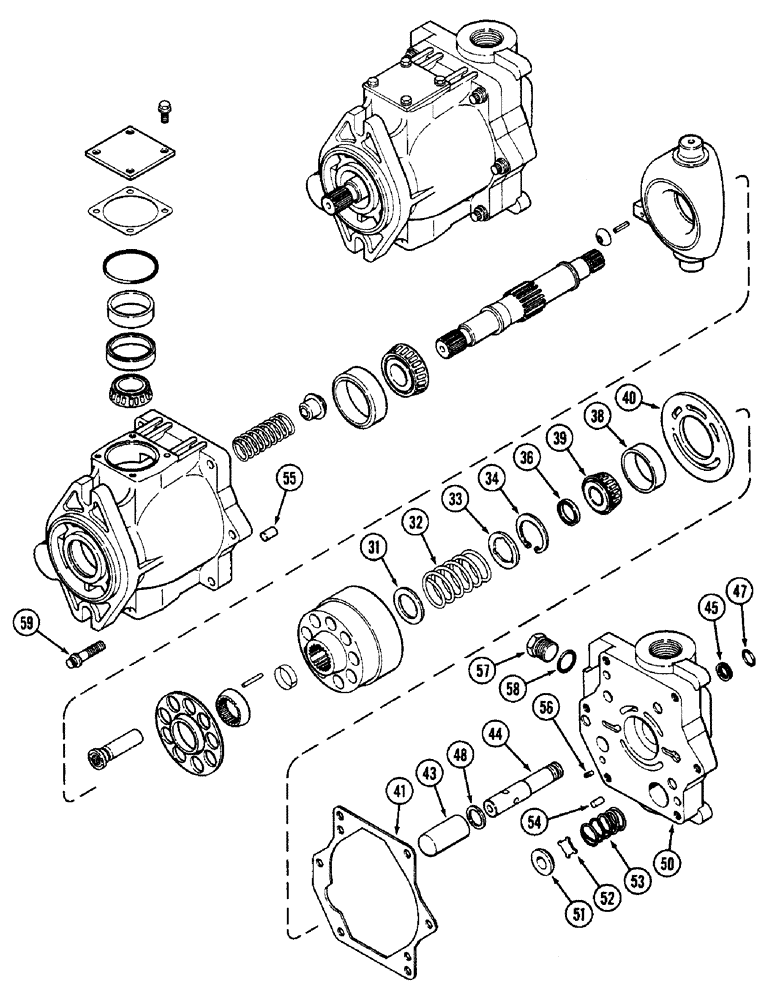

Схема запчастей Case IH 2090 - (8-386) - HYDRAULICS, GEAR AND PISTON PUMP ASSEMBLY, TRANSMISSION SERIAL NUMBER 16210895 AND AFTER (CONTD) (08) - HYDRAULICS
38
57
36
50
52
56
55
54
51
48
41
47
59
43
40
31
53
44
58
34
32
33
39
45

Артикул

Название

Примечание

Количество

A166504

PUMP

ASSEMBLY - complete, hydraulic, Includes: Ref. 31 - 59, 2 - 26 on Figure 8-382, 1 - 30 on Figure 8-384, 1 - 21 on Figure 3-388 and 1 - 24 on Figure 3-390

1шт.

1346425C1

REMAN-HYD PUMP

2090 SERIAL NUMBER 16210895 AND AFTER (1/79-12/83)

1шт.

1346426C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

31

A47299

WASHER

- spring, front

1шт.

32

A47298

SPRING

- cylinder block

1шт.

33

A47300

SPRING WASHER

WASHER - spring, rear

1шт.

34

NLS

NO LONGER SERVICED

Ring, Snap, , cylinder block 1.625", Int, #162

1шт.

A47303

KIT

- spacer, rear bearing, Includes: Ref. 36

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.139 inch (3.53 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.142 inch (3.61 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.145 inch (3.68 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.148 inch (3.76 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.151 inch (3.84 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.154 inch (3.91 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.157 inch (3.99 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.160 inch (4.06 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.163 inch (4.14 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.166 inch (4.22 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.169 inch (4.29 mm)

1шт.

38

FB14849

BEARING CUP

- bearing, 1-31/32 inch OD (50 mm)

1шт.

39

FB14850

ROLLER BEARING

CONE - bearing, 27/32 inch ID (21 mm)

1шт.

40

A47302

PLATE

- wear

1шт.

41

A47280

GASKET,0.53mm Thk

- body

1шт.

A47305

KIT

- piston rod, Includes: Ref. 43 - 45

1шт.

43

NSS

NOT SOLD SEPARAT

PISTON - (Reference no. A47338)

1шт.

44

NSS

NOT SOLD SEPARAT

ROD - (Reference no. A47339)

1шт.

45

A47340

RING

- snap, piston rod

1шт.

47

H756783

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

- 1/2 x 11/16 x 3/32 inch (13 x 17 x 2 mm)

1шт.

48

A47479

BUSHING

SPACER - piston limit

1шт.

50

A49434

PIPE

BLOCK - valve

1шт.

51

A47306

PLUG

SEAT - valve block

1шт.

52

A47307

VALVE

- check

1шт.

53

A47308

SPRING

- valve block

1шт.

54

A47309

PIN

- headless, 1/4 x 1/2 inch

1шт.

55

A47301

PIN

- housing to valve body

2шт.

56

221-1849

PLUG

- 1/8-27 inch pipe

1шт.

57

86512512

PLUG,7/8" - 14 ORB

Valve body Hex Hd, 7/8"-14 ORB

1шт.

58

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug, 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 mm)

1шт.

Part of seal and gasket kit P/N A47567

1шт.

59

166-47

12 PT SCREW,Flg, 3/8" - 16 x 1 1/2", Gr 8

SCREW - 12 point head, 3/8 NC x 1-1/2 inch

6шт.

A47567

KIT

- seal and gasket: Includes: Ref. 41, 47 and 58, See Figure 8-382

1шт.

Выбрано товаров: 41
