Запчасти Case IH 2090 (8-378) - HYDRAULICS, GEAR AND PISTON PUMP ASSEMBLY, PRIOR TO TRANSMISSION SERIAL NUMBER 16210895 (CONTD) (08) - HYDRAULICS

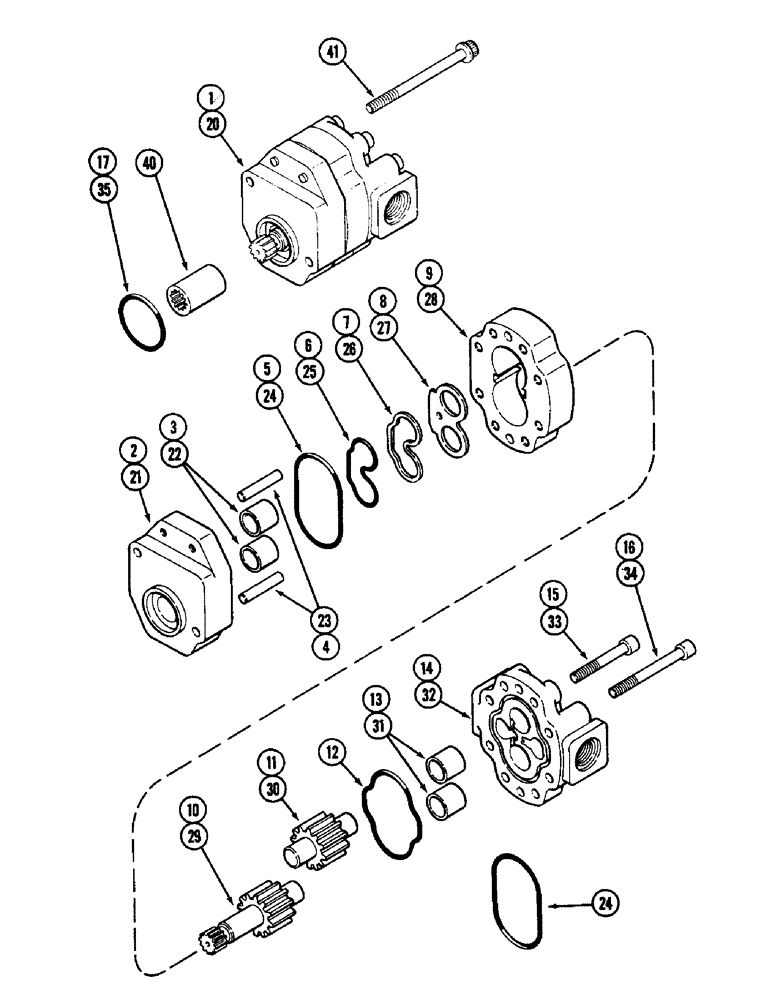

Схема запчастей Case IH 2090 - (8-378) - HYDRAULICS, GEAR AND PISTON PUMP ASSEMBLY, PRIOR TO TRANSMISSION SERIAL NUMBER 16210895 (CONTD) (08) - HYDRAULICS
29
27
16
38
28
31
17
20
35
8
13
24
1
15
4
41
33
2
32
12
40
26
23
10
21
14
5
11
6
9
24
25
1
22
3

№

Артикул

Название

Примечание

Количество

A163166

PUMP

ASSEMBLY - complete, hydraulic (Transmission serial no. 10265818 through 16210894), Includes: Ref. 1 - 41, 2 - 25 on Figure 8-372, 1 - 30 on Figure 8-374, 31 - 59 on Figure 8-376, and 1 - 22 on Figure 8-380

1шт.

1346425C1

REMAN-HYD PUMP

2090 PRIOR TO TRANSMISSION SERIAL NUMBER 16210895, Hydraulic Transmission Serial no. 10265818 though 16210894 (1/79-12/83), Reman for New PN A163166

1шт.

1346426C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

A160318

PUMP

ASSEMBLY - gear and piston (Prior to transmission serial no. 10265818) (Order A163166), Includes: Ref. 1 - 41, 2 - 25 on Figure 8-372, 1 - 30 on Figure 8-374, 31 - 59 on Figure 8-376, and 1 - 22 on Figure 8-380

1шт.

1

A47311

PUMP

ASSEMBLY - gear (Used with A160318 pump) (Order A47928), Includes: Ref. 2 - 17

1шт.

84372945R

REMAN-HYD PUMP

2090 PRIOR TO TRANSMISSION SERIAL NUMBER 16210895 (CONT'D) (1/79-12/83), Reman for New PN A47311

1шт.

84372945C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - front

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - front cover

2шт.

4

NSS

NOT SOLD SEPARAT

DOWELS - body locating

2шт.

5

NSS

NOT SOLD SEPARAT

O-RING - front cover

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - rubber

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - teflon

1шт.

8

NSS

NOT SOLD SEPARAT

PLATE - wear

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

10

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

11

NSS

NOT SOLD SEPARAT

GEAR - idler

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - rear cover

1шт.

13

NSS

NOT SOLD SEPARAT

BUSHING - rear cover

2шт.

14

NSS

NOT SOLD SEPARAT

COVER - rear

1шт.

15

NSS

NOT SOLD SEPARAT

SCREW - short

6шт.

16

NSS

NOT SOLD SEPARAT

SCREW - long

4шт.

17

F98069

O-RING

- gear pump to piston pump

1шт.

A47428

KIT

- seal, gear pump

1шт.

20

A47928

PUMP

ASSEMBLY - gear (Used with A163166 pump), Includes: Ref. 21 - 35

1шт.

84372945R

REMAN-HYD PUMP

2090 PRIOR TO TRANSMISSION SERIAL NUMBER 16210895 (CONT'D) (1/79-12/83), Reman for New PN A47928

1шт.

84372945C

CORE-HYDRAULIC PUMP

Return Number

1шт.

21

NSS

NOT SOLD SEPARAT

COVER - front

1шт.

22

NSS

NOT SOLD SEPARAT

BUSHING - front cover

2шт.

23

NSS

NOT SOLD SEPARAT

DOWELS - body locating

2шт.

24

NSS

NOT SOLD SEPARAT

SEAL - front and rear cover

2шт.

25

NSS

NOT SOLD SEPARAT

SEAL - rubber

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL - teflon

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE - wear

1шт.

28

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

29

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

30

NSS

NOT SOLD SEPARAT

GEAR - idler

1шт.

31

NSS

NOT SOLD SEPARAT

BUSHING - rear cover

2шт.

32

NSS

NOT SOLD SEPARAT

COVER - rear

1шт.

33

NSS

NOT SOLD SEPARAT

SCREW - short

6шт.

34

NSS

NOT SOLD SEPARAT

SCREW - long

4шт.

35

F98069

O-RING

- gear pump

1шт.

A47643

SEAL

KIT - seal, gear pump

1шт.

40

A47312

COUPLING, BREAK AWAY

COUPLING - gear pump to valve block

1шт.

41

A47412

SCREW,M8 x 100mm

- Ferry cap, M8 x 100 mm

2шт.

Выбрано товаров: 45
