Запчасти Case IH 2090 (8-370) - HYDRAULICS, TRANSMISSION LUBE TUBES, WITH MECHANICAL SHIFT (08) - HYDRAULICS

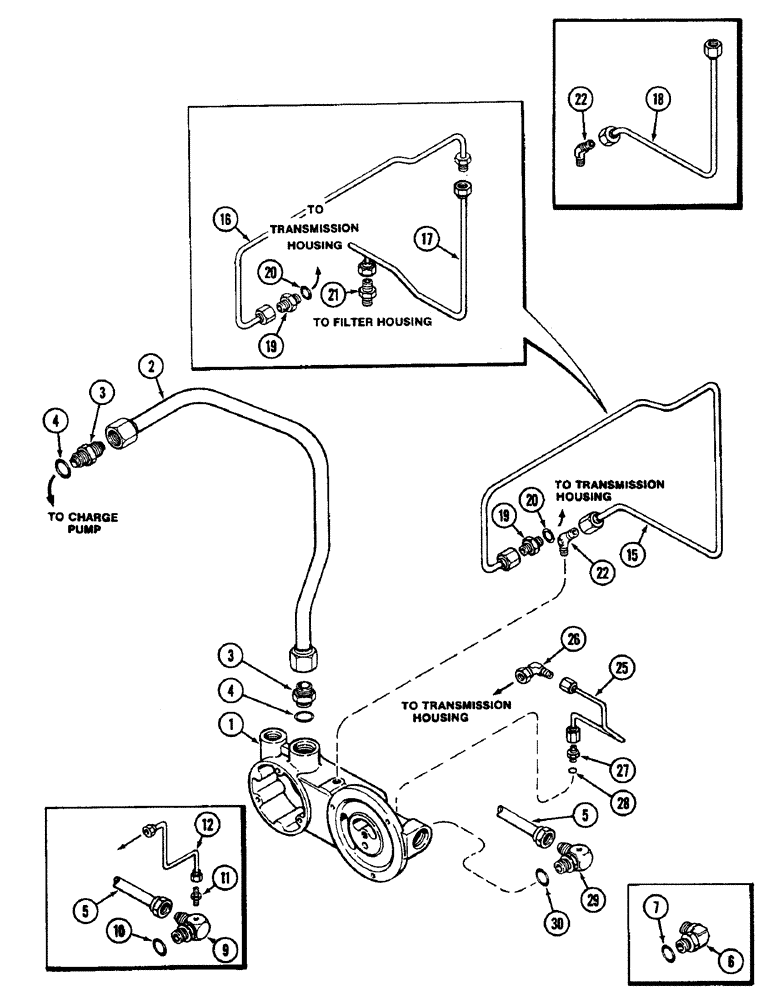

Схема запчастей Case IH 2090 - (8-370) - HYDRAULICS, TRANSMISSION LUBE TUBES, WITH MECHANICAL SHIFT (08) - HYDRAULICS
11
4
16
1
10
17
26
9
19
21
5
3
22
2
22
12
27
25
20
20
29
28
30
6
4
18
19
15
5
7
3

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

HOUSING - filter, See Figure 8-366

1шт.

2

A160224

TUBE

- charge pump, transmission

1шт.

3

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR ASSEMBLY - 1 tube x 1-5/16-12 inch, Incl. Ref. 4

2шт.

4

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1-13/32 x 1/8 inch (30 x 36 x 3 mm)

1шт.

5

REF

INSTRUCTION

TUBE - steering pump, See Figure 8-364

1шт.

6

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 5/8 tube x 7/8-14 inch (Prior to transmission serial no. 10204528), Incl. Ref. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 mm)

1шт.

9

A154753

FITTING

ELBOW ASSEMBLY - 5/8 tube x 7/8-14 inch (Transmission serial no. 10204528 to 10266204), Includes: Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 mm)

1шт.

11

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - 1/4 tube x 7/16-20 inch (Transmission serial no. 10204528 to 10266204)

1шт.

12

A154752

TUBE

- lube, transmission countershaft (Transmission serial no., Serial Range: 10204528-10266204)

1шт.

15

REF

INSTRUCTION

TUBE - lube, reverse idler gear (Production only) (Order Ref. 16 & 17)

1шт.

16

A147306

PIPE

TUBE - lube, right section (Service only)

1шт.

17

A160805

TUBE - lube, left section (Service only)

1шт.

18

A147305

PIPE

TUBE - lube, left section (Service only) (Order A160805 and 218-443)

1шт.

19

218-5044

HYD CONNECTOR,9/16" - 18 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - 3/8 tube x 1-1/16-12 inch (To transmission case), Includes: Ref. 10

1шт.

20

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1-13/32 x 1/8 inch (30 x 36 x 3 mm)

1шт.

21

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - tube

1шт.

22

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

(3/8" tube) (To filter housing) 45º, 9/16-18" 37º x 1/4"-18, NPTF

1шт.

25

A164078

TUBE

- lube, transmission countershaft (Replaces A160803) (Transmission serial no. 10266890 and after)

1шт.

On tractors with transmission serial no. 10266204 to 10266890, order Ref. 25 & 26.

1шт.

26

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

- 90 degree swivel, 1/4 tube x 7/16-20 inch thread (Transmission serial no. 10266890 and after)

1шт.

27

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR ASSEMBLY - straight, 1/4 tube x 7/16-20 inch thread (Transmission serial no. 10266204 and after), Incl. Ref. 28

1шт.

28

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 1/2 x 5/64 inch (9 x 13 x 2 mm)

1шт.

29

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 90 degree, 5/8 tube x 7/8 inch thread (Transmission serial no. 10266204 and after), Incl. Ref. 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 4 x 2 mm)

1шт.
