Запчасти Case IH 2090 (8-368) - HYDRAULICS, TRANSMISSION LUBE TUBES, WITH POWER SHIFT (08) - HYDRAULICS

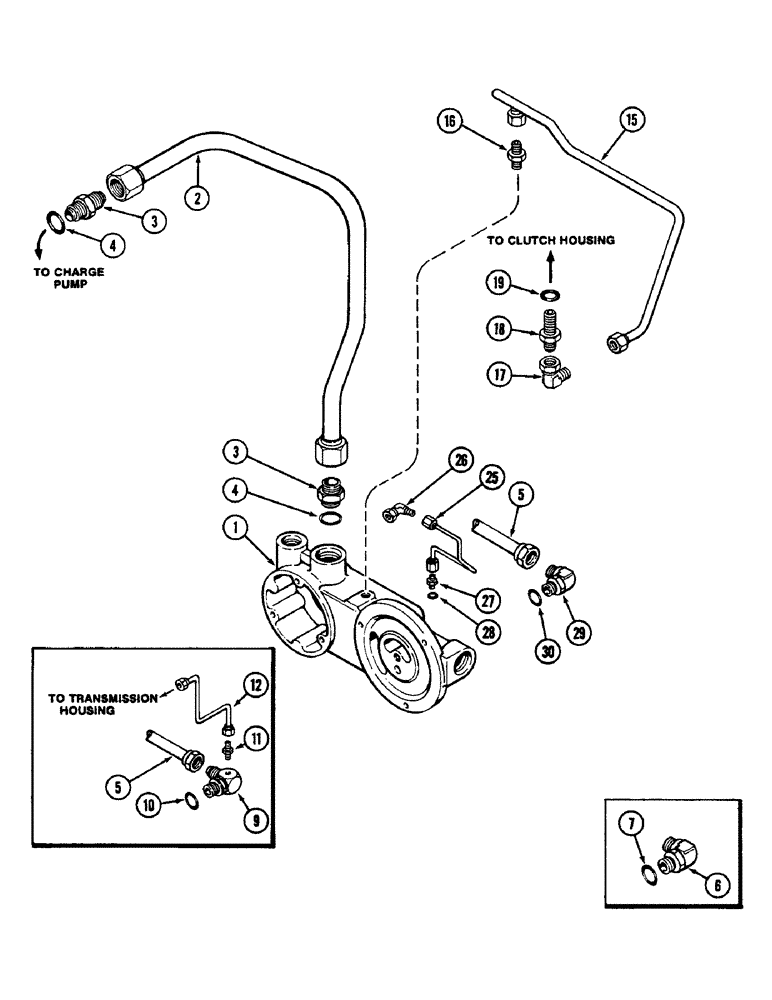

Схема запчастей Case IH 2090 - (8-368) - HYDRAULICS, TRANSMISSION LUBE TUBES, WITH POWER SHIFT (08) - HYDRAULICS
25
4
17
5
26
30
3
5
28
19
6
3
27
15
18
7
16
10
12
1
29
4
11
9
2

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

HOUSING - filter, See Figure 8-366

1шт.

2

A160224

TUBE

- charge pump, transmission

1шт.

3

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR ASSEMBLY - 1 tube x 1-5/16-12 inch, Incl. Ref. 4

2шт.

4

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1-13/32 x 1/8 inch (30 x 36 x 3 mm)

1шт.

5

REF

INSTRUCTION

TUBE - steering pump, See Figure 8-364

1шт.

6

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 5/8 tube x 7/8-14 inch (Prior to transmission serial no. 10204528), Incl. Ref. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 mm)

1шт.

9

A154753

FITTING

ELBOW ASSEMBLY - 5/8 tube x 7/8-14 inch (Transmission serial no. 10204528 to 10266204), Includes: Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 mm)

1шт.

11

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - 1/4 tube x 7/16-20 inch (Transmission serial no. 10204528 to 10266204)

1шт.

12

A154752

TUBE

- lube, transmission countershaft (Transmission serial no., Serial Range: 10204528-10266204)

1шт.

15

A160797

TUBE

- lube, C1 clutch (Prior to transmission serial no. 10266204, also order Ref. 16) (Replaces A160172)

1шт.

15

A166793

TUBE

- lube, C1 clutch (MFD tractors)

1шт.

16

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - straight, to filter housing

1шт.

17

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 1/2 tube x 3/4 inch swivel (To clutch housing)

1шт.

18

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

- bulkhead, 1/2 tube x 3/4-16 inch

1шт.

25

A164078

TUBE

- lube, transmission countershaft (Replaces A160803) (Transmission serial no. 10266890 and after)

1шт.

On tractors with transmission serial no. 10266204 to 10266890, order Ref. 25 & 26.

1шт.

26

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

- 90 degree swivel, 1/4 tube x 7/16-20 thread (Transmission serial no. 10266890 and after)

1шт.

27

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR ASSEMBLY - straight, 1/4 tube x 7/16-20 inch thread (Transmission serial no. 10266204 and after), Incl. Ref. 28

1шт.

28

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 1/2 x 5/64 inch (9 x 13 x 2 mm)

1шт.

29

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 90 degree, 5/8 tube x 7/8 inch thread (Transmission serial no. 10266204 and after), Incl. Ref. 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 4 x 2 mm)

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 mm)

1шт.

Выбрано товаров: 24
