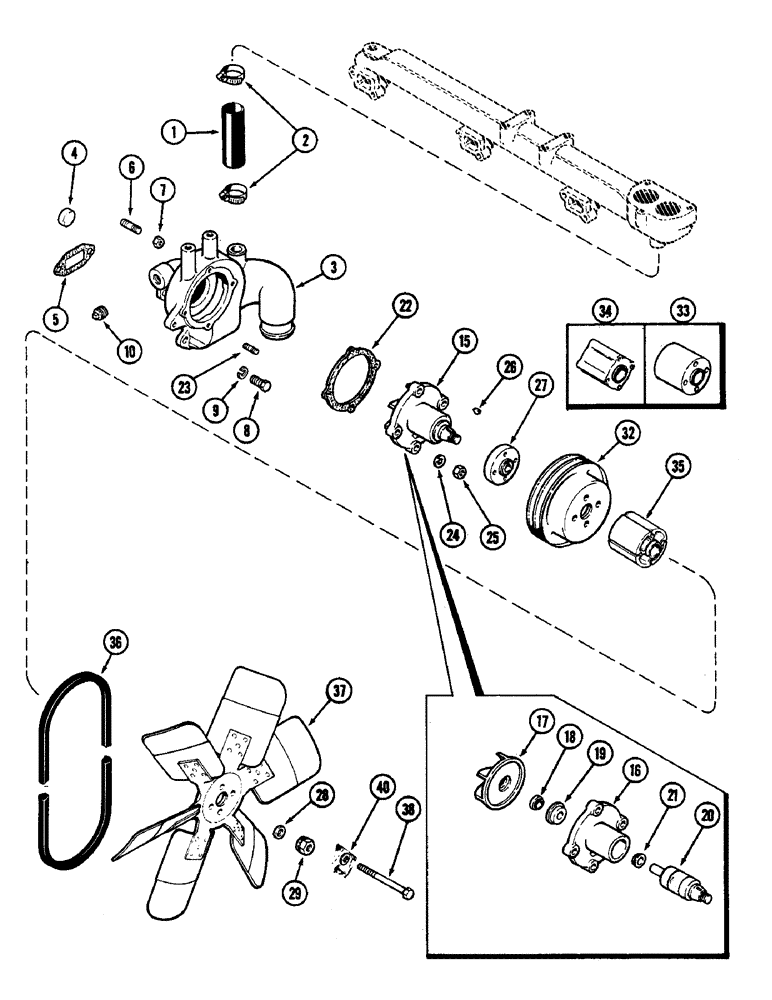

Запчасти Case IH 2090 (2-08) - WATER PUMP, WITH KEY WAY SHAFT, 504BD DIESEL ENGINE (02) - ENGINE

1

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

- water pump bypass

1шт.

2

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch (30 to 44 mm)

2шт.

3

A148968

HOUSING

BODY ASSEMBLY - water pump, Includes: Ref. 4

1шт.

4

A58568

PLUG,Cup, 1 3/8", Stainless

- 1-3/8 inch cup (35 mm)

1шт.

5

A58649

GASKET

-, Serial Range: body-block

1шт.

6

G102128

BOLT

- 3/8 NC x 1-1/2 inch

2шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

8

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

10

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - 1/2 inch PT, square head

1шт.

15

A61266

PUMP

ASSEMBLY - water (Order Ref. 15, 28 and 29 on Figure 2-10), Includes: Ref. 16 - 21

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING - pump (Reference no. A58642)

1шт.

17

A61267

IMPELLER

- water (Cast iron)

1шт.

Ref #17 - (3.625" O.D.) 02/12/96

1шт.

18

A34000

SEAL

SEAT - impeller

1шт.

19

A142499

SEAL

- pump shaft

1шт.

20

A154521

SHAFT

ASSEMBLY - with bearing (Order Ref. 20, 28 and 29 on Figure 2-10), Includes: Ref. 21

1шт.

21

Q829325

BUSHING

- water

1шт.

22

A58646

GASKET

-, Serial Range: pump-body

1шт.

23

A166044

STUD

- 3/8 NC x 1-7/16 inch

4шт.

24

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

26

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

27

A146221

HUB

- fan and, Serial Range: pulley-pump

1шт.

28

A58651

WASHER

- 17/32 x 1-1/16 x 3/32 inch (13 x 27 x 2 mm)

1шт.

29

131-1106

LOCK NUT,1/2"-20, GB

NUT, LOCK, 1/2"-20, GB

1шт.

32

A146982

PULLEY

- fan driven

1шт.

33

A147237

BUSHING

SPACER - fan blade, 3-1/8 inch wide (79 mm) (Order A76913) (Order A161678)

1шт.

34

A76913

BUSHING

SPACER - fan blade, 3-1/64 inch wide (77 mm) (Replaces A147237) (Prior to P.I.N. 9908447) (Order A161678)

1шт.

35

A161678

BUSHING

SPACER - fan blade, 3-1/8 inch wide (80 mm) (P.I.N. 9908447 and after)

1шт.

36

A145325

SET OF BELTS,60.00" L

SET OF 2 BELTS , Fan, Matched 60.00" L

1шт.

36

A57130

BELT,60.00" L

Fan, Single without Air Conditioning 60.00" L

1шт.

37

A164663

FAN

- 22 inch (556 mm) (Replaces A145323)

1шт.

38

26-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8

- hex, 3/8 NC x 4-1/2 inch (Use with A147237 spacer)

4шт.

38

26-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 8

- hex, 3/8 NC x 4-1/4 inch (Grade 8) (Use with A76913 spacer)

4шт.

38

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

(Use with A161678 spacer) Hex, 3/8"-16 x 4 1/2", G5

4шт.

40

A50820

WASHER

- hardened, 25/64 x 3/4 x 7/64 inch (10 x 19 x 3 mm)

4шт.

331-509

PENETRATING OIL

RUST INHIBITOR - 1 pint (0.47 litre)

1шт.
