Запчасти Case IH 2090 (8-366) - HYDRAULICS, OIL FILTER AND SCREEN (08) - HYDRAULICS

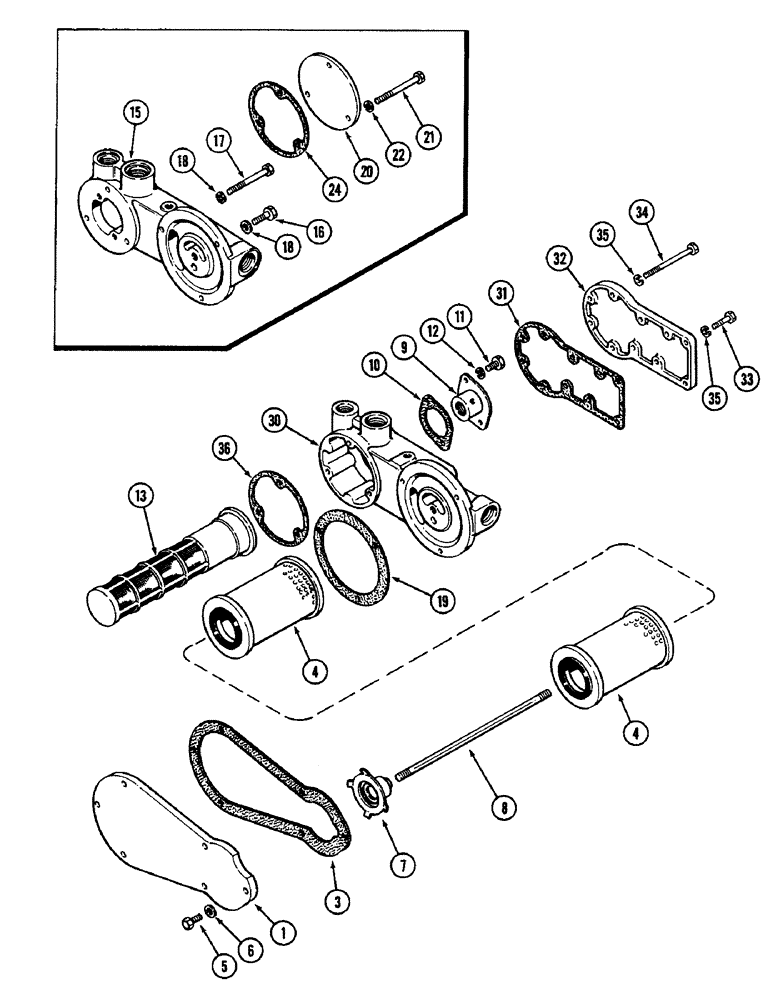

Схема запчастей Case IH 2090 - (8-366) - HYDRAULICS, OIL FILTER AND SCREEN (08) - HYDRAULICS
10
34
12
4
6
1
18
4
5
36
3
19
18
11
35
9
35
31
20
15
8
30
21
17
24
22
32
33
13
7
16

Артикул

Название

Примечание

Количество

1

A141407

GASKET

COVER - right side

1шт.

3

A141408

GASKET

- cover

1шт.

4

A46403

HYDRAULIC OIL FILTER

KIT - filter element (Set of 2)

1шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

6

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- hardened

6шт.

7

A164424

VALVE

- by-pass (Replaces A147919)

1шт.

8

A147922

STUD

- filter element, 1/2 NC x 14-1/4 inch (Order H237750)

1шт.

9

A63343

REGULATOR

- pressure, filter oil

1шт.

10

A147062

GASKET

-, Serial Range: regulator-housing

1шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

A142025

SCREEN

- oil inlet

1шт.

15

A147021

HOUSING

- filter cover, left side (Prior to transmission serial no. 10266204) (Order Ref. 30 - 35)

1шт.

16

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

17

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

1шт.

18

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- hardened

3шт.

19

A149986

GASKET

- housing

1шт.

20

A142300

COVER

- filter housing (Prior to transmission serial no. 10266204)

1шт.

21

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 4 inch

3шт.

22

92-6

LOCK WASHER,3/8"

6шт.

24

A149985

GASKET

- housing cover (Prior to transmission serial no. 10266204)

1шт.

30

A161435

HOUSING

- filter cover, left side (Transmission serial no. 10266204 and after) (Replaces A147021)

1шт.

31

A161436

GASKET

- housing cover

1шт.

32

A161437

COVER

- filter housing (Transmission serial no. 10266204 and after)

1шт.

33

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- hex, 3/8 NC x 1-3/8 inch

8шт.

34

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

- hex, 3/8 NC x 4-1/4 inch

4шт.

35

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- hardened

12шт.

36

A149985

GASKET

- housing

1шт.

Выбрано товаров: 28
