Запчасти Case IH 2090 (8-358) - HYDRAULICS, POWER SHIFT CONTROL VALVE ASSEMBLY (08) - HYDRAULICS

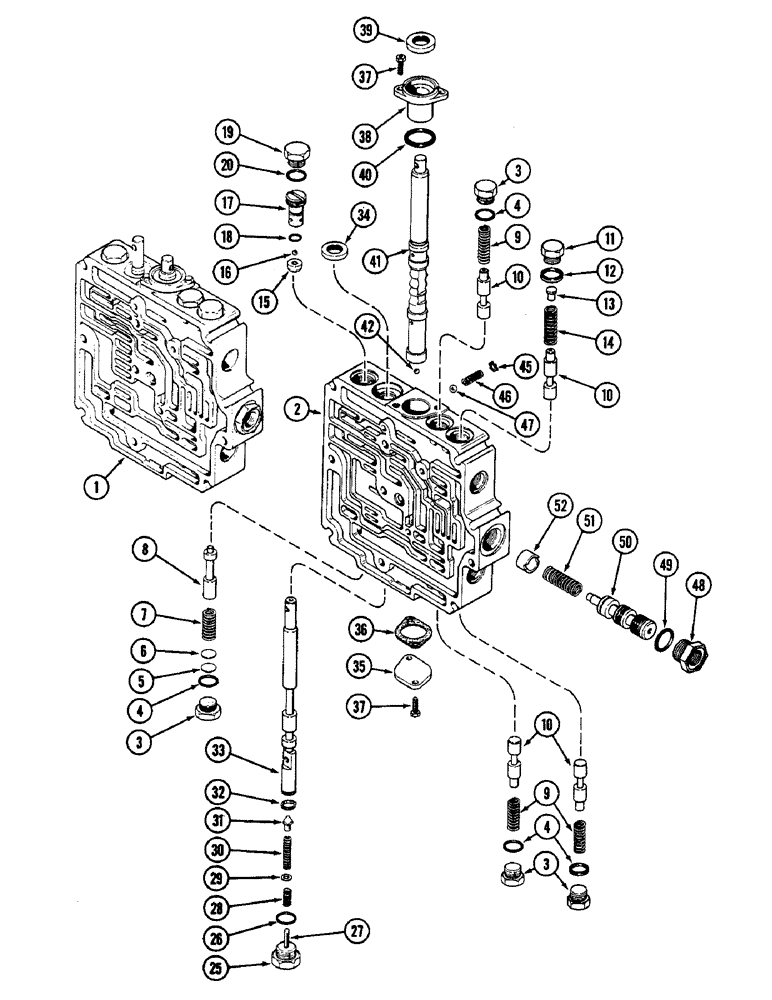

Схема запчастей Case IH 2090 - (8-358) - HYDRAULICS, POWER SHIFT CONTROL VALVE ASSEMBLY (08) - HYDRAULICS
52
25
27
10
4
4
17
7
47
49
10
6
31
3
15
28
12
18
36
48
9
39
19
40
37
32
3
8
37
5
50
3
34
33
51
11
29
14
38
26
13
35
1
46
9
20
42
41
2
16
4
45
30
10

Артикул

Название

Примечание

Количество

1

A148160

VALVE

ASSEMBLY - power shift control, Includes: Ref. 2 - 52

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve (Reference no. A62635)

1шт.

3

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Assy, Pilot and pressure regulator spool (Replaces A62564), Incl Ref 4 Hex Soc, 3/4"-16 ORB

4шт.

5

A37554

SHIM,.0269" Thk

Pressure regulator (0.683 mm) .0269" Thk

1шт.

6

A37555

SHIM,.0120" Thk

Pressure regulator (0.305 mm) .0120" Thk

1шт.

7

A58436

SPRING

- regulator, 1-3/8 inch (35 mm) free length

1шт.

8

A146644

SPOOL

PLUNGER - pressure regulator

1шт.

9

A58271

SPRING

- pilot spool, 1-49/64 inch (45 mm) free length

3шт.

10

A146590

SPOOL

- pilot

4шт.

11

A62641

PLUG

ASSEMBLY - pilot spool bore, Includes: Ref. 12

1шт.

13

A62640

STOP

- pilot spool

1шт.

14

A66692

SPRING

- pilot spool, 1-23/32 inch (44 mm) free length

1шт.

15

A58441

SEAT

- ball, shutttle valve

1шт.

16

211-7

BALL,1/4" Dia

- shuttle valve (6 mm) 1/4" Dia

1шт.

17

A154804

SLEEVE

- shuttle valve (Replaces A58440)

1шт.

18

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- sleeve, 3/32 x 1/2 x 1/16 inch (2 x 13 x 2 mm) (Order N8537)

1шт.

Part of seal kit, P/N A42885

1шт.

19

86512512

PLUG,7/8" - 14 ORB

Assy, Shuttle valve bore Hex Hd, 7/8"-14 ORB

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 x 3/32 inch (16 x 19 x 2 mm)

1шт.

A42887

KIT

- modulator (Order components), Includes: Ref. 25 - 31

1шт.

25

A61985

PLUG

ASSEMBLY - modulator, Includes: Ref. 26

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 x 3/4 x 3/32 inch (16 x 19 x 2 mm)

1шт.

27

NSS

NOT SOLD SEPARAT

PIN - spring guide

1шт.

28

A61988

SPRING

- secondary, 1-43/64 inch (42 mm) free length

1шт.

29

A61989

WASHER,4.95mm ID x 9.27mm OD x 1.02mm Thk

- spring guide

1шт.

A60155

SPRING

POINT ASSEMBLY, Includes: Ref. 30 & 31

1шт.

30

NSS

NOT SOLD SEPARAT

SPRING - primary, 1-39/64 inch (41 mm) free length (Reference no. A61990)

1шт.

31

NSS

NOT SOLD SEPARAT

POINT - modulator (Reference no. A61991)

1шт.

32

G46176

SNAP RING,#56, Ext

Ring, Snap, , clutch control spool #56, Ext

1шт.

33

A62636

SPOOL

- clutch control

1шт.

34

A37558

SEAL,14.27mm ID x 28.7mm OD x 6.73mm Thk

- clutch control spool

1шт.

35

A58429

COVER

- selector spool bore

1шт.

36

A66110

GASKET

- cover

1шт.

37

61-412

HEX SOC SCREW,1/4"-20 x 3/4"

- socket head cap, 1/4 NC x 3/4 inch

4шт.

38

A62839

SLEEVE

- selector spool

1шт.

39

A50421

OIL SEAL,19.05mm ID x 31.95mm OD x 6.73mm Thk

- oil, selector spool

1шт.

Part of seal kit, P/N A42885

1шт.

40

A59066

O-RING,1.239" ID x 1.379" OD

- cover, 1-1/4 x 1-3/8 x 1/16 inch (32 x 35 x 2 mm)

1шт.

Part of seal kit, P/N A42885

1шт.

41

A60550

SPOOL

ASSEMBLY - selector, Includes: Ref. 42

1шт.

42

NSS

NOT SOLD SEPARAT

BALL - 9/16 inch (14 mm) diameter (Reference no. 211-8)

1шт.

45

A58439

RETAINER

- retard check spring

2шт.

46

A58438

SPRING

- retard check, 15/16 inch (24 mm) free length

2шт.

47

211-207

BALL

- 9/32 inch (7 mm) diameter

2шт.

48

A63293

BUSHING

- reducer, 1-1/16-12 to 3/4-16 inch

1шт.

49

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 7/64 inch (19 x 23 x 3 mm)

1шт.

50

A146637

SPOOL

- reverse lock out

1шт.

51

A58432

SPRING

- spool, 1-13/16 inch (46 mm) free length

1шт.

52

A153140

SLEEVE

- spool stop (Replaces A61033)

1шт.

A42885

SEAL KIT

- seal, Includes: Ref. 4, 12, 18, 34, 39, 40

1шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 1/2 x 5/64 inch (16 x 13 x 2 mm)

1шт.

Part of seal kit, P/N A42885

1шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 1/2 x 5/64 inch (16 x 13 x 2 mm)

1шт.

Part of seal kit, P/N A42885

1шт.

Выбрано товаров: 54
