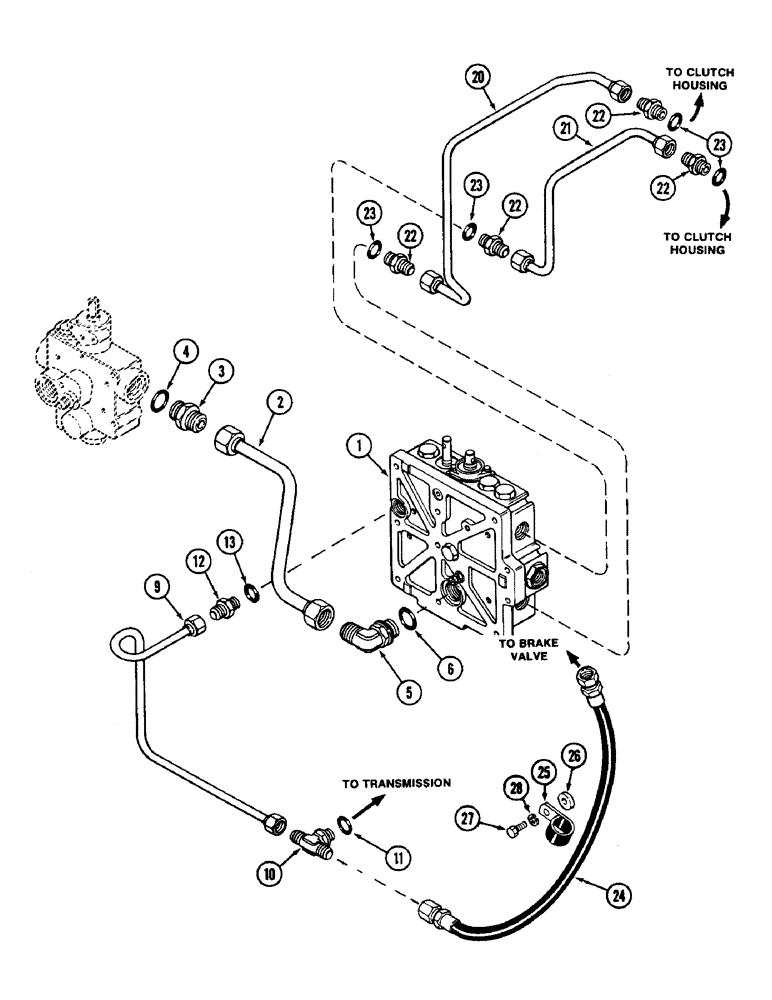

Запчасти Case IH 2090 (8-356) - HYDRAULICS, POWER SHIFT CONTROL CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, power shift, See Figure 8-358

1шт.

2

A143816

TUBE

- supply, regulator valve to control valve

1шт.

3

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - regulator valve, 3/4 tube x 1-1/16-12 inch, Incl. Ref. 4

1шт.

4

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 7/64 inch (24 x 29 x 3 mm)

1шт.

5

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSEMBLY - control valve, 3/4 tube x 1-1/16-12 inch, Incl. Ref. 6

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 7/64 inch (24 x 29 x 3 mm)

1шт.

9

A143815

TUBE

- transmission sump to control valve

1шт.

10

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

FITTING ASSEMBLY - transmission case, 1/2 tube x 3/4-16 inch, Includes: Ref. 11

1шт.

12

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - control valve, 1/2 tube x 3/4-16 inch, Incl. Ref 13

1шт.

20

A139304

TUBE

- fill, (C1) clutch

1шт.

21

A139305

TUBE

- fill, (C4) clutch

1шт.

22

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, 1/2 tube x 3/4-16 inch, Incl. Ref 23

4шт.

24

D57701

HOSE

- brake valve to sump tee

1шт.

25

R21385

CLAMP

- hose (Replaces 49831)

2шт.

26

A160640

SPACER - clamp to side rail (If equipped)

1шт.

27

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

28

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64 inch (11 x 25 x 2 mm)

1шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 mm)

1шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 mm)

1шт.

23

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 mm)

1шт.
