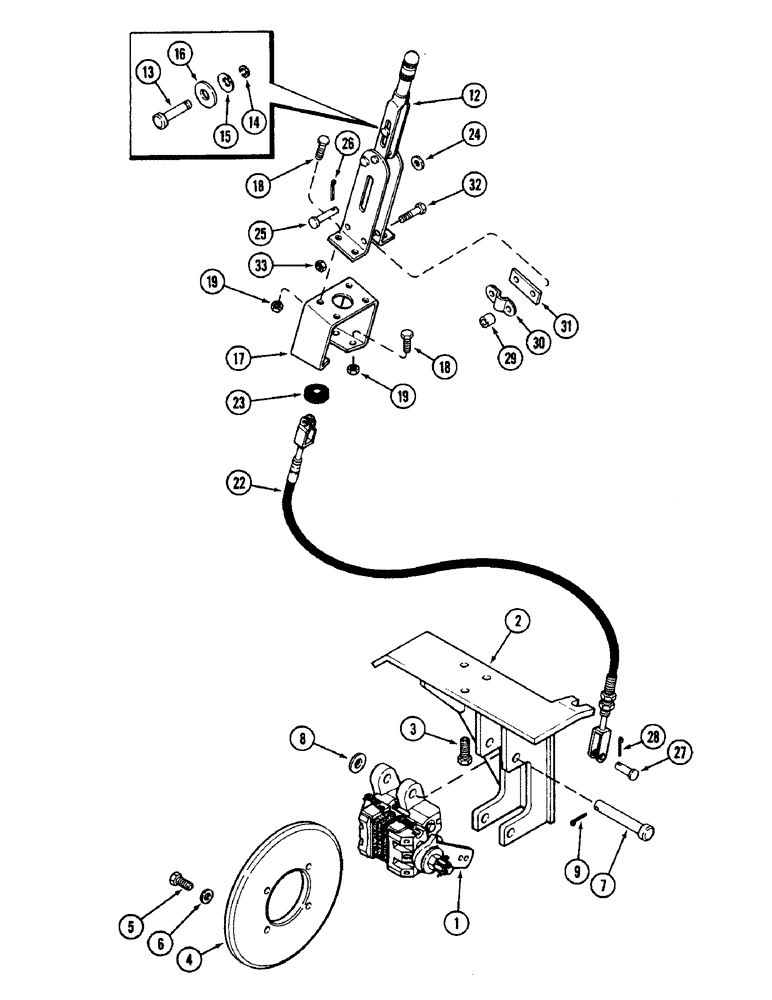

Запчасти Case IH 2090 (7-348) - HAND BRAKE, MFD TRACTORS (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
A156788
BRAKE
ASSEMBLY - mechanical caliper disc, See Figure 7-350
1шт.
2
A158625
BRACKET
- disc brake
1шт.
3
113-417
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
Bracket to clutch housing Hex, 1/2"-13 x 1 1/4", G5, Full Thd
3шт.
4
A156871
DISC
- parking brake
1шт.
6
A50820
WASHER
- mounting bolt
4шт.
7
A158671
PIN
- brake support clevis
2шт.
8
195-541
WASHER,5/8", SAE
- 21/32 x 1-5/16 x 7/64 inch (17 x 33 x 3 mm)
2шт.
12
A75744
LEVER
- hand brake, Includes: Ref. 13 - 16
1шт.
13
A42204
PIN
- lever
1шт.
14
C14625
RING
- lever pin retaining
1шт.
15
D47261
WASHER
- spring (Order A55934)
1шт.
16
95-5
WASHER,3/8" x 7/8" x .083"
- 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)
1шт.
17
A164548
SUPPORT
- hand brake (Order A176453), Includes: Ref. 18
1шт.
18
113-118
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
Support to lever Hex, 5/16"-18 x 5/8", G5, Full Thd
8шт.
22
A166739
CABLE
- hand brake (Order A176991)
1шт.
9
132-49
COTTER PIN,1/8" x 1 1/8"
Pin, Split (Cotter), 1/8" x 1 1/8"
2шт.
23
L77821
GROMMET,1/2" ID x 1 1/4" Groove Dia, Str Cut
- control cable
1шт.
24
195-103
WASHER,5/16"
- cable to lever, 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)
1шт.
25
141-66
CLEVIS PIN,5/16" x 1 13/16"
PIN - clevis, 5/16 inch
1шт.
26
132-320
COTTER PIN,3/32" x 3/4"
PIN, SPLIT (COTTER), 3/32" x 3/4"
1шт.
27
141-54
CLEVIS PIN,3/8" x 1 1/16"
1шт.
28
132-320
COTTER PIN,3/32" x 3/4"
PIN, SPLIT (COTTER), 3/32" x 3/4"
1шт.
29
A31238
BUSHING
SPACER - cable clamp
2шт.
30
A76109
CLAMP
- cable
1шт.
31
A75745
BUSHING
SHIM - cable clamp
1шт.
32
113-122
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
Clamp to lever Hex, 5/16"-18 x 1 1/2", G5
2шт.
Выбрано товаров: 29
