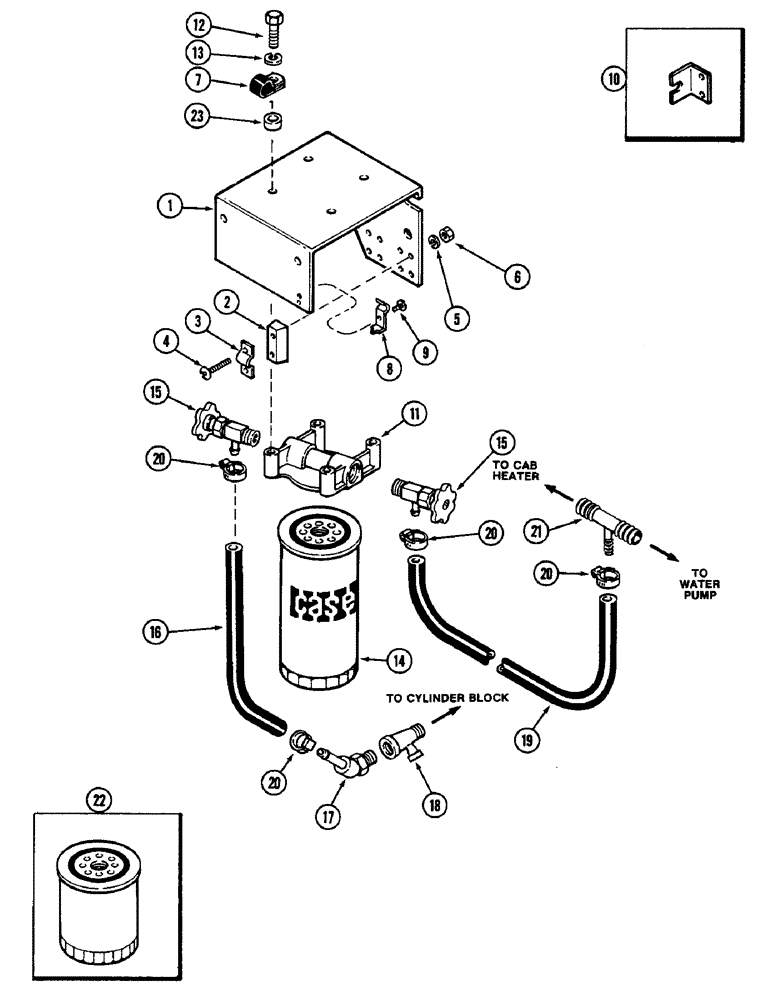

Запчасти Case IH 2090 (2-06) - WATER FILTER KITS, 504BD DIESEL ENGINE (02) - ENGINE

A46453

KIT

- support, water filter, Includes: Ref. 1 - 10

1шт.

1

A160611

BRACKET

SUPPORT - throttle cable and filter head

1шт.

2

A160612

SPACER

- clamp throttle cable

1шт.

3

A75815

CLAMP

- throttle cable

1шт.

4

182-544

SCREW,Slotted Pan Hd, #10-24 x 1 1/4"

- slotted pan head, no. 10-24 x 1-1/4 inch

2шт.

5

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

6

129-17

NUT,Hex, #10 - 24

NUT - hex, no. 10-24

2шт.

7

49859

CLAMP

CLIP - fuel, Serial Range: tube-support

1шт.

8

B51765

CLIP

- stop cable fuel pump

1шт.

9

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- round head, no. 8-24 x 1 inch

1шт.

10

A160620

BRACKET

- throttle cable (Not used this application)

1шт.

A46400

KIT

- water filter and conditioning, Includes: Ref. 11 - 21

1шт.

11

A152821

HEAD

- filter and valve

1шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

14

A152819

FILTER

CARTRIDGE - water filter (Precharged), See Ref. 22

1шт.

15

A154051

COCK, DRAIN

VALVE - water

2шт.

16

A154770

HOSE,0.38" ID x 6.10", SAE 20R3 PER SAE J20

9.60 mm ID x 154.90 mm, SAE 20R3 - Valve to Block

1шт.

17

217-142

ELBOW,45 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

- 45 degree, 1/4 PT x 3/8 inch

1шт.

18

221-1691

TEE,Street, 1/4" NPT

CONNECTOR - branch, 1/4 x 1/4 x 1/4 inch (In block)

1шт.

19

A154053

HEATER HOSE,0.38" ID x 11.20", SAE 20R3

- Valve to heater hose (Order A161557) 0.38" ID x 11.20", SAE 20R3

1шт.

20

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 to 1-1/16 inch (14 to 27 mm)

6шт.

21

A154014

CONNECTOR, ELEC

CONNECTOR - branch, heater hose shift

1шт.

22

A151931

FILTER

CARTRIDGE - water filter (Service)

1шт.

23

A59660

SPACER

- fuel tube clip

1шт.
