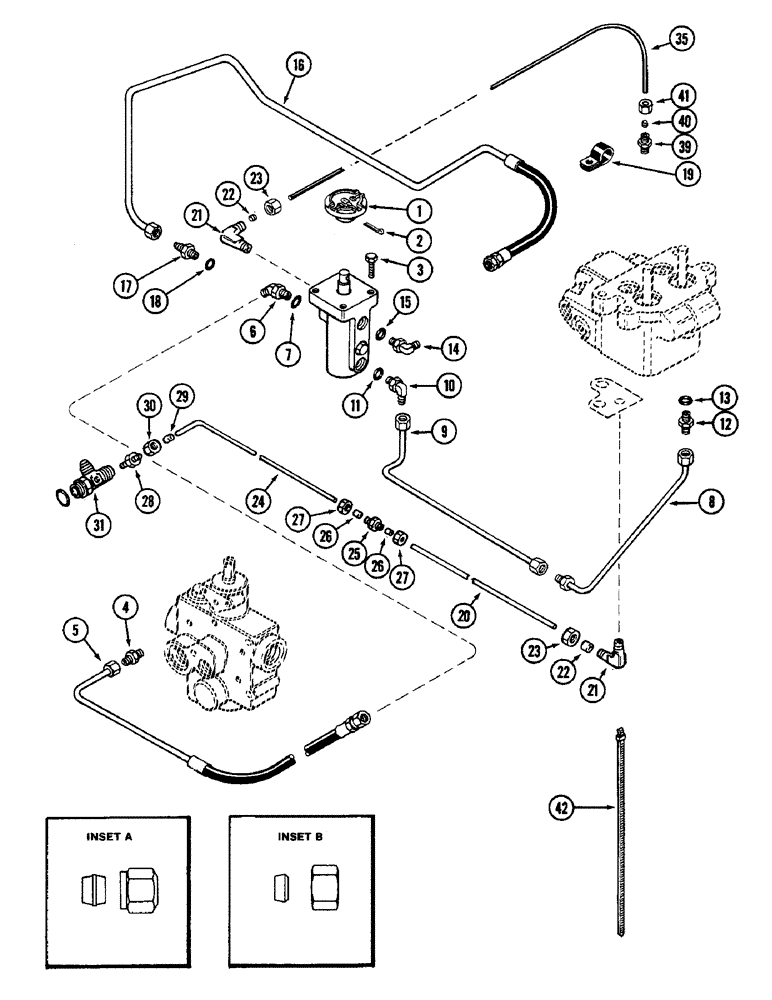

Запчасти Case IH 2090 (7-344) - DIFFERENTIAL LOCK MECHANISM, TRANSMISSION SERIAL NUMBER 10211449 AND AFTER (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
A141692
PEDAL
- foot
1шт.
2
132-337
COTTER PIN,1/8" x 1 3/4"
1/8" x 1 3/4"
1шт.
3
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd, Valve
4шт.
4
218-453
HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF
CONNECTOR, HYD., , Regulator valve, 3/8 tube 9/16"-18, 37º x 1/8"-27, NPTF
1шт.
5
A160081
HOSE
- regulator valve to differential lock valve
1шт.
6
218-5352
HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring
CONNECTOR ASSEMBLY - 3/8 tube x 7/16-20 inch, Includes: Ref. 7
1шт.
7
218-5003
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
- 11/32 x 1/2 x 5/64 inch (9 x 13 x 2 mm)
1шт.
8
A160129
TUBE
- front, brake valve to lock valve
1шт.
9
A163860
TUBE
- rear, brake valve to lock valve (Replaces A160130)
1шт.
10
218-5103
90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB
ASSEMBLY - lock valve, 1/4 tube x 7/16-20 inch, Includes: Ref. 11
1шт.
11
218-5003
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
- 11/32 x 1/2 x 5/64 inch (9 x 13 x 2 mm)
1шт.
12
218-5053
HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB
CONNECTOR ASSEMBLY - brake valve, 1/4 tube x 7/16-20 inch, Incl. Ref. 13
1шт.
13
218-5003
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
- 11/32 x 1/2 x 5/64 inch (9 x 13 x 2 mm)
1шт.
14
218-5278
ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB
ASSEMBLY - brake valve, 3/8 tube x 9/6-20 inch, Incl. Ref. 15
1шт.
15
218-5003
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
- 11/32 x 1/2 x 5/64 inch (9 x 13 x 2 mm)
1шт.
16
A160082
HOSE
- lock valve to transmission case
1шт.
17
218-5058
HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB
CONNECTOR ASSEMBLY - transmission case, 3/8 tube x 1/2-20 inch, Includes: Ref. 18
1шт.
19
515-2363
CLAMP,M6.3, Insul, 3/8" Bolt
- hose
1шт.
20
A63670
TUBE
- nylon, brake valve return, 3/8 OD x 30 inch (Order A67323)
1шт.
21
222-2646
ELBOW,90 Degree, 17/32"-24 x 1/8" NPT, Comp
ASSEMBLY - 3/8 inch tube (See inset A), Includes: Ref. 22 & 23
2шт.
22
222-2611
SLEEVE
- 3/8 inch tube (See inset A)
1шт.
23
222-2601
NUT
NUT - 3/8 inch tube (See inset A)
1шт.
21
222-5112
FITTING,9/16"-24 x 1/4" NPTF
ELBOW ASSEMBLY - 3/8 tube (See inset B) (Order 222-2646), Includes: Ref. 22 & 23
1шт.
22
222-5186
SLEEVE,3/8" Tube
- 3/8 inch tube (See inset B)
1шт.
23
222-5181
NUT,9/16"-24
NUT - 3/8 inch tube (See inset B)
1шт.
24
A63997
TUBE
- nylon, brake valve return, 3/8 OD x 25 inch (Order A67323)
1шт.
25
222-2651
HYD CONNECTOR,17/32"-24
UNION - tube, 3/8 inch tube, Includes: Ref. 26 & 27
1шт.
26
222-2611
SLEEVE
- 3/8 inch tube
2шт.
27
222-2601
NUT
NUT - 3/8 inch tube
2шт.
28
222-5101
CONNECTOR, ELEC,17/32"-24 x 1/4" NPT
CONNECTOR ASSEMBLY - dipstick tee, 3/8 tube x 1/4 inch PT (Order 222-2626), Includes: Ref. 29 & 30
1шт.
29
222-5186
SLEEVE,3/8" Tube
- 3/8 inch tube
1шт.
30
222-5181
NUT,9/16"-24
NUT - 3/8 inch tube
1шт.
31
A161146
FITTING
TEE - dipstick
1шт.
35
A145792
TUBE
- nylon, lock valve return, 3/8 OD x 12 inch (Order A67323)
1шт.
39
222-2631
FITTING,17/32"-24 x 1/8" NPT Fem, Comp
CONNECTOR ASSEMBLY - straight, 3/8 inch tube (See inset A), Includes; Ref. 40 & 41
1шт.
40
222-2611
SLEEVE
- 3/8 inch tube (See inset A)
1шт.
41
222-2601
NUT
NUT - 3/8 inch tube (See inset A)
1шт.
39
222-5100
CONNECTOR, ELEC,17/32"-24 x 1/8" NPT
CONNECTOR ASSEMBLY - 3/8 inch tube (See inset B) (Order 222-2631), Includes: Ref. 40 & 41
1шт.
40
222-5186
SLEEVE,3/8" Tube
- 3/8 inch tube (See inset B)
1шт.
41
222-5181
NUT,9/16"-24
NUT - 3/8 inch tube (See inset B)
1шт.
42
L18337
CABLE TIE,9.95"-12.1" lg
STRAP - tie, 15 inch, nylon
1шт.
43
REF
INSTRUCTION
VALVE ASSEMBLY - differential lock, See Figure 7-346
1шт.
A67323
TUBE
- service, nylon 3/8 OD x 132 inch (Order A167912 tube, 152 inch long)
1шт.
18
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 mm)
1шт.
Выбрано товаров: 44
