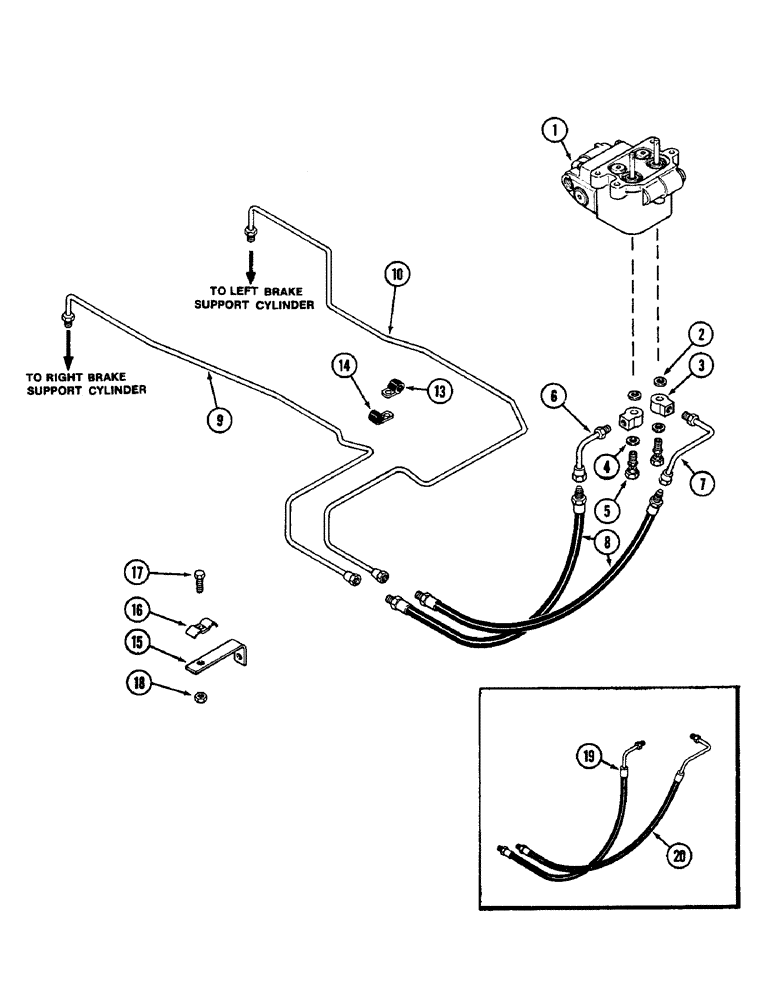

Запчасти Case IH 2090 (7-326) - BRAKE VALVE, HOSES AND TUBES (07) - BRAKES

1

REF

INSTRUCTION

VALVE ASSEMBLY - power brake, See Figure 7-330

1шт.

2

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - inner, 1/2 x 13/16 x 1/32 inch (13 x 21 x 1 mm)

2шт.

3

A18531

FITTING

- brake tube

2шт.

4

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- outer, 19/32 x 13/16 x 1/32 inch (15 x 21 x 1 mm)

2шт.

5

A12864

BOLT

- fitting

2шт.

6

A164364

PIPE

TUBE - brake, right front (Replaces A147198 hose)

1шт.

7

A164363

TUBE

- brake, left front (Replaces A147971 hose)

1шт.

8

A164362

HYDRAULIC HOSE,6.35mm ID x 355.6mm L, SAE 100R1

- Brake, Front 0.25" ID x 14.00", SAE 100R1 per SAE J516

2шт.

9

A149540

TUBE

- brake, right rear

1шт.

10

A149541

TUBE

- brake, left rear

1шт.

13

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- brake tube

2шт.

14

A13002

SPRING

CLAMP - brake tube

1шт.

15

A149866

BRACKET

- hose clamp

1шт.

16

A63323

CLAMP

- hose

1шт.

17

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

18

131-634

SPRING NUT,J, Ret, 3/8"-16

- hex lock, 3/8 inch NC

1шт.

19

NSS

NOT SOLD SEPARAT

HOSE - brake, right front (Order A164364 and A164362)

1шт.

20

NSS

NOT SOLD SEPARAT

HOSE - brake, left front (Order A164363 and A164362)

1шт.
