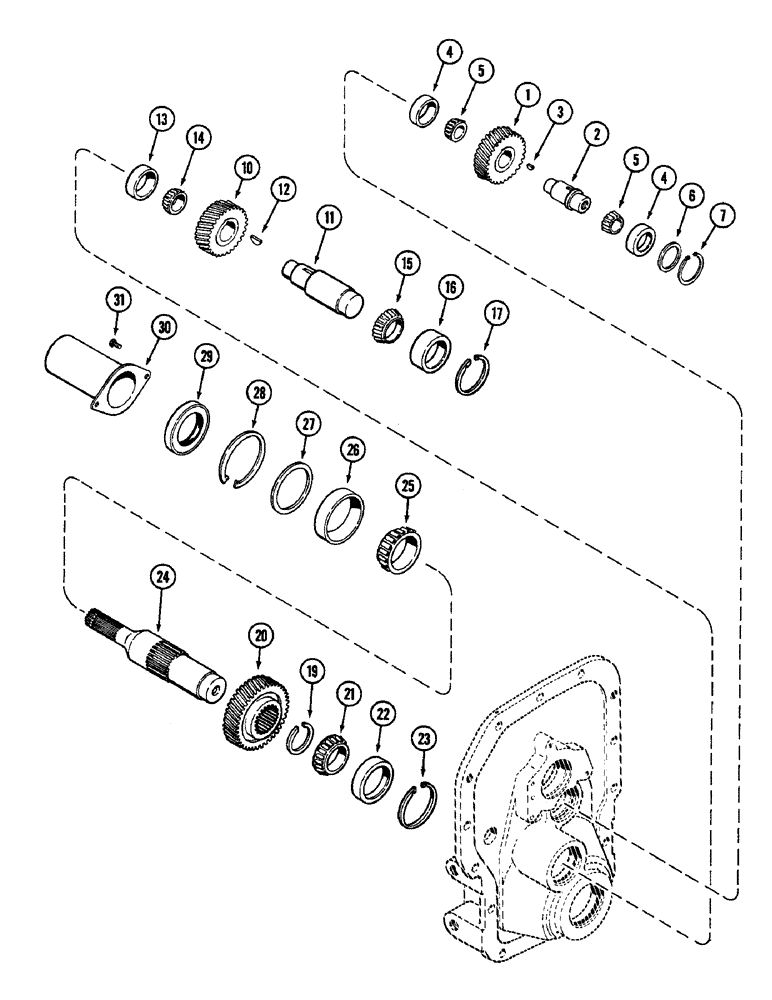

Запчасти Case IH 2090 (6-320) - PTO IDLER GEARS AND OUTPUT SHAFT, SINGLE SPEED 1000 RPM (06) - POWER TRAIN

1

A150952

GEAR

- idler, first (29 teeth) 1-19/32 inch ID (40 mm)

1шт.

2

A142872

SHAFT

- first idler gear

1шт.

3

126-115

WOODRUFF KEY,#8, 5/32" x 3/4", HT

1шт.

4

D31948

BEARING CUP,2.5312" OD x 0.6563"

CUP - bearing, first idler, 2-17/32 inch OD (64 mm)

2шт.

5

D31949

ROLLER BEARING,30.175 mm ID x 21.636 mm

CONE - bearing, first idler, 1-3/16 inch ID (30 mm)

2шт.

6

A151692

BUSHING

SPACER - first idler gear, 0.045 inch (1.14 mm)

1шт.

6

A151691

BUSHING

SPACER - first idler gear, 0.050 inch (1.27 mm)

1шт.

6

A151346

BUSHING

SPACER - first idler gear, 0.055 inch (1.40 mm)

1шт.

6

A151345

BUSHING

SPACER - first idler gear, 0.060 inch (1.52 mm)

1шт.

6

A151344

BUSHING

SPACER - first idler gear, 0.065 inch (1.65 mm)

1шт.

6

A151343

BUSHING

SPACER - first idler gear, 0.070 inch (1.78 mm)

1шт.

6

A151342

BUSHING

SPACER - first idler gear, 0.075 inch (1.91 mm)

1шт.

6

A151341

BUSHING

SPACER - first idler gear, 0.080 inch (2.03 mm)

1шт.

7

A140746

SNAP RING,#253, 2.706", Int

RING - snap, first idler gear

1шт.

10

A155613

GEAR

- idler, second (29 teeth) (Transmission serial no. 10270783 and after)

1шт.

10

A150953

GEAR

- idler, second (29 teeth) (Prior to transmission serial no. 10270783) (Order A155613, A155612 and 126-124)

1шт.

11

A155612

SHAFT

- second idler gear (Transmission serial no. 10270783 and after)

1шт.

11

A150021

SHAFT

- second idler gear (Prior to transmission serial no. 10270783) (Order A155613, A155612 and 126-124)

1шт.

12

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

(Transmission S/N 10270783 and after) #15, 1/4" x 1", HT

1шт.

12

126-122

WOODRUFF KEY,#13, 3/16" x 1", HT

(Prior to transmission S/N 10270783) #13, 3/16" x 1", HT

1шт.

13

A27631

CUP

- outer bearing, second idler, 2-7/8 inch OD (73 mm)

1шт.

14

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - outer bearing, second idler, 1-3/8 inch ID (35 mm)

1шт.

15

R32217

ROLLER BEARING,50 mm ID x 21.5 mm

CONE - inner bearing, second idler, 1-31/32 inch ID (50 mm)

1шт.

16

R32216

BEARING CUP,82 mm OD x 17 mm

CUP - inner bearing, second idler, 3-15/64 inch OD (82 mm)

1шт.

17

A151678

RING

- snap, spacer, 0.070 inch (1.78 mm)

1шт.

17

A151677

RING

- snap, spacer, 0.076 inch (1.93 mm)

1шт.

17

A151676

RING

- snap, spacer, 0.081 inch (2.06 mm)

1шт.

17

A151675

RING

- snap, spacer, 0.086 inch (2.18 mm)

1шт.

17

A152246

RING

- snap, spacer, 0.091 inch (2.31 mm)

1шт.

17

A152245

RING

- snap, spacer, 0.096 inch (2.44 mm)

1шт.

17

A152244

RING

- snap, spacer, 0.101 inch (2.57 mm)

1шт.

19

A27233

RING

- snap, output gear

1шт.

20

A152772

GEAR

- output (40 teeth)

1шт.

21

A150146

ROLLER BEARING,57.163 mm ID x 22.022 mm

CONE - front bearing, 2-1/4 inch ID (57 mm)

1шт.

22

A30308

ROLLER BEARING,98.450 mm OD x 17.826 mm

CUP - front bearing, 3-7/8 inch OD (98 mm)

1шт.

23

A151609

RING

- snap, spacer, 0.062 inch (1.58 mm)

1шт.

23

A151608

RING

- snap, spacer, 0.067 inch (1.70 mm)

1шт.

23

A151607

RING

- snap, spacer, 0.072 inch (1.83 mm)

1шт.

23

A152251

RING

- snap, spacer, 0.087 inch (2.21 mm)

1шт.

23

A152250

RING

- snap, spacer, 0.092 inch (2.34 mm)

1шт.

23

A152249

RING

- snap, spacer, 0.097 inch (2.46 mm)

1шт.

23

A152248

RING

- snap, spacer, 0.103 inch (2.62 mm)

1шт.

24

A152771

SHAFT

SNAP - output

1шт.

25

R32215

ROLLER BEARING,2.7559" ID x 4.3307" OD x 1.02363"

CONE - rear bearing, 2-3/4 inch ID (70 mm)

1шт.

26

R32214

CUP

- rear bearing, 4-11/32 inch OD (110 mm)

1шт.

27

A152659

SPACER

- bearing

1шт.

28

R32220

SNAP RING,4.331", Int, #433

Ring, Snap, , brg 4.331", Int, #433

1шт.

29

A140930

OIL SEAL

- oil

1шт.

30

A142425

GUARD

- output shaft

1шт.

31

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.
