Запчасти Case IH 2090 (6-314) - PTO CLUTCH AND BRAKE (06) - POWER TRAIN

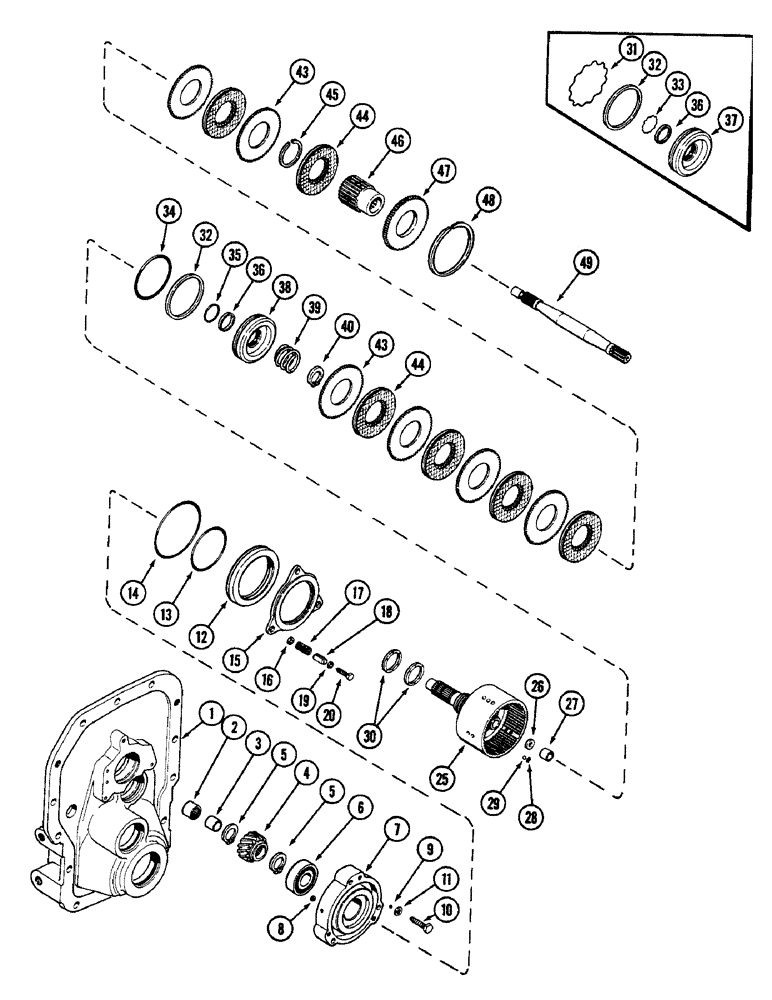

Схема запчастей Case IH 2090 - (6-314) - PTO CLUTCH AND BRAKE (06) - POWER TRAIN
25
17
32
19
43
36
39
2
33
30
35
5
1
7
44
49
45
6
16
11
20
48
14
27
13
43
18
12
37
47
34
8
40
4
31
44
3
9
29
10
5
38
46
26
28
15
36
32

Артикул

Название

Примечание

Количество

1

A150705

HOUSING

- PTO

1шт.

2

K690321

NEEDLE BEARING

BEARING - needle, 1-1/2 ID (38 mm)

1шт.

3

A142869

ROLLER CAGE BEARING

RACE - needle bearing, 1-1/4 x 1-1/2 x 1 inch (32 x 38 x 25 mm)

1шт.

4

A152151

GEAR

- PTO input (24 internal and 19 external teeth)

1шт.

5

A144595

SNAP RING,#156, Ext

Ring, Snap, , brg and gear timing #156, Ext

2шт.

6

ST436

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

BEARING - ball, input 1-37/64 inch ID (40 mm)

1шт.

7

A142868

CARRIER

- PTO brake piston

1шт.

8

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING - 19/64 x 7/16 x 1/16 inch (8 x 11 x 2 mm)

2шт.

9

211-9

BALL,5/16" Dia

- 5/16 inch diameter steel (8 mm)

1шт.

10

26-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

- hex, 3/8 NC x 2-3/4 inch (Grade 8)

3шт.

11

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- 27/64 x 3/4 x 1/32 inch (11 x 19 x 1 mm)

3шт.

12

A150236

PISTON

- PTO brake

1шт.

13

238-5248

O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro

- 4-3/4 x 5 x 1/2 inch (121 x 127 x 13 mm)

1шт.

14

A28183

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

- 6-1/4 x 6-1/2 x 1/8 inch (159 x 165 x 3 mm)

1шт.

15

A142864

BRAKE

- PTO, with lining

1шт.

16

A148875

WASHER,8.2mm ID x 12.7mm OD x 0.86mm Thk

- 21/64 x 1/2 x 1/32 inch (8 x 13 x 1 mm)

3шт.

17

A152184

SPRING

- brake return, 1-35/64 inch free length (39 mm)

3шт.

18

138-202

LOCK PIN,1/2" x 1 3/8", Slotted

Pin, (13 x 35 mm) 1/2" x 1 3/8", Slotted

3шт.

19

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

3шт.

20

26-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 8

- hex, 5/16 NC x 2-1/4 inch (Grade 8)

3шт.

25

A156294

CARRIER

ASSEMBLY - PTO clutch (Replaces A142866), Includes: Ref. 26 - 29

1шт.

26

A63265

WASHER

- thrust, 7/16 x 15/16 x 1/16 inch (11 x 24 x 2 mm)

1шт.

27

A64451

BUSHING,20.54mm ID x 25.41mm OD x 22.35mm L

- shaft

1шт.

28

A153400

SNAP RING,0.312", Int, #31

ball 0.312", Int, #31

1шт.

29

211-8

BALL,9/32" Dia

(7 mm) 9/32" Dia

1шт.

30

A59005

SEAL

- ring

2шт.

31

G102094

SPRING

- piston seal, external (Prior to transmission serial no. 16200198)

1шт.

32

A50625

SEALING RING,130.02mm ID x 137.64mm OD x 2.49mm Thk

SEAL - piston, 5-7/64 OD x 3/32 inch square (130 x 2 mm)

1шт.

33

A63259

SPRING

- piston seal, internal (Prior to transmission serial no. 16200198)

1шт.

34

A155963

SEAL

O-RING - piston seal, 4-21/32 x 1/16 inch (118 x 2 mm) (Transmission serial no. 16200198 and after)

1шт.

35

A155964

O-RING,1.812" ID x 0.073" Thk

O-RING - piston seal, internal, 1-51/64 x 1/16 inch (46 x 2 mm) (Transmission serial no. 16200198 and after)

1шт.

36

A63258

SEAL

- piston, 1-17/32 inch ID (39 mm)

1шт.

37

NSS

NOT SOLD SEPARAT

PISTON - PTO clutch (Prior to transmission serial no. 16200198) (Order Ref. 34, 35 and 38)

1шт.

38

A155962

PISTON

- PTO clutch (Replaces A67155) (Transmission serial no. 16200198 and after)

1шт.

39

A63260

SPRING

- piston return, 1-3/4 inch free length (44 mm)

1шт.

40

T37909

SNAP RING,#150, Ext

Ring, Snap, , piston #150, Ext

1шт.

43

A67156

PLATE

- clutch, steel

6шт.

44

A67130

PLATE

- clutch, friction

6шт.

45

A58217

SNAP RING,#275, 2.594, Ext

RING - snap, PTO hub

1шт.

46

A156284

HUB

- PTO - clutch (Replaces A152152)

1шт.

47

A50643

PLATE

- clutch backup

1шт.

48

A50639

RING

- snap, backup plate

1шт.

49

A154932

SHAFT

- PTO input, rear (Replaces A150447)

1шт.

Выбрано товаров: 43
