Запчасти Case IH 2090 (6-312) - PTO HOUSING (06) - POWER TRAIN

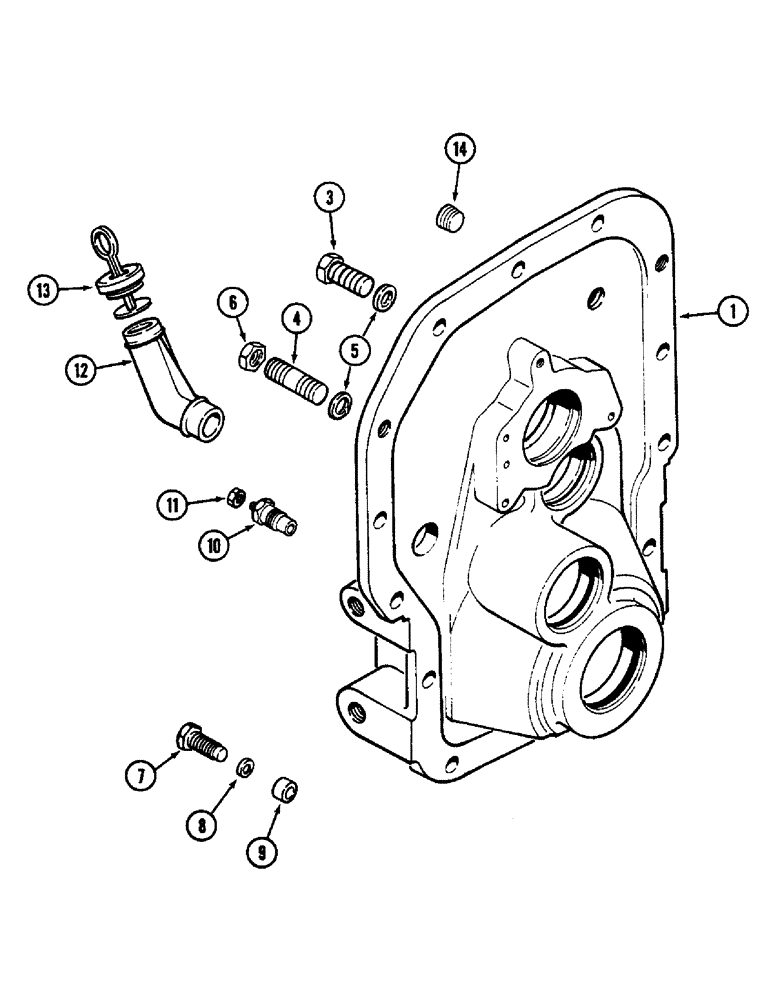

Схема запчастей Case IH 2090 - (6-312) - PTO HOUSING (06) - POWER TRAIN
10
4
5
3
14
6
12
8
9
11
1
13
7

Артикул

Название

Примечание

Количество

1

A150705

HOUSING

- PTO (Order A67537 kit)

1шт.

3

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

10шт.

4

A29396

STUD

- 5/8 NC/NF x 2-7/8 inch

2шт.

5

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

6

129-127

NUT,5/8"-18, G5

2шт.

7

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

8

L30674

WASHER

- 17/32 x 1 x 1/8 inch (13 x 25 x 3 mm)

2шт.

9

A50011

SLEEVE

BUSHING - 17/32 x 3/4 x 17/32 inch (13 x 19 x 13 mm)

2шт.

10

A154283

SWITCH

- transmission temperature sending (Replaces A147186)

1шт.

11

193-1000

NUT,Keps, w/LW,#10-32

- hex Keps, no. 10-32

1шт.

12

A150353

TUBE

- oil filler

1шт.

13

A64404

BREATHER

- oil filler tube (Replaced A59123)

1шт.

14

221-845

PLUG,Hex Soc, 3/4"-14

- socket head, 3/4 inch PT

1шт.

Выбрано товаров: 13
