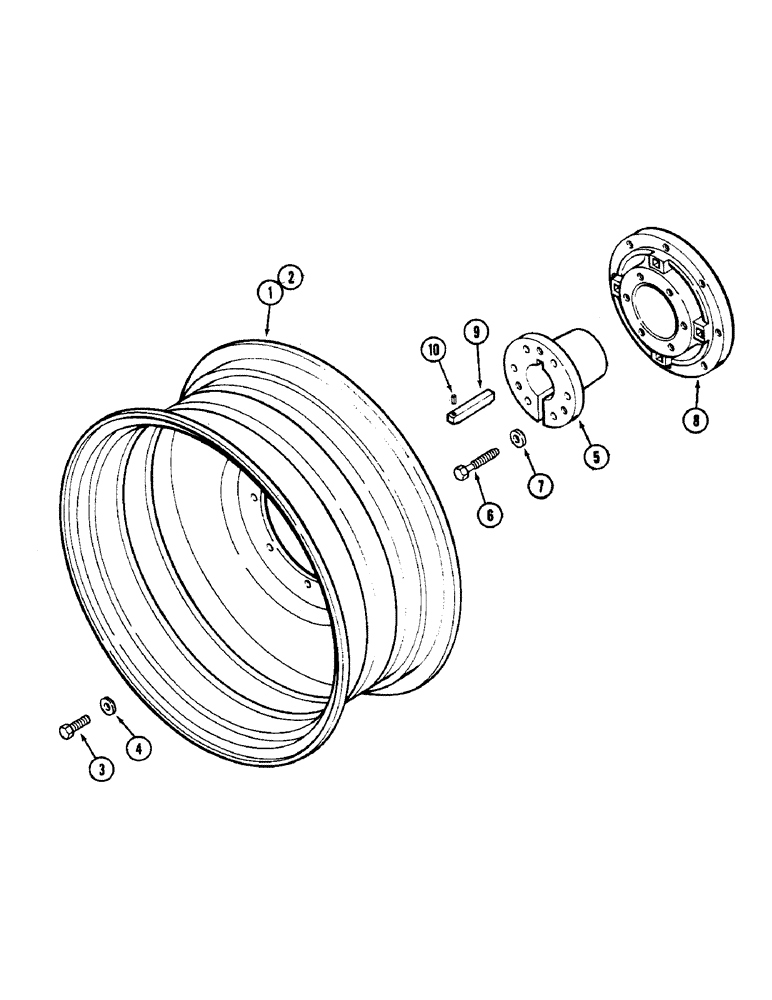

Запчасти Case IH 2090 (6-300) - STEEL DUAL REAR WHEELS, WITH 38 INCH (965 MM) RIMS (06) - POWER TRAIN

1

A145459

WHEEL

- steel (For 18.4 x 38 tire)

2шт.

2

A145460

WHEEL

- steel (For 20.8 x 38 tire)

2шт.

3

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

Wheel Hex, 3/4"-10 x 2", G8

16шт.

4

D31328

WASHER

- bolt, 49/64 x 1-5/8 x 1/4 inch (19 x 41 x 6 mm)

16шт.

5

A59792

HUB

BUSHING - hub

2шт.

6

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to hub

12шт.

7

D31328

WASHER

- bolt, 49/64 x 1-5/8 x 1/4 inch (19 x 41 x 6 mm)

16шт.

8

A145321

HUB CAP

HUB - universal

2шт.

9

A34890

BUCKET TOOTH KEY

KEY - axle shaft, 5/8 square x 6 inch (16 x 152 mm)

2шт.

10

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.
