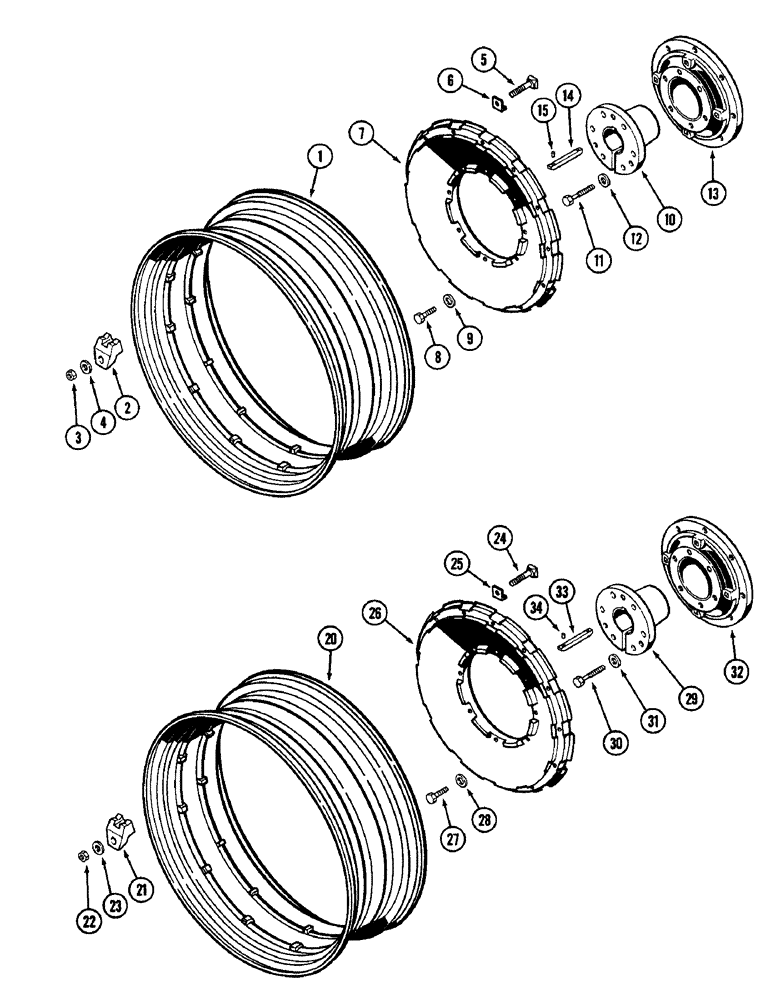

Запчасти Case IH 2090 (6-298) - CAST DUAL REAR WHEELS, WITH 34 INCH (864 MM) RIM (06) - POWER TRAIN

1

A57045

RIM

- wheel (For 18.4 x 34 tire)

2шт.

2

A57654

CLAMP

-, Serial Range: rim-wheel

24шт.

3

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- heavy hex, 3/4 inch NC

24шт.

4

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- clamp nut

24шт.

5

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- clamp, square head, 3/4 NC x 3-1/2 inch

24шт.

6

A34799

LOCK WASHER

- lock, clamp bolt

24шт.

7

A33172

WHEEL

- cast universal hub

2шт.

8

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

16шт.

9

195-25

WASHER,3/8"

- lock, 5/8 inch

16шт.

10

A59792

HUB

BUSHING - wheel hub

2шт.

11

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to hub

2шт.

12

D31328

WASHER

- bolt, 49/64 x 1-5/8 x 1/4 inch (19 x 41 x 6 mm)

12шт.

13

A59791

HUB

- universal, cast wheel

2шт.

14

A34890

BUCKET TOOTH KEY

KEY - axle shaft, 5/8 square x 6 inch (16 x 152 mm)

2шт.

15

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.

20

A160971

RIM

- wheel, 38" (965 mm) (For 18.4 x 38 tire) (Replaces A34102), with 38 inch (965 mm) rim

2шт.

21

A57654

CLAMP

- rim to wheel, with 38 inch (965 mm)

24шт.

22

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- heavy hex, 3/4 inch NC, with 38 inch (965 mm) rim

24шт.

23

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- clamp nut, with 38 inch (965 mm) rim

24шт.

24

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- clamp, square head, 3/4 NC x 3-1/2 inch, with 38 inch (965 mm) rim

24шт.

25

A34799

LOCK WASHER

- lock, clamp bolt, with 38 inch (965 mm) rim

24шт.

26

A33174

WHEEL

- cast universal hub, with 38 inch (965 mm) rim

2шт.

27

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

with 38 inch (965 mm) rim Hex, 5/8"-11 x 2 3/4", G5

16шт.

28

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , w/38 inch (965 mm) rim 5/8"

16шт.

29

A59792

HUB

BUSHING - wheel hub, with 38 inch (965 mm) rim

2шт.

30

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to hub, with 38 inch (965 mm) rim

12шт.

31

D31328

WASHER

- bolt, 49/64 x 1-5/8 x 1/4 inch (19 x 41 x 6 mm), with 38 inch (965 mm) rim

12шт.

32

A59791

HUB

- universal, cast wheel, with 38 inch (965 mm) rim

2шт.

33

A34890

BUCKET TOOTH KEY

KEY - axle shaft, 5/8 square x 6 inch long (16 x 152 mm), with 38 inch (965 mm) rim

2шт.

34

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , with 38 inch (965 mm) rim 1/4" x 1/2", Slotted

2шт.
