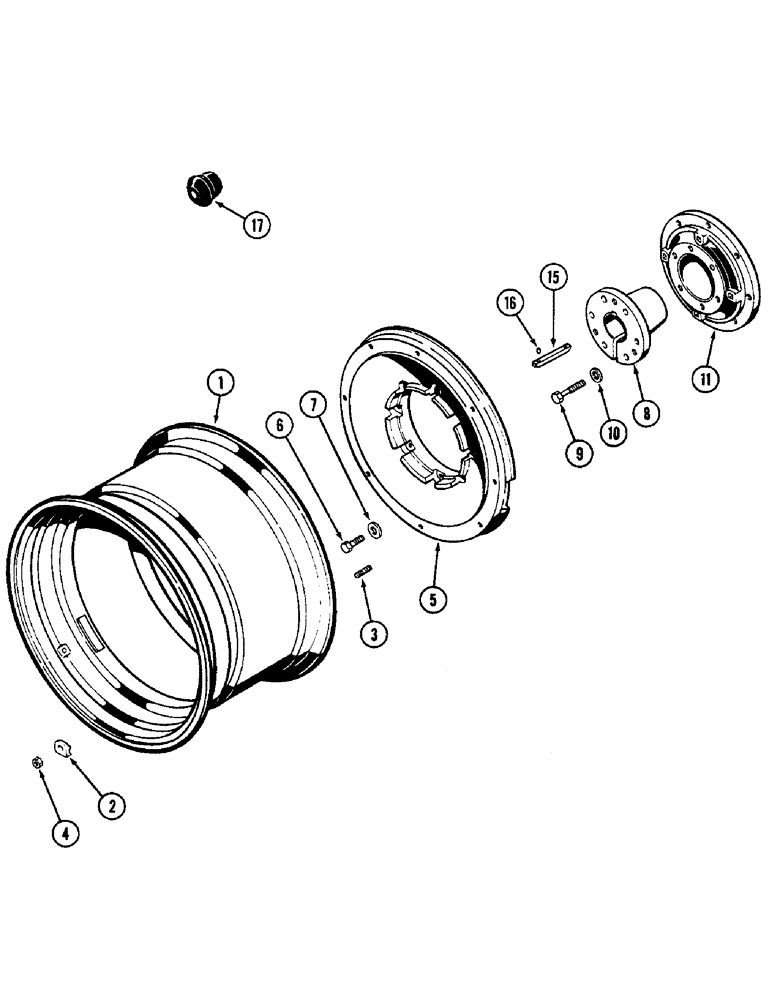

Запчасти Case IH 2090 (6-294) - REAR WHEELS, WITH 34 INCH (864 MM) RIMS (06) - POWER TRAIN

1

A33460

RIM

- wheel (For 23.1 x 34 tire)

2шт.

2

A166501

CLAMP

- rim to wheel (Replaces F62001)

16шт.

3

A60047

STUD

- clamp to wheel, 5/8 NC x 2-7/16 inch

16шт.

4

A27183

NUT

- stud

16шт.

5

A57686

WHEEL

- rear, universal hub

2шт.

6

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex, wheel to hub, 5/8 NC x 2-1/4 inch (Grade 8)

16шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

8

A59792

HUB

BUSHING - hub

2шт.

9

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to hub

12шт.

10

D31328

WASHER

- bolt, 49/64 x 1-5/8 x 1/4 inch (19 x 41 x 6 mm)

12шт.

11

A59791

HUB

- universal

2шт.

15

A34890

BUCKET TOOTH KEY

KEY - axle shaft, 5/8 square x 6 inch long (16 x 152 mm)

2шт.

16

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.

17

A145052

PLUG

- valve opening in rim

1шт.
