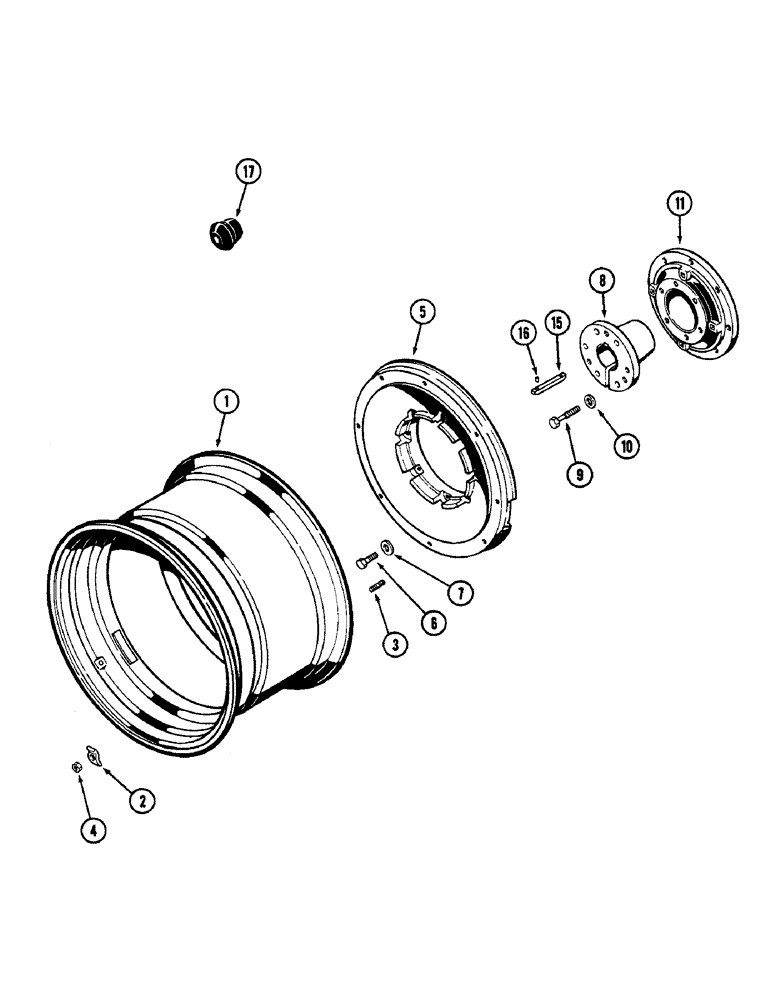

Запчасти Case IH 2090 (6-292) - REAR WHEELS, WITH 32 INCH (812.8) RIMS (06) - POWER TRAIN

1

A63807

RIM

- wheel (For 24.5 x 32 tire)

2шт.

2

A166501

CLAMP

- rim to wheel (Replaces F62001)

16шт.

3

A60047

STUD

- clamp to wheel, 5/8 NC x 2-7/16 inch

16шт.

4

A27183

NUT

- stud

16шт.

5

A145461

FLANGE

WHEEL - rear, universal hub

2шт.

6

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- wheel to hub, hex, 3/4 NC x 2-1/2 inch (Grade 8)

16шт.

7

D31328

WASHER

- 44/64 x 1-5/8 x 1/4 inch (20 x 41 x 6 mm)

16шт.

8

A59792

HUB

BUSHING - hub

2шт.

9

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to hub

12шт.

10

D31328

WASHER

- bolt, 49/64 x 1-5/8 x 1/4 inch (19 x 41 x 6 mm)

12шт.

11

A145321

HUB CAP

HUB - universal

2шт.

15

A34890

BUCKET TOOTH KEY

KEY - axle shaft, 5/8 square x 6 inch long (16 x 152 mm)

2шт.

16

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.

17

A145052

PLUG

- valve opening in rim

1шт.
