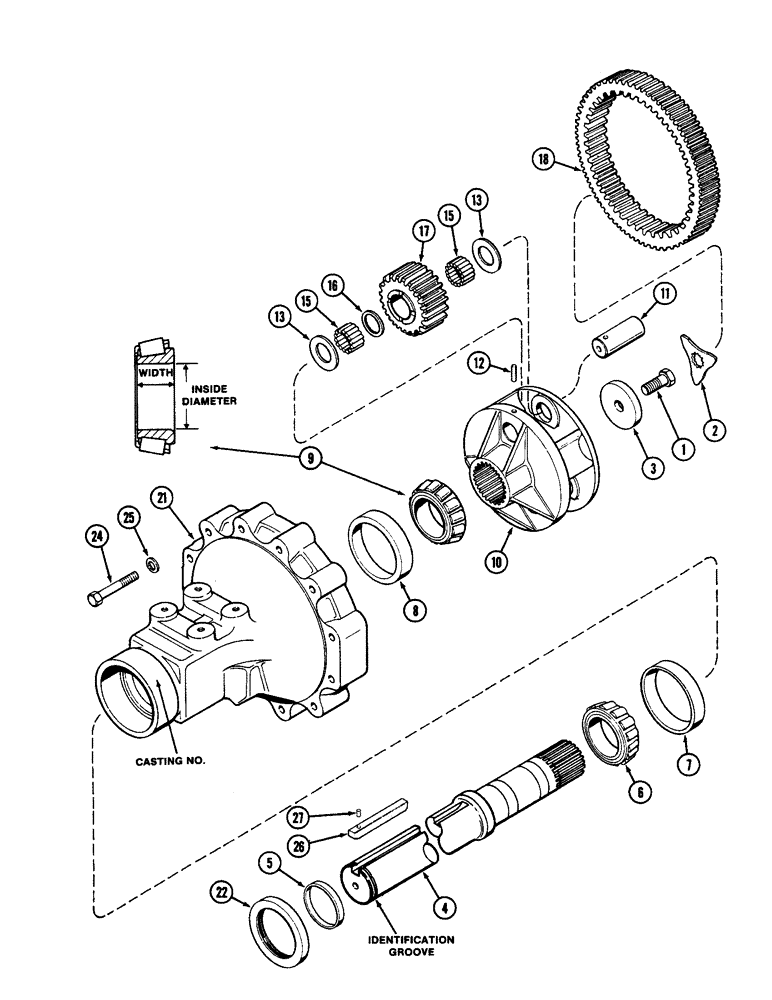

Запчасти Case IH 2090 (6-286) - REAR AXLE, HOUSING AND PLANETARY GEARS, 120 INCH LONG AXLE (3 048 MM) (06) - POWER TRAIN

1

26-1436

BOLT,Hex, 7/8" - 9 x 2-1/4", Gr 8

- hex, 7/8 NC x 2-1/4 inch (Grade 8)

2шт.

2

A63221

PLATE

- bearing lock

2шт.

3

A63220

PLATE

- retaining rear axle

2шт.

4

A155225

SHAFT

- rear axle, with identification groove, 44-9/16 inch (1 132 mm)

2шт.

Tractor equipped with A148731 housing and A153278 shaft must use A34343 inner cup and A67333 inner cone. Tractor equipped with A148731 housing and A155225 shaft must use A34343 inner cup and A157334 inner core. Tractor equipped with A154877 housing and A153278 shaft must use A50324 cup and A154885 inner cone. Tractor equipped with A154877 housing and A155225 shaft must use A50324 inner cup and A34339 inner cone.

1шт.

4

A153278

SHAFT

ASSEMBLY - rear axle with identification groove (Replaces A153429) (Order A155225, A157334 and A154957), Includes: Ref. 5

2шт.

Tractor equipped with A148731 housing and A153278 shaft must use A34343 inner cup and A67333 inner cone. Tractor equipped with A148731 housing and A155225 shaft must use A34343 inner cup and A157334 inner core. Tractor equipped with A154877 housing and A153278 shaft must use A50324 cup and A154885 inner cone. Tractor equipped with A154877 housing and A155225 shaft must use A50324 inner cup and A34339 inner cone.

1шт.

5

A67368

RING

- wear, outer oil seal

1шт.

6

A34340

ROLLER BEARING

CONE - bearing, outer (3-11/32 inch ID) (85 mm)

2шт.

7

A34343

BEARING CUP

CUP - bearing, outer, 5-57/64 inch OD (150 mm)

2шт.

8

A50324

BEARING CUP

CUP - bearing, inner, 5-1/4 inch OD (133 mm)

2шт.

Tractor equipped with A148731 housing and A153278 shaft must use A34343 inner cup and A67333 inner cone. Tractor equipped with A148731 housing and A155225 shaft must use A34343 inner cup and A157334 inner core. Tractor equipped with A154877 housing and A153278 shaft must use A50324 cup and A154885 inner cone. Tractor equipped with A154877 housing and A155225 shaft must use A50324 inner cup and A34339 inner cone.

1шт.

8

A34343

BEARING CUP

CUP - bearing, inner, 5-57/64 inch OD (150 mm)

2шт.

Tractor equipped with A148731 housing and A153278 shaft must use A34343 inner cup and A67333 inner cone. Tractor equipped with A148731 housing and A155225 shaft must use A34343 inner cup and A157334 inner core. Tractor equipped with A154877 housing and A153278 shaft must use A50324 cup and A154885 inner cone. Tractor equipped with A154877 housing and A155225 shaft must use A50324 inner cup and A34339 inner cone.

1шт.

9

PA34339

NUT

CONE - bearing, inner, 3-1/4 ID x 1-9/16 inch wide (83 x 40 mm)

2шт.

Tractor equipped with A148731 housing and A153278 shaft must use A34343 inner cup and A67333 inner cone. Tractor equipped with A148731 housing and A155225 shaft must use A34343 inner cup and A157334 inner core. Tractor equipped with A154877 housing and A153278 shaft must use A50324 cup and A154885 inner cone. Tractor equipped with A154877 housing and A155225 shaft must use A50324 inner cup and A34339 inner cone.

1шт.

9

A157334

ROLLER BEARING,3.25" ID x 1.8375"

CONE - bearing, inner, 3-1/4 ID x 1-27/32 inch wide (83 x 47 mm)

2шт.

Tractor equipped with A148731 housing and A153278 shaft must use A34343 inner cup and A67333 inner cone. Tractor equipped with A148731 housing and A155225 shaft must use A34343 inner cup and A157334 inner core. Tractor equipped with A154877 housing and A153278 shaft must use A50324 cup and A154885 inner cone. Tractor equipped with A154877 housing and A155225 shaft must use A50324 inner cup and A34339 inner cone.

1шт.

9

A67333

CONE

- bearing, inner, 3-3/16 ID x 1-27/32 inch wide (81 x 47 mm)

2шт.

Tractor equipped with A148731 housing and A153278 shaft must use A34343 inner cup and A67333 inner cone. Tractor equipped with A148731 housing and A155225 shaft must use A34343 inner cup and A157334 inner core. Tractor equipped with A154877 housing and A153278 shaft must use A50324 cup and A154885 inner cone. Tractor equipped with A154877 housing and A155225 shaft must use A50324 inner cup and A34339 inner cone.

1шт.

9

A154885

ROLLER BEARING,3.1875" ID x 1.5625"

CONE - bearing, inner, 3-3/16 ID x 1-9/16 inch wide (81 x 40 mm)

2шт.

Tractor equipped with A148731 housing and A153278 shaft must use A34343 inner cup and A67333 inner cone. Tractor equipped with A148731 housing and A155225 shaft must use A34343 inner cup and A157334 inner core. Tractor equipped with A154877 housing and A153278 shaft must use A50324 cup and A154885 inner cone. Tractor equipped with A154877 housing and A155225 shaft must use A50324 inner cup and A34339 inner cone.

1шт.

10

A150254

CARRIER

- planetary gear

2шт.

11

A151449

PIN,40.35mm OD x 115.82mm L

- planetary gear, with 3/8 inch hole (10 mm)

6шт.

12

138-2066

PIN,3/8" x 1 1/2", Coiled

6шт.

13

A63228

WASHER

- planetary pin roller, 1-39/64 x 3 x 1/32 inch (41 x 76 x 1 mm)

12шт.

15

A46423

KIT

BEARING KIT - roller, planetary gear (19 needles per kit)

4шт.

16

A63227

SPACER

- roller bearing separator, 1-21/32 x 2-13/64 x 19/64 inch (42 x 56 x 8 mm)

6шт.

17

A150253

GEAR

- planetary, rear axle

6шт.

Ref #17 - A150274 Gear WIDTH IS 2.465/2.455.

1шт.

18

A140811

GEAR

- planetary ring

2шт.

21

A154877

HOUSING

- rear axle (Casting no. A154877)

2шт.

Tractor equipped with A148731 housing and A153278 shaft must use A34343 inner cup and A67333 inner cone. Tractor equipped with A148731 housing and A155225 shaft must use A34343 inner cup and A157334 inner core. Tractor equipped with A154877 housing and A153278 shaft must use A50324 cup and A154885 inner cone. Tractor equipped with A154877 housing and A155225 shaft must use A50324 inner cup and A34339 inner cone.

1шт.

21

A148731

HOUSING

- rear axle (Casting no. A148730) (Order 1 each of A154877, A154885, A50324)

2шт.

Tractor equipped with A148731 housing and A153278 shaft must use A34343 inner cup and A67333 inner cone. Tractor equipped with A148731 housing and A155225 shaft must use A34343 inner cup and A157334 inner core. Tractor equipped with A154877 housing and A153278 shaft must use A50324 cup and A154885 inner cone. Tractor equipped with A154877 housing and A155225 shaft must use A50324 inner cup and A34339 inner cone.

1шт.

22

A154957

OIL SEAL

- oil, rear axle (Used with A155225 shaft)

2шт.

22

A67367

OIL SEAL

- oil, rear axle (Used with A153278 shaft)

2шт.

24

26-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

BOL T- hex, 5/8 NC x 4-1/2 inch (Grade 8)

24шт.

25

A64303

WASHER

- 41/64 x 1-1/16 x 1/16 inch (16 x 27 x 2 mm)

24шт.

26

A34890

BUCKET TOOTH KEY

KEY - wheel to shaft, 5/8 square x 6 inch long (16 x 152 mm)

2шт.

27

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.
