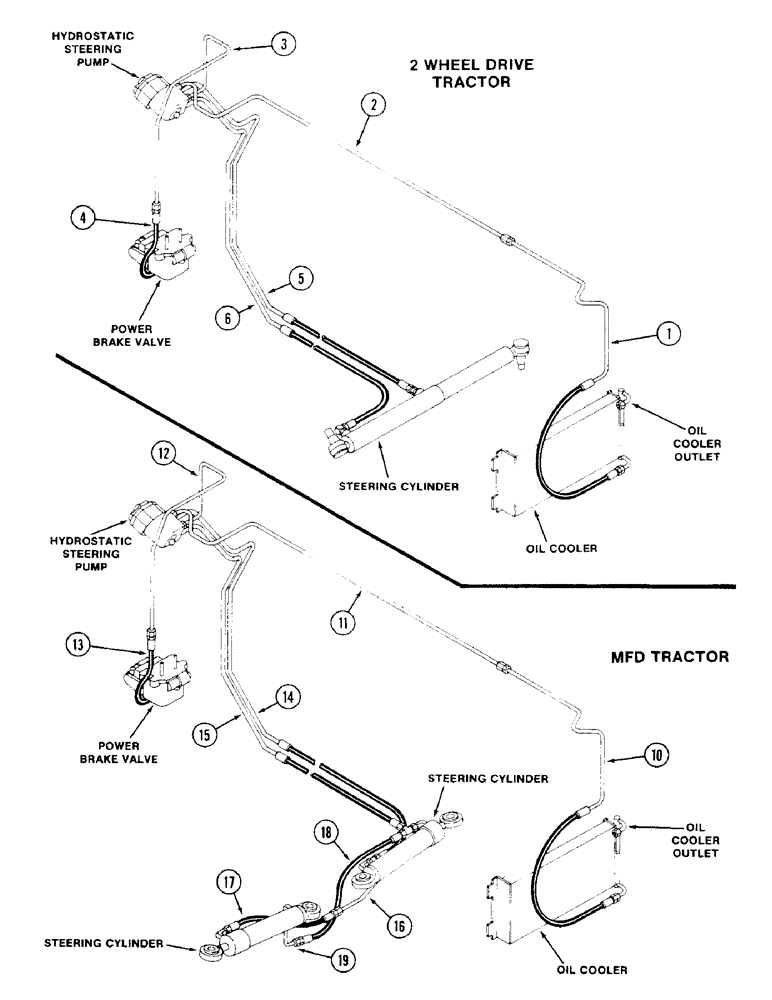

Запчасти Case IH 2090 (1-18) - PICTORIAL INDEX, STEERING HYDRAULICS, TWO WHEEL DRIVE (00) - PICTORIAL INDEX

1

A147957

HOSE

Oil Cooler Inlet Hose, Figure 5-164

1шт.

2

A147956

TUBE

Oil Cooler to Steering Pump Tube, Figure 5-164

1шт.

3

A160363

PIPE

Pump to Valve Hose Tube, Figure 5-164

1шт.

4

A140436

HOSE,0.50" ID x 24.00", SAE 100R1

- Pump Tube to Valve, Figure 5-164 0.50" ID x 24.00", SAE 100R1

1шт.

5

Left Steering Cylinder Hose, Figure 5-164

1шт.

6

Right Steering Cylinder Hose, Figure 5-164

1шт.

10

A147957

HOSE

Oil Cooler Inlet Hose, Figure 5-164, mechanical front drive (MFD)

1шт.

11

A147956

TUBE

Oil Cooler to Steering Pump Tube, Figure 5-164, mechanical front drive (MFD)

1шт.

12

A160363

PIPE

Pump to Valve Hose Tube, Figure 5-164, mechanical front drive (MFD)

1шт.

13

A140436

HOSE,0.50" ID x 24.00", SAE 100R1

- Pump Tube to Valve, Figure 5-164, Mechanical front drive (MFD) 0.50" ID x 24.00", SAE 100R1

1шт.

14

Left Steering Cylinder Hose, Figure 5-164, mechanical front drive (MFD)

1шт.

15

Right Steering Cylinder Hose, Figure 5-164, mechanical front drive (MFD)

1шт.

16

A163194

TUBE

Left Steering Tube, Figure 5-166, mechanical front drive (MFD)

1шт.

17

A164626

HYDRAULIC HOSE,0.50" ID x 22.90", SAE 100R2 per SAE 517

0.50" x 22.90", SAE 100R2 per SAE J517 - Steering, Figure 5-166, Mechanical front drive (MFD)

1шт.

18

A164626

HYDRAULIC HOSE,0.50" ID x 22.90", SAE 100R2 per SAE 517

0.50" x 22.90", SAE 100R2 per SAE J517 - Steering, Figure 5-166, Mechanical front drive (MFD)

1шт.

19

A163195

TUBE

Right Steering Tube, Figure 5-166, mechanical front drive (MFD)

1шт.
