Запчасти Case IH 2090 (6-280) - PARKING LOCK SHAFT AND GEAR, PRIOR TO TRANSMISSION SERIAL NUMBER 10237494 (06) - POWER TRAIN

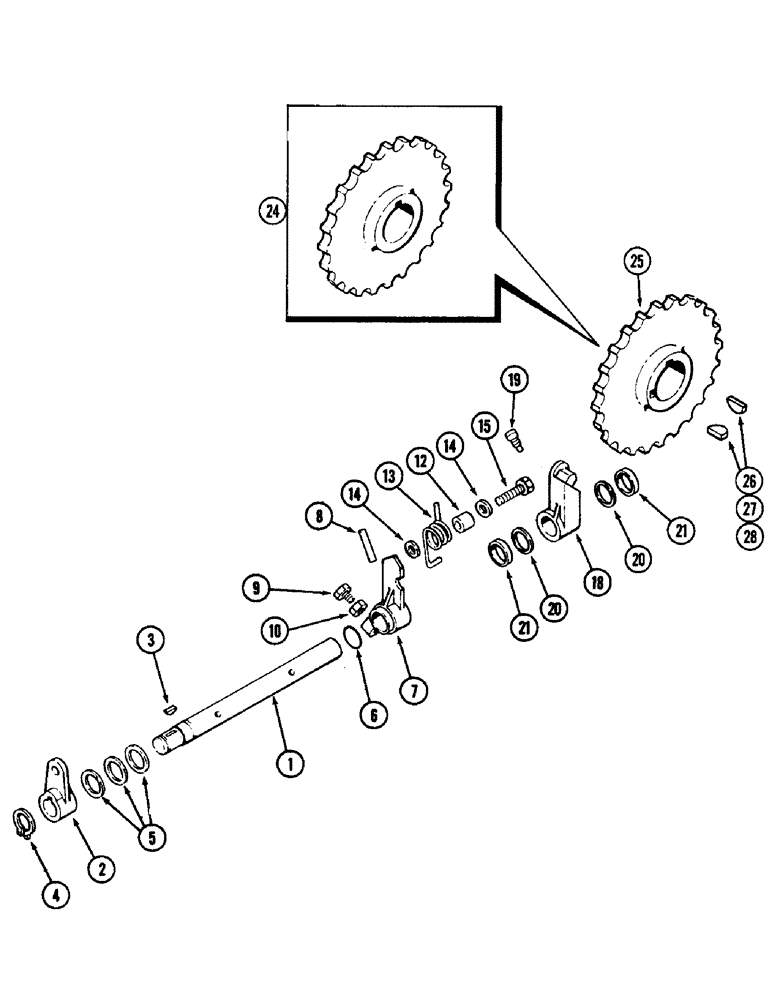

Схема запчастей Case IH 2090 - (6-280) - PARKING LOCK SHAFT AND GEAR, PRIOR TO TRANSMISSION SERIAL NUMBER 10237494 (06) - POWER TRAIN
28
2
24
21
18
9
14
10
8
19
13
6
25
14
21
4
7
1
15
20
12
5
3
26
20
27

Артикул

Название

Примечание

Количество

1

A152262

SHAFT

- actuator, parking lock mechanism

1шт.

2

A67298

LEVER

- shaft operating

1шт.

3

126-118

WOODRUFF KEY,#10, 5/32" x 7/8", HT

KEY - Woodruff, 5/32 x 7/8 inch (4 x 22 mm)

1шт.

4

F62023

SNAP RING,#93, Ext

Ring, Snap, #93, Ext

1шт.

5

A155861

WASHER,25.78mm ID x 31.75mm OD x 0.99mm Thk

SHIM - 0.036 inch (0.814 mm) thick

1шт.

6

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

- 13/16 x 1 x 3/32 inch (21 x 25 x 2 mm)

1шт.

7

A152271

LEVER

- detent

1шт.

8

138-2040

PIN,1/4" x 1 1/2", Coiled

- spirol, 1/4 x 1-1/4 inch

1шт.

9

123-204

BOLT,Hex, 3/8"-16 x 2 1/2", G5, Full Thd

- self-tapping, 3/8 x 2-1/2 inch

1шт.

10

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex jam, 3/8 inch NC

1шт.

12

A154464

SLEEVE

- spring bolt

1шт.

13

A154463

SPRING

- torsion

1шт.

14

195-29

WASHER,7/16"

- 15/32 x 59/64 x 1/16 inch (12 x 23 x 2 mm)

2шт.

15

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

18

A154527

PAWL

LEVER - parking lock gear stop

1шт.

19

181-245

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW - square head, set, 3/8-16 x 3/4 inch

1шт.

20

A155861

WASHER,25.78mm ID x 31.75mm OD x 0.99mm Thk

SHIM - lever, 0.036 inch (0.814 mm) thick

1шт.

21

A155862

SHIM

SPACER - lever, 0.35 inch (9 mm) thick

1шт.

24

A154376

GEAR

- parking lock, countershaft (Order Ref. 25, 26, 27 and 28)

1шт.

25

A155608

GEAR

- parking lock, countershaft (Has 2 keyways)

1шт.

26

A155609

KEY

- 0.3225 inch (8.19 mm) thick

1шт.

27

A155643

KEY

- 0.3145 inch (7.99 mm) thick

1шт.

28

126-136

WOODRUFF KEY,#23, 5/16" x 1 3/8", HT

KEY - 0.3125 inch (7.94 mm) thick

1шт.

Выбрано товаров: 23
