Запчасти Case IH 2090 (6-266) - TRANSFER GEARBOX, MFD TRACTORS (06) - POWER TRAIN

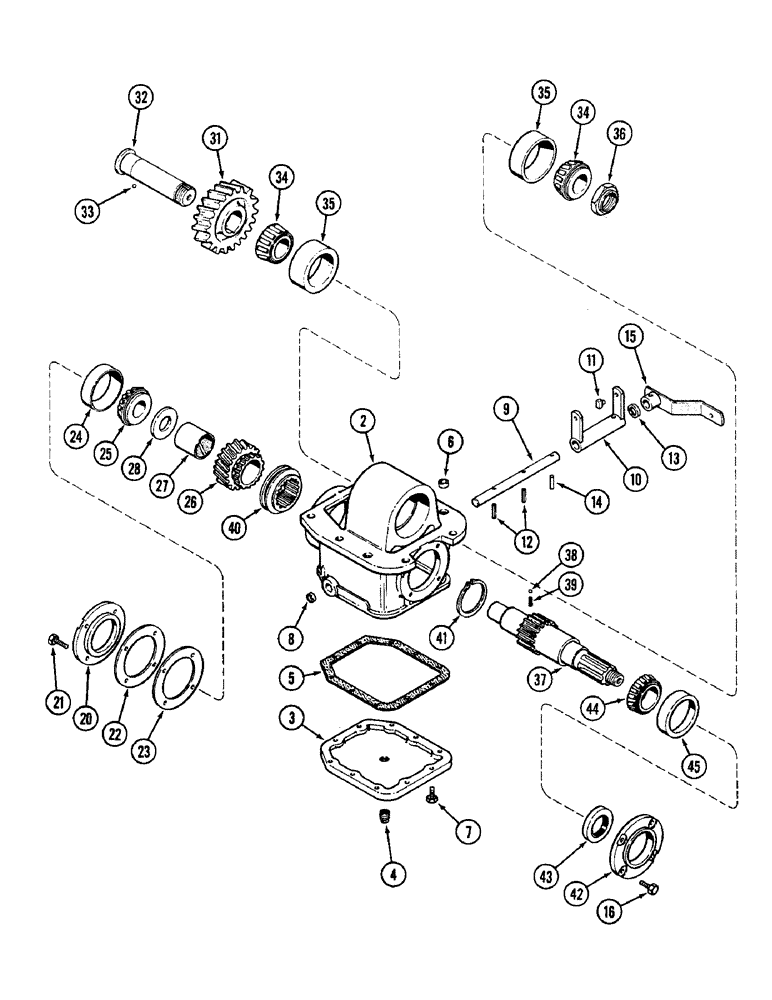

Схема запчастей Case IH 2090 - (6-266) - TRANSFER GEARBOX, MFD TRACTORS (06) - POWER TRAIN
42
45
34
2
28
38
15
11
27
4
21
31
8
16
22
13
37
40
5
44
43
7
14
25
36
12
10
24
23
20
3
32
35
35
9
26
34
6
39
41
33

Артикул

Название

Примечание

Количество

A156674

GEARBOX

ASSEMBLY - transfer (Carraro no. 113040) (Order A168842), Includes: Ref. 2 - 45

1шт.

2

A156355

HOUSING

- transfer gearbox (Carraro no. 112824) (Order A168844)

1шт.

3

A156588

COVER

- gearbox, bottom (Carraro no. 112828)

1шт.

4

A156873

PLUG, DRAIN,M22 x 1.5

(Carraro 92270) M22 x 1.5

1шт.

5

A157216

GASKET

- cover (Carraro no. 110718)

1шт.

6

A156567

PIN

RING - dowel (Carraro no. 97191)

2шт.

7

813-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, M6 x 1 x 20 mm

10шт.

8

A157155

PLUG

- rail

1шт.

9

A156582

RAIL

- shift fork (Carraro no. 110704)

1шт.

10

A156580

FORK

- shift (Carraro no. 109971)

1шт.

11

A156581

PAD

- shift fork (Carraro no. 72403)

2шт.

12

138-2053

PIN,1/4" x 1 1/4", Coiled

Rail 1/4" x 1 1/4", Coiled

2шт.

13

A157101

OIL SEAL

- rail oil

1шт.

14

A157229

SPLIT PIN/SAFETY PIN

PIN - lever retaining groove

1шт.

15

A156583

LEVER

- shift external (Carraro no. 98901)

1шт.

16

813-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex, M10 x 1.5 x 25 mm

4шт.

20

A156584

COVER

- gearbox, rear (Carraro no. 112830)

1шт.

21

813-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex, M10 x 1.5 x 25 mm

4шт.

22

A156587

SHIM

- rear cover, 0.002 inch (0.05 mm) (Carraro no. 113018)

1шт.

23

A156586

SHIM

- rear cover 0.005 inch (0.13 mm) (Carraro no. 113017)

1шт.

24

A138433

BEARING CUP

CUP - bearing

1шт.

25

A156596

ROLLER BEARING,1.625" ID x 1.1563"

CONE - output shaft, rear

1шт.

26

A156573

GEAR

ASSEMBLY - output, 22 teeth (Carraro no. 113005), Includes: Ref. 27

1шт.

27

A156575

BUSHING

- output gear (Carraro no. 109979)

1шт.

28

A156576

WASHER

- thrust (Carraro no. 113006)

1шт.

31

A157333

GEAR

- idler, 32 teeth

1шт.

32

A157332

SHAFT

- idler

1шт.

33

211-7

BALL,1/4" Dia

- gear retaining (6 mm) 1/4" Dia

1шт.

34

40436

ROLLER BEARING,1.9375" ID x 1.751"

CONE - idler shaft

2шт.

35

NNA40435

BEARING CUP,103.2mm OD x 36.51mm W

CUP - IDLER SHAFT

2шт.

36

A156571

NUT

- bearing adjusting (Carraro no. 113003)

1шт.

37

A156572

SHAFT

- output (Carraro no. 113004)

1шт.

38

211-7

BALL,1/4" Dia

- detent (6 mm) 1/4" Dia

3шт.

39

A156579

SPRING

- detent (Carraro no. 97199)

3шт.

40

A156578

COLLAR

- shift (Carraro no. 109962)

1шт.

41

A157130

RING

- retaining snap

1шт.

42

A156585

COVER

- gearbox, front

1шт.

43

A156577

OIL SEAL

- output shaft oil (Replaces A157115)

1шт.

44

S113921

TAPERED BEARING

CONE - output shaft, front

1шт.

45

A138433

BEARING CUP

CUP - bearing

1шт.

Выбрано товаров: 40
