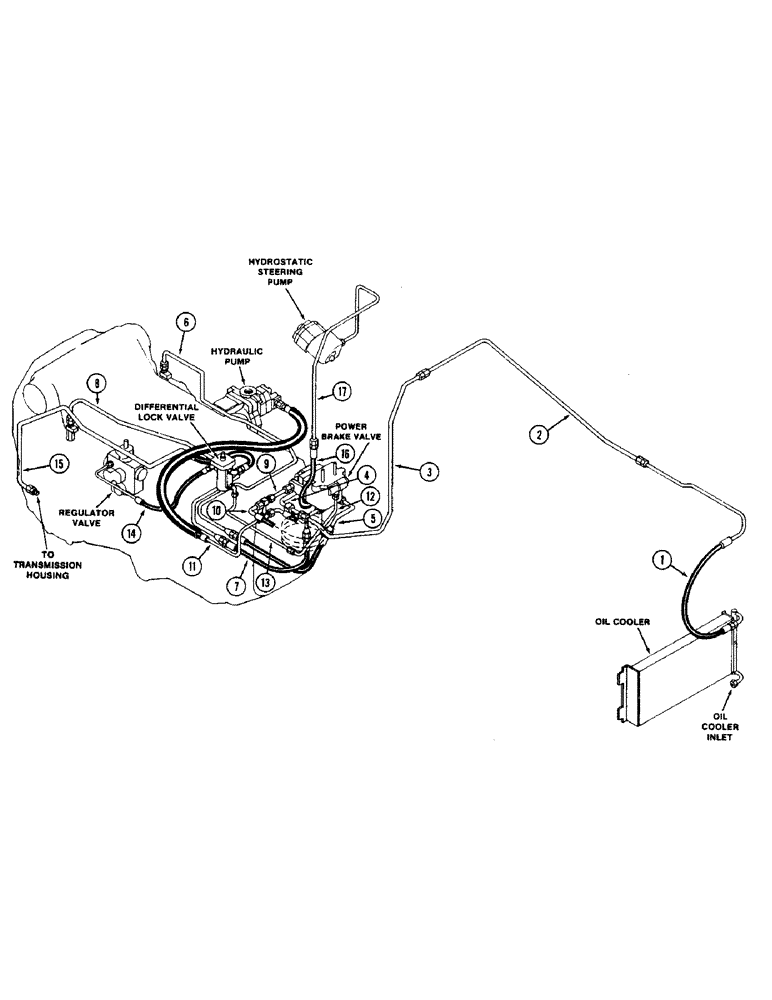

Запчасти Case IH 2090 (1-16) - PICTORIAL INDEX, BRAKE HYDRAULICS (00) - PICTORIAL INDEX

1

A147958

TUBE

Oil Cooler Outlet Tube, Figure 5-164

1шт.

2

NLS

NO LONGER SERVICED

Oil Cooler Outlet Center Tube, Figure 5-164

1шт.

3

A147699

TUBE

Oil Cooler Outlet to Brake Valve Tube, Figure 5-164

1шт.

4

Brake Valve Sump Manifold Tube, Page 5-165

1шт.

5

NSS

NOT SOLD SEPARAT

Left Front Brake Hose, Figure 7-326

1шт.

6

A149541

TUBE

Left Rear Brake Tube, Figure 7-326

1шт.

7

NSS

NOT SOLD SEPARAT

Right Front Brake Hose, Figure 7-326

1шт.

8

A149540

TUBE

Right Rear Brake Tube, Figure 7-326

1шт.

9

A149931

TUBE

Valve Inlet Tube, Figure 7-328

1шт.

10

A161248

HOSE

Wave Delay Hose, Figure 7-328

1шт.

11

A149940

HOSE

Hydraulic Pump to Valve Hose, Figure 7-328

1шт.

12

A160129

TUBE

Front Brake Valve to Lock Valve Tube, Figure 7-342

1шт.

13

A163860

TUBE

Rear Brake Valve to Lock Valve Tube, Figure 7-342

1шт.

14

A160081

HOSE

Regulator Valve to Differential Lock Valve Hose, Figure 7-342

1шт.

15

A160082

HOSE

Lock Valve to Transmission Housing Hose, Figure 7-342

1шт.

16

A140436

HOSE,0.50" ID x 24.00", SAE 100R1

- Pump Tube to Valve, Figure 5-164 0.50" ID x 24.00", SAE 100R1

1шт.

17

A160363

PIPE

Pump to Valve Hose Tube, Figure 5-164

1шт.
