Запчасти Case IH 2090 (6-250) - MECHANICAL SHIFT TRANSMISSION, PARKING LOCK CONTROL (06) - POWER TRAIN

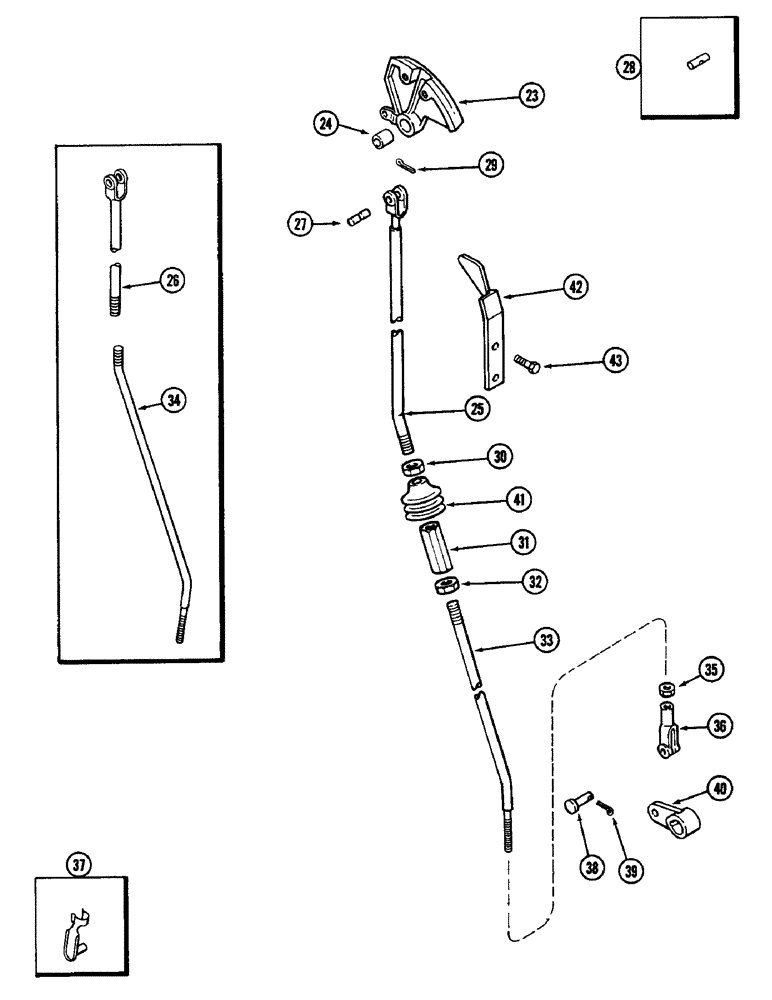

Схема запчастей Case IH 2090 - (6-250) - MECHANICAL SHIFT TRANSMISSION, PARKING LOCK CONTROL (06) - POWER TRAIN
40
30
37
41
34
39
36
28
27
25
24
43
33
42
26
35
23
31
29
32
38

Артикул

Название

Примечание

Количество

23

A160497

QUADRANT

ASSEMBLY - parking lock (Order A161147 and A145484), Includes: Ref. 24

1шт.

23

A161147

QUADRANT

ASSEMBLY - parking lock (Replaces A160497), Includes: Ref. 24

1шт.

24

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- pivot

1шт.

25

A161809

ROD

- park lock, upper (P.I.N. 9906292 and after)

1шт.

26

A143673

ROD

- upper, includes yoke (Prior to P.I.N. 9906292)

1шт.

27

A145484

PIN,9.46mm OD x 28.57mm L

- rod to quadrant (With groove used with A161147)

1шт.

28

A59258

PIN

- rod to quadrant (With center hole used with A160497)

1шт.

29

132-36

COTTER PIN,Ext Prong Sq Cut, 3/32" x 2"

Pin, Split (Cotter), (2 x 51 MM) 3/32" x 2"

1шт.

30

129-165

JAM NUT,Jam, 1/2"-20, G5

(RH thread) Jam, 1/2"-20, G5

1шт.

31

A145050

TURNBUCKLE

- control rod

1шт.

32

129-376

NUT,Jam, 1/2"-20, G5, LH

- hex jam, 1/2 inch NF (Left-hand thread)

1шт.

33

A161810

ROD

- park lock, lower (P.I.N. 9906292 and after)

1шт.

34

A145930

ROD

- lower (Prior to P.I.N. 9906292)

1шт.

35

129-123

NUT,3/8"-24, G5

1шт.

36

213-41

ADJUSTABLE CLEVIS,3/8"-24

- lower rod 3/8"-24

1шт.

37

A147652

PIN

- yoke (Order ref 37 and 38)

1шт.

38

141-54

CLEVIS PIN,3/8" x 1 1/16"

(Replaces A147652) 3/8" x 1 1/16"

1шт.

39

132-36

COTTER PIN,Ext Prong Sq Cut, 3/32" x 2"

Pin, Split (Cotter), (2 x 51 MM) 3/32" x 2"

1шт.

40

REF

INSTRUCTION

LEVER - parking lock shaft, See Figures 6-280 and 6-282

1шт.

41

A145931

BELLOWS

GROMMET - rod

1шт.

42

A141543

BRACKET

- guide, hand lever

1шт.

43

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

BOLT - hex self-tapping, 1/4 NC x 3/4 inch

2шт.

Выбрано товаров: 22
