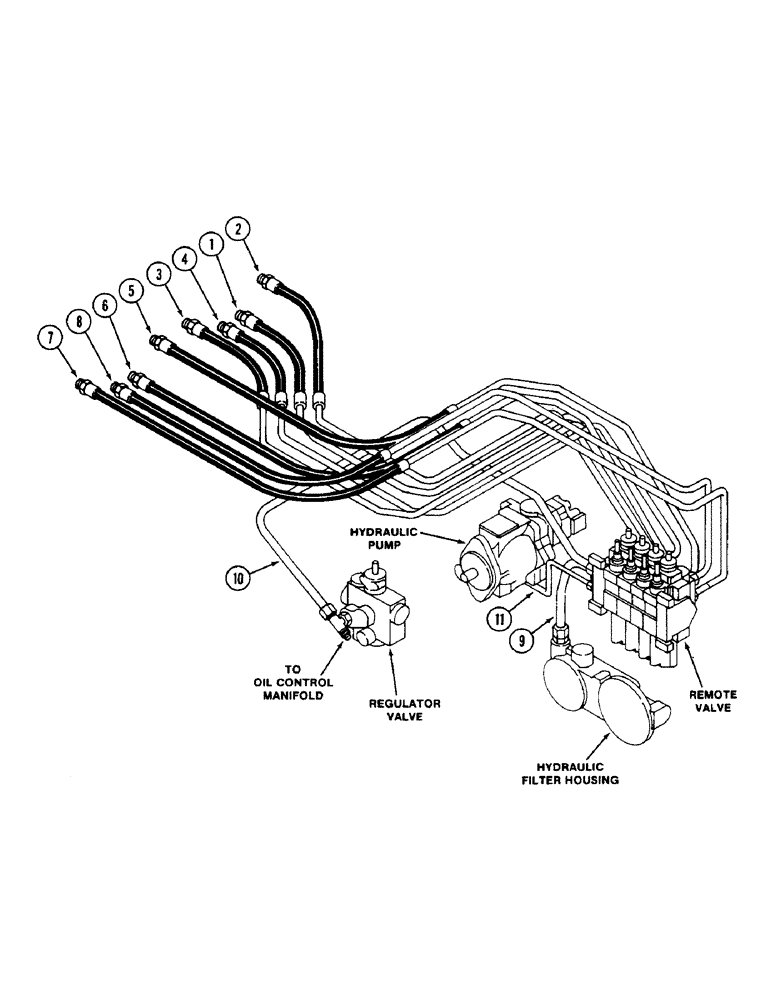

Запчасти Case IH 2090 (1-14) - PICTORIAL INDEX, REMOTE HYDRAULICS (00) - PICTORIAL INDEX
1
6
4
3
2
8
7
10
11
5
9
№
Артикул
Название
Примечание
Количество
1
A145901
HOSE
No. 1 Remote Coupling Hose, Figure 8-404
1шт.
2
A145902
HOSE
No. 2 Remote Coupling Hose, Figure 8-404
1шт.
3
A145903
HOSE
No. 3 Remote Coupling Hose, Figure 8-404
1шт.
4
A145904
HOSE
No. 4 Remote Coupling Hose, Figure 8-404
1шт.
5
A145905
HOSE
No. 5 Remote coupling Hose, Figure 8-408
1шт.
6
A145906
HOSE
No. 6 Remote Coupling Hose, Figure 8-408
1шт.
7
A145907
HOSE
No. 7 Remote Coupling Hose, Figure 8-424
1шт.
8
A145908
HOSE
No. 8 Remote Coupling Hose, Figure 8-424
1шт.
9
A147058
TUBE
Remote Valve Filter Housing Tube, Figure 8-404
1шт.
10
REF
INSTRUCTION
Regulator Valve to Remote Valve Tube, Figure 8-404
1шт.
11
A164627
TUBE
Pump to Remote Valve Tube, Figure 8-364
1шт.
Выбрано товаров: 11
