Запчасти Case IH 2090 (6-244) - MECHANICAL SHIFT TRANSMISSION, MASTER CLUTCH VALVE ASSEMBLY (06) - POWER TRAIN

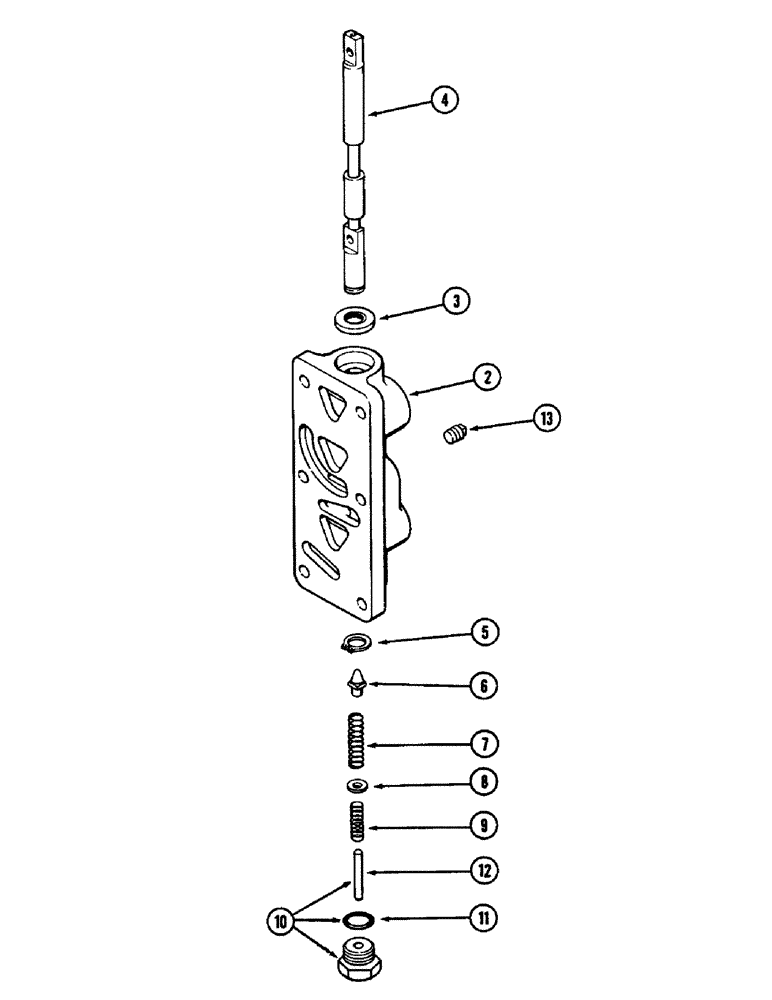

Схема запчастей Case IH 2090 - (6-244) - MECHANICAL SHIFT TRANSMISSION, MASTER CLUTCH VALVE ASSEMBLY (06) - POWER TRAIN
7
2
13
12
3
8
6
5
4
9
10
11

Артикул

Название

Примечание

Количество

A152648

VALVE ASSEMBLY - master clutch, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve (Reference no. A152646)

1шт.

3

A37558

SEAL,14.27mm ID x 28.7mm OD x 6.73mm Thk

- spool

1шт.

4

A151914

SPOOL

- valve

1шт.

5

G46176

SNAP RING,#56, Ext

Ring, Snap, , spool #56, Ext

1шт.

A60155

SPRING

POINT ASSEMBLY, Includes: Ref. 6 & 7

1шт.

6

NSS

NOT SOLD SEPARAT

POINT - modulator

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - modulator primary, 15/16 inch OD (24 mm) x 1-5/8 inch free length (41 mm)

1шт.

8

A61989

WASHER,4.95mm ID x 9.27mm OD x 1.02mm Thk

- spring guide, 13/64 x 23/64 x 3/64 inch (5 x 9 x 1 mm)

1шт.

9

A61988

SPRING

- modulator secondary, 17/64 inch OD (7 mm) x 3/4 inch free length (19 mm), Includes: Ref. 10 - 13

1шт.

10

A61985

PLUG

ASSEMBLY - modulator, Includes: Ref. 11 & 12

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32 inch (19 x 23 x 2 mm)

1шт.

12

NSS

NOT SOLD SEPARAT

PIN - spring guide

1шт.

13

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - square head, 1/8 inch PT (Order 221-1849)

1шт.

Выбрано товаров: 14
