Запчасти Case IH 2090 (6-242) - MECHANICAL SHIFT TRANSMISSION, MASTER CLUTCH (06) - POWER TRAIN

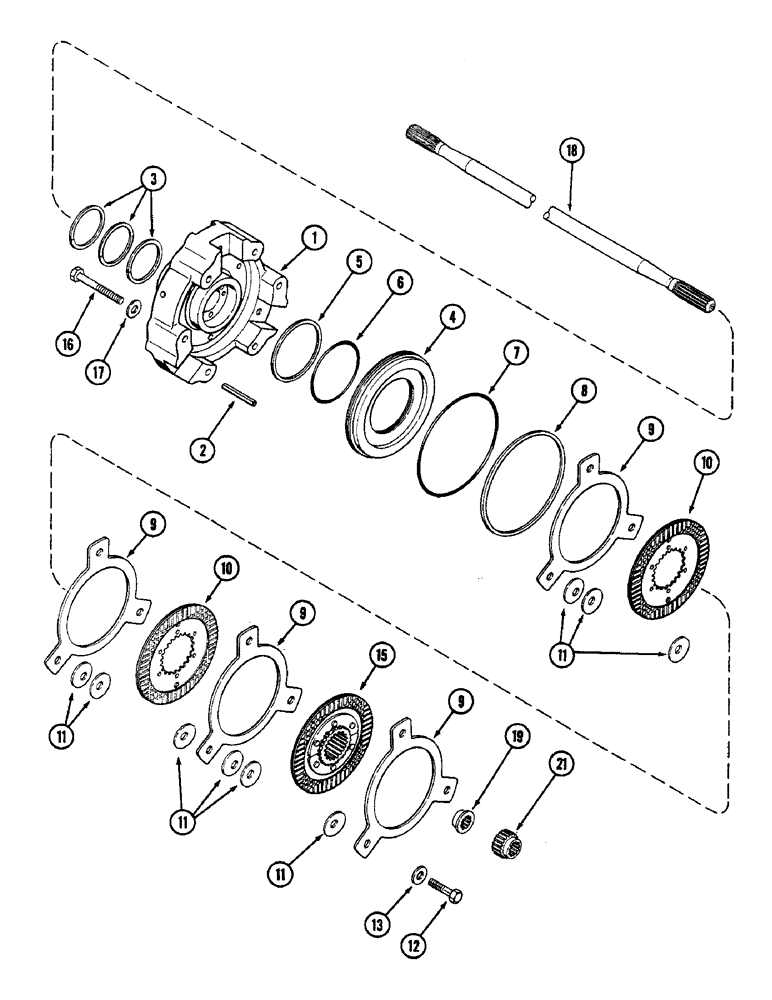

Схема запчастей Case IH 2090 - (6-242) - MECHANICAL SHIFT TRANSMISSION, MASTER CLUTCH (06) - POWER TRAIN
5
16
9
12
10
11
17
13
11
2
21
19
18
7
11
4
9
15
1
11
9
3
8
9
10
6

Артикул

Название

Примечание

Количество

1

A150684

CARRIER

ASSEMBLY - piston, master clutch, Includes: Ref. 2

1шт.

2

138-191

LOCK PIN,7/16" x 2 1/4", Slotted

Pin, (11 x 57 mm) 7/16" x 2 1/4", Slotted

3шт.

3

A152204

RING

- seal

3шт.

4

A150955

PISTON

- clutch

1шт.

5

A146683

RING

- seal, 4-15/32 ID x 7/64 inch square (114 mm x 3 mm)

1шт.

6

A150754

O-RING,4.718" ID x 0.107"

- 4-11/16 x 4-25/32 x 3/32 inch (119 x 121 x 2 mm)

1шт.

7

A150753

O-RING,7.84" ID x 0.107"

- 7-13/16 x 7-29/32 x 3/32 inch (198 x 201 x 2 mm)

1шт.

8

A146682

RING

- seal, 8-9/32 OD x 7/64 inch square (210 x 3 mm)

1шт.

9

A152131

PLATE

- master clutch, steel

5шт.

10

A154173

PLATE

- master clutch, sintered (Replaced A151247)

5шт.

11

A151007

SPRING

- plate (Replaces A154506)

36шт.

12

13-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

3шт.

13

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

3шт.

15

A154174

HUB

- master clutch (Replaces A151980)

1шт.

16

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

- hex, 1/2 NC x 4-1/2 inch

6шт.

17

A30061

WASHER

- 17/32 x 15/16 x 1/16 inch (13 x 24 x 2 mm)

6шт.

18

A156861

SHAFT

- PTO drive, front (Replaces A150822)

1шт.

19

A65415

BUSHING,17T

- drive shaft gear

1шт.

21

A66609

SLEEVE

- PTO front drive shaft (Replaces A150854)

1шт.

Выбрано товаров: 19
