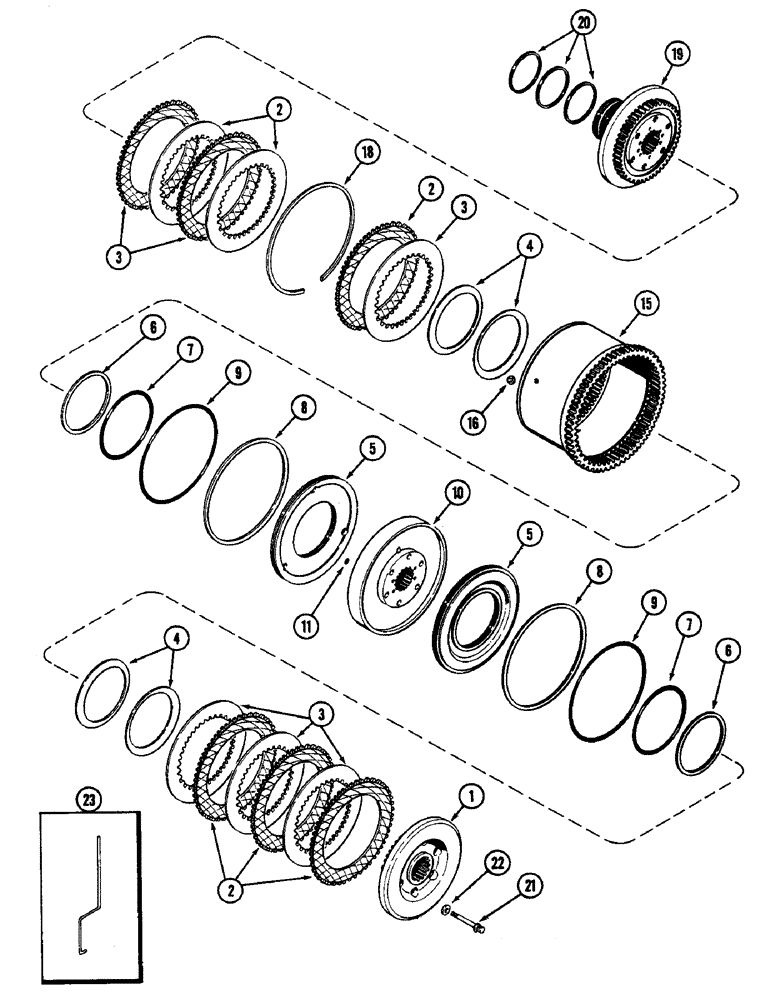

Запчасти Case IH 2090 (6-230) - POWER SHIFT TRANSMISSION, (C2) AND (C3) CLUTCHES (06) - POWER TRAIN

1

A67366

HUB

- (C2) clutch

1шт.

2

A61981

PLATE

- clutch, sintered

6шт.

3

A155461

PLATE

- clutch (Replaces A155276)

6шт.

4

A58094

SPRING

- clutch return

4шт.

5

A146670

PISTON

- (C2) and (C3)

2шт.

6

A146683

RING

- seal, internal, 4-15/32 inch ID (114 mm)

2шт.

Part of Seal Kit, P/N A46286, Figures 6-226 and 6-230

1шт.

7

A150754

O-RING,4.718" ID x 0.107"

RING - internal seal, 11/16 inch ID (119 mm)

2шт.

Part of Seal Kit, P/N A46286, Figures 6-226 and 6-230

1шт.

8

A146682

RING

- seal, external, 8-9/32 inch OD (210 mm)

2шт.

Part of Seal Kit, P/N A46286, Figures 6-226 and 6-230

1шт.

9

A150753

O-RING,7.84" ID x 0.107"

RING - external seal, 7-7/8 inch OD (200 mm)

2шт.

Part of Seal Kit, P/N A46286, Figures 6-226 and 6-230

1шт.

10

A148688

CARRIER

- (C2) and (C3)

1шт.

11

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RNG - 19/64 x 7/16 x 1/16 inch (8 x 11 x 2 mm)

4шт.

Part of Seal Kit, P/N A46286, Figures 6-226 and 6-230

1шт.

15

A58412

GEAR

- ring

1шт.

16

A58413

BUTTON

BEARING - button, planetary ring gear

3шт.

18

A58079

RING,226.49mm ID x 233.35mm OD x 3.43mm Thk

- snap, clutch retaining ring gear

1шт.

19

A142234

HUB

- (C3) clutch

1шт.

20

A58384

RING

- oil distributor piston

3шт.

21

A67365

SCREW,3/8" - 16 x 2-3/4", Gr 8

- hub retaining

6шт.

22

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- 7/16 x 3/4 x 1/32 inch (11 x 19 x 1 mm)

6шт.

23

A43110

TOOL

HOLDER - clutch plate (Service tool)

2шт.

A46286

SEAL KIT,Power Shift

KIT - seal, Includes: Ref. 6, 7, 8, 9, and 11 on Figure 6-226 and parts on Figure 6-230

1шт.
