Запчасти Case IH 2090 (6-228) - POWER SHIFT TRANSMISSION, CLUTCH PLANETARY (06) - POWER TRAIN

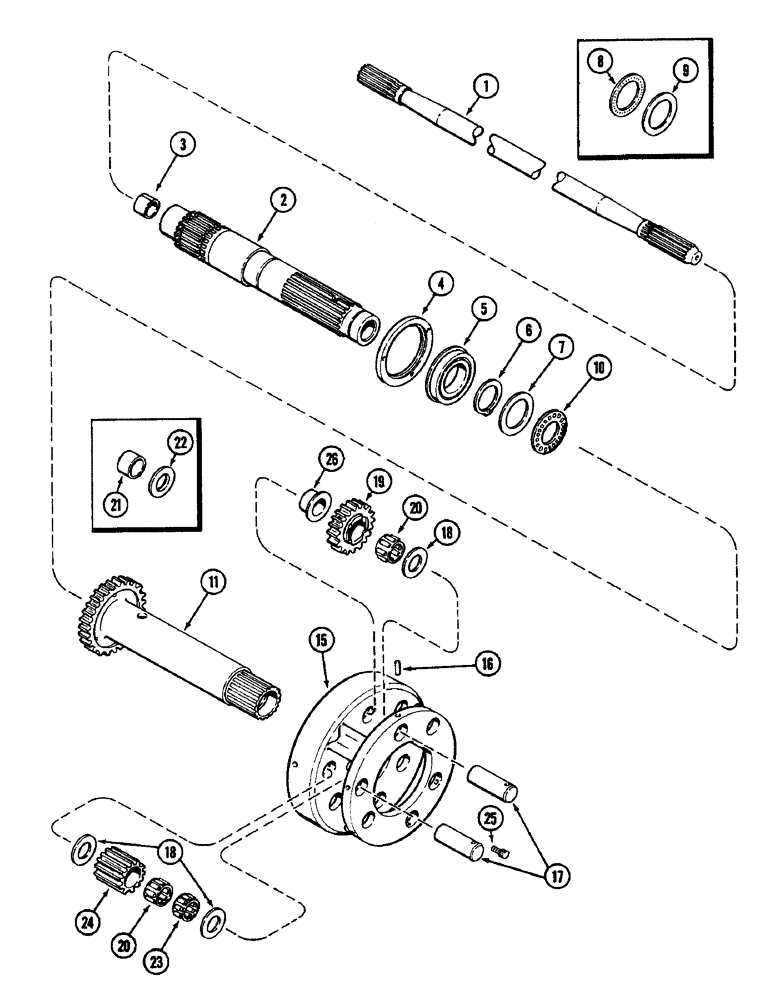

Схема запчастей Case IH 2090 - (6-228) - POWER SHIFT TRANSMISSION, CLUTCH PLANETARY (06) - POWER TRAIN
20
15
24
19
18
23
9
22
10
7
25
20
4
1
16
18
26
6
8
17
3
11
21
2
5

Артикул

Название

Примечание

Количество

1

A156861

SHAFT

- input, power and PTO drive, front (Replaces A150822)

1шт.

2

A142232

SHAFT

ASSEMBLY - pinion drive (Order A168013)

1шт.

3

A156939

BUSHING,31.83mm ID x 35.88mm OD x 19.05mm L

- PTO shaft support (Replaces A65421)

1шт.

4

A146603

RETAINER

- carrier bearing

1шт.

5

A63109

BEARING, BALL

BEARING - ball, carrier, Includes: snap ring

1шт.

6

A7611

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

1шт.

7

A54021

WASHER

RACE - thrust, 1-3/4 x 2-1/2 x 3/32 inch (44 x 64 x 2 mm)

1шт.

8

A54022

THRUST BEARING,44.56mm ID x 63.13mm OD x 1.98mm W

BEARING - needle, thrust

1шт.

9

H147785

BEARING WASHER

WASHER - thrust bearing, 1-3/4 x 2-1/2 x 1/32 inch (44 x 64 x 1 mm)

1шт.

10

A154648

THRUST BEARING,44.5mm ID x 66.04mm OD x 2.69mm W

BEARING - flanged, needle thrust (Replaces A54022 and H147785)

1шт.

11

A158704

SHAFT

- planetary input drive (Replaces A148777)

1шт.

15

A148690

CARRIER

- planetary (Order A168487)

1шт.

16

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, (5 x 19 mm) 3/16" x 3/4", Slotted

6шт.

17

A58067

PIN,25.4mm OD x 69.6mm L

- planetary gear

6шт.

18

A58070

WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk

RACE - thrust, planetary gear, 1 x 1-3/4 x 1/32 inch (25 x 44 x 1 mm)

6шт.

19

A58405

GEAR

- planetary, short (36 teeth) 1" Long

3шт.

20

A58077

ROLLER BEARING,25.395 mm ID x 33.3578 mm OD x 25.21 mm

BEARING - roller, planetary gear, 1 x 1-5/16 x 1-1/4 inch (25 x 33 x 32 mm)

6шт.

21

A58407

BUSHING

SPACER - short gear, 1 x 1-1/4 x 49/64 inch (26 x 32 x 19 mm) (Order A140878)

3шт.

22

A150410

SPACER

RACE - thrust, short gear, 1 x 1-3/4 x 3/32 inch (26 x 44 x 2 mm) (Order A140878)

3шт.

23

A58069

NEEDLE BEARING,25.39mm ID x 33.37mm OD x 19.05mm W

BEARING - roller, planetary gear, 1 x 1-5/16 x 1 inch (25 x 33 x 25 mm)

3шт.

24

A58408

GEAR

- planetary, long (24 teeth) (2-5/16 inch long) (59 mm)

3шт.

25

62-410

HEX SOC SCREW,1/4"-28 x 5/8"

SCREW - hex socket head, 1/4-28 x 5/8 inch

3шт.

If dealer is looking for a .500" long screw for this application - order 62-3258.

1шт.

26

A140878

SPACER

- flanged, short gear (Replaces A58407 and A150410)

3шт.

Выбрано товаров: 24
