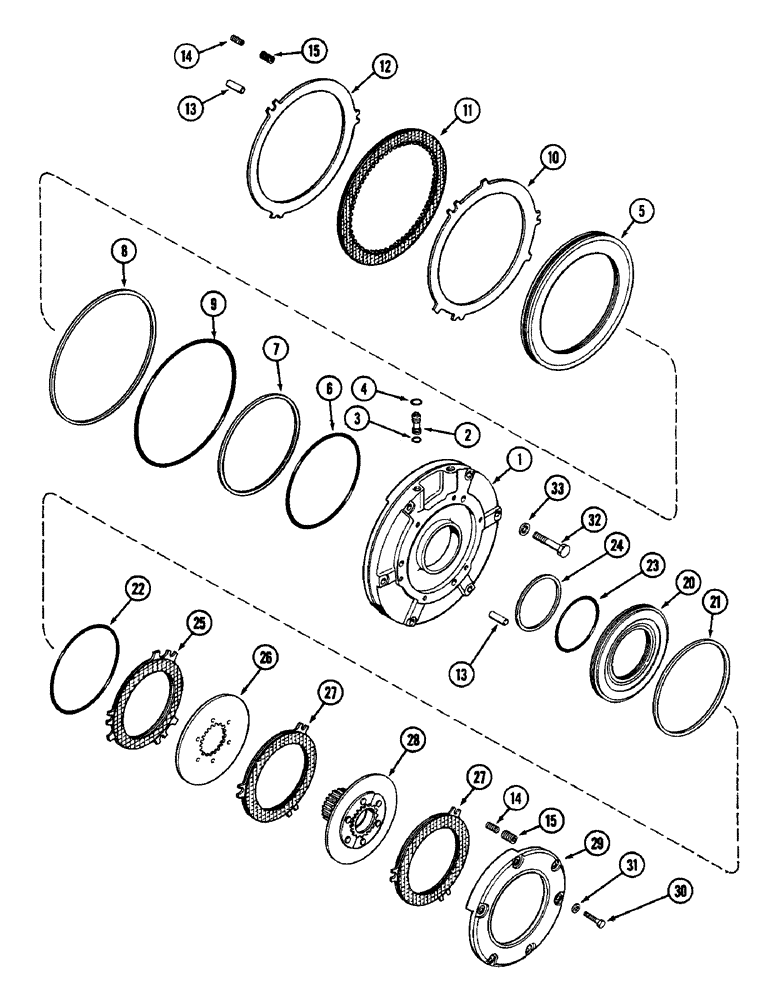

Запчасти Case IH 2090 (6-226) - POWER SHIFT TRANSMISSION, (C1) AND (C4) CLUTCHES (06) - POWER TRAIN

1

A142233

CARRIER

- piston, (C1) and (C4)

1шт.

2

A142241

TUBE

- oil, (C1) and (C4) clutch

2шт.

3

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- 1/2 x 5/8 x 1/16 inch (13 x 16 x 2 mm) (Order G102845)

2шт.

Part of Seal Kit, P/N A46286, Figures 6-226 and 6-230

1шт.

4

A65918

O-RING,0.551" ID x 0.691" OD

- 9/16 x 11/16 x 1/16 inch (14 x 18 x 2 mm)

2шт.

5

A146671

PISTON

- (C4) clutch

1шт.

6

A150752

O-RING,9.206" ID x 0.107" OD

- internal seal, 9-5/32 inch ID (233 mm)

1шт.

Part of Seal Kit, P/N A46286, Figures 6-226 and 6-230

1шт.

7

A146681

SEAL

- seal, internal, 8-32/32 inch ID (228 mm)

1шт.

Part of Seal Kit, P/N A46286, Figures 6-226 and 6-230

1шт.

8

A146680

RING

- seal, internal, 12-9/16 inch OD (319 mm)

1шт.

Part of Seal Kit, P/N A46286, Figures 6-226 and 6-230

1шт.

9

A150751

O-RING,12.09" ID x 0.107"

RING - internal seal, 12-1/16 inch OD (306 mm)

1шт.

Part of Seal Kit, P/N A46286, Figures 6-226 and 6-230

1шт.

10

A58056

PLATE

- steel, (C4) clutch, with tabs

1шт.

11

A67128

PLATE

- friction, (C4) clutch

1шт.

12

A75105

PLATE

- steel, (C4) clutch, without tabs

2шт.

13

A65555

PIN

- clutch reaction plate (C4) 1-37/64 inch long (40 mm)

6шт.

14

A62607

SPRING

- return (C4), 23/64 inch diameter (9 mm) x 1-3/32 inch free length (28 mm)

6шт.

15

A62606

SPRING

- return (C4), 9/16 inch diameter (14 mm) x 1-3/32 inch free length (28 mm)

6шт.

20

A146670

PISTON

- (C1) clutch

1шт.

21

A146682

RING

- seal, external, 8-9/32 inch OD (210 mm)

1шт.

Part of Seal Kit, P/N A46286, Figures 6-226 and 6-230

1шт.

22

A150753

O-RING,7.84" ID x 0.107"

- external seal, 7-7/8 inch OD (200 mm)

1шт.

23

A150754

O-RING,4.718" ID x 0.107"

- internal seal, 4-11/16 inch ID (119 mm)

1шт.

Part of Seal Kit, P/N A46286, Figures 6-226 and 6-230

1шт.

24

A146683

RING

- seal, external, 4-15/32 inch ID (114 mm)

1шт.

Part of Seal Kit, P/N A46286, Figures 6-226 and 6-230

1шт.

25

A142361

PLATE

- (C1) clutch with tabs (Sintered)

1шт.

26

A152112

PLATE

- (C1) clutch, steel

1шт.

27

A142360

PLATE

- (C1) clutch, without tabs (Sintered)

2шт.

28

A152623

PLATE

- sun reaction, (C1) clutch

1шт.

3.582" Gear

1шт.

29

A142240

PLATE

- (C1) reaction

1шт.

30

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

6шт.

31

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- 7/16 x 3/4 x 1/32 inch (11 x 19 x 1 mm)

6шт.

32

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

6шт.

33

A30061

WASHER

- 17/32 x 15/16 x 1/16 inch (13 x 24 x 2 mm)

6шт.

A46286

SEAL KIT,Power Shift

KIT - seal, Includes: Ref. 3, 6, 7, 8, 9, 21, 22, 23, and 24 on Figure 6-226 and parts on Figure 6-230

1шт.
