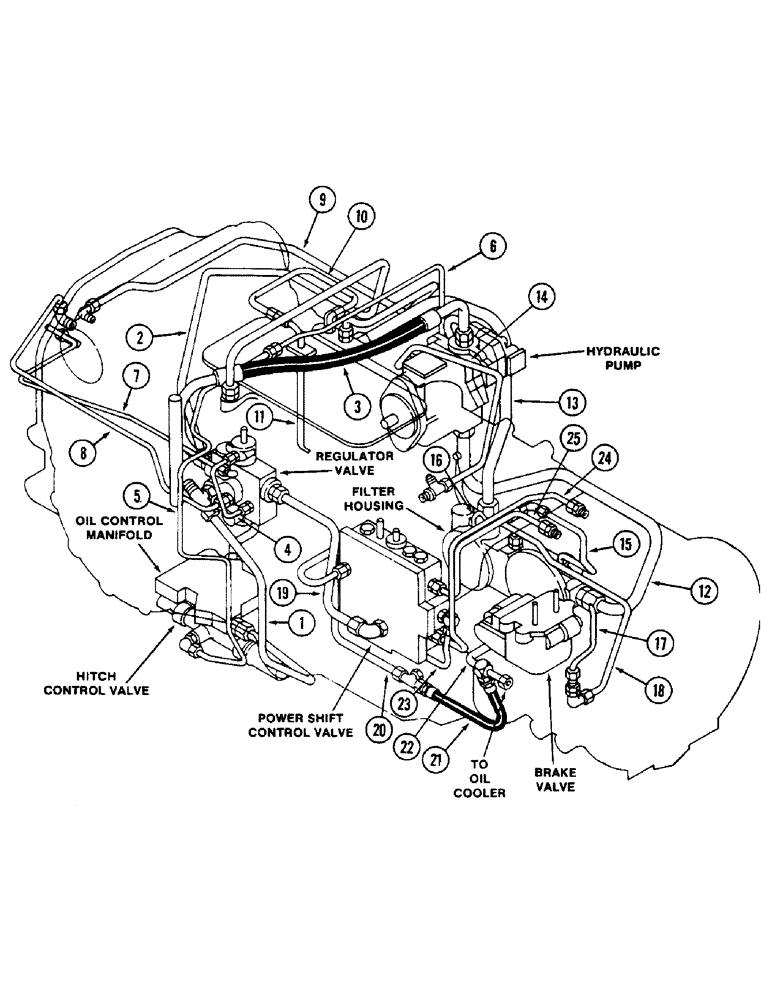

Запчасти Case IH 2090 (1-12) - PICTORIAL INDEX, MAIN HYDRAULICS, POWER SHIFT (00) - PICTORIAL INDEX

1

A162500

TUBE

Regulator Valve to Manifold Tube, Figure 8-474

1шт.

2

REF

INSTRUCTION

Manifold to Lift Cylinder Tube, Figure 8-474

1шт.

3

A160652

TUBE

Pump to Regulator Valve Hose, Figure 8-352

1шт.

4

A143612

DISTRIBUTOR

PTO Brake Drain Tube, Figure 8-352

1шт.

5

Right Hitch Valve Pilot Tube, Figure 8-364

1шт.

6

Left Hitch Valve Pilot Tube, Figure 8-364

1шт.

7

REF

INSTRUCTION

Regulator Valve to PTO Brake Tube, Figure 8-352

1шт.

8

REF

INSTRUCTION

Regulator Valve to PTO Clutch Tube, Figure 8-352

1шт.

9

A145892

TUBE

PTO from Pump Lubrication Tube, Figure 8-352

1шт.

10

A165325

PIPE

Spiral Bevel Supply Tube, Figure 6-210

1шт.

11

A165324

PIPE

Spiral Bevel Lubrication Tube, Figure 6-210

1шт.

12

A160222

TUBE

Filter to Pump Suction Tube, Figure 8-364

1шт.

13

A160224

TUBE

Transmission Charge Pump Tube, Figure 8-370

1шт.

14

Hydraulic Pump Drain Tube, Figure 8-364

1шт.

15

Transmission Countershaft Lubrication Tube, Figure 8-370

1шт.

16

Transmission Countershaft Internal Lubrication Tube, Figure 6-268

1шт.

17

Clutch Internal Lubrication Tube, Figure 6-208

1шт.

18

C1 Clutch Lubrication Tube, Figure 8-368

1шт.

19

A143816

TUBE

Regulator Valve to Control Valve Supply Tube, Figure 8-356

1шт.

20

A143815

TUBE

Transmission Sump to Control Valve Tube, Figure 8-356

1шт.

21

D57701

HOSE

Brake Valve to Sump Hose, Figure 8-356

1шт.

22

Brake Valve Outlet to Sump Tube, Page 8-355

1шт.

23

Reverse Lock-out Pilot Tube, Page 8-355

1шт.

24

A139304

TUBE

C1 Clutch Fill Tube, Figure 8-356

1шт.

25

A139305

TUBE

C4 Clutch Fill Tube, Figure 8-356

1шт.
