Запчасти Case IH 2090 (6-224) - POWER SHIFT TRANSMISSION, TORQUE LIMITER (06) - POWER TRAIN

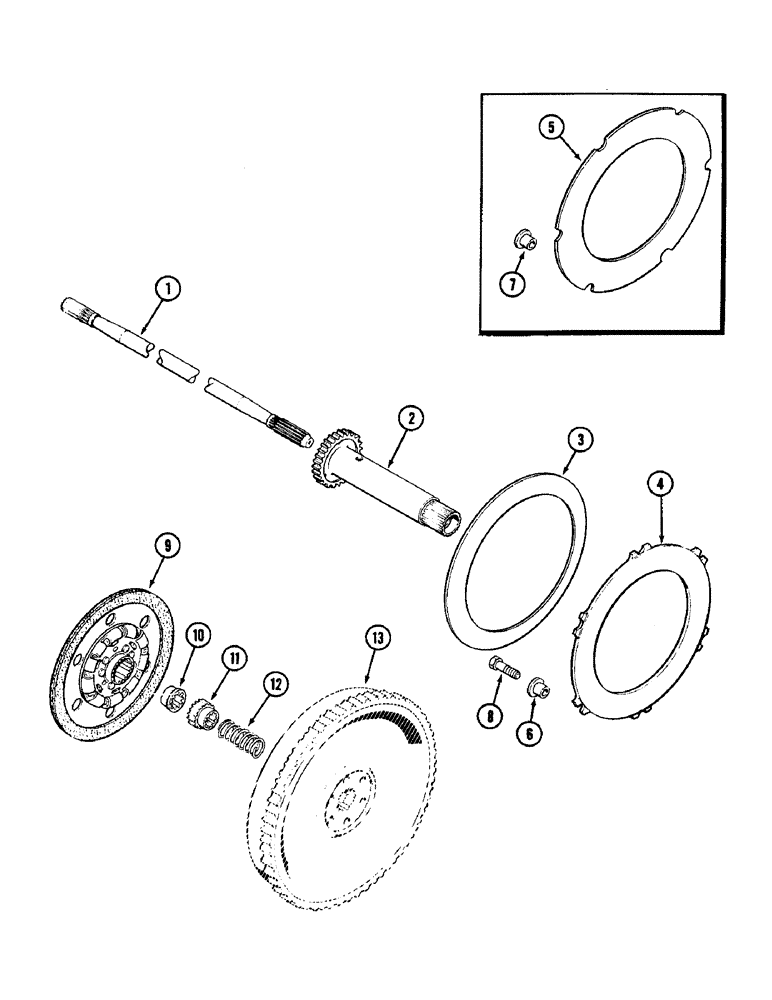

Схема запчастей Case IH 2090 - (6-224) - POWER SHIFT TRANSMISSION, TORQUE LIMITER (06) - POWER TRAIN
4
1
2
7
13
12
11
5
8
3
9
10
6

Артикул

Название

Примечание

Количество

1

A156861

SHAFT

- drive, PTO and hydraulic pump (Replaces A150822)

1шт.

2

A158704

SHAFT

- planetary drive (Replaces A148777)

1шт.

3

A61000

SPRING

- Belleville

1шт.

4

A155859

PLATE

- pressure

1шт.

5

A58036

PLATE

- pressure

1шт.

For repairs order 1-A155859 plate, 6-A155864 retainer and 6-26-832 bolt.

1шт.

6

A155864

RETAINER

- torque limiter spring, 3/4 inch long (19 mm) (Used with A155859 plate)

6шт.

7

A153850

RETAINER

- torque limiter spring, 41/64 inch long (16 mm) (Used with A58036 plate)

6шт.

8

26-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

- hex, 1/2 NC x 2 inch (Grade 8)

6шт.

9

A158037

PLATE

- torque limiter

1шт.

10

A65415

BUSHING,17T

- drive shaft

1шт.

11

A66609

SLEEVE

- drive shaft

1шт.

12

A65416

SPRING

- sleeve

1шт.

13

REF

INSTRUCTION

FLYWHEEL, See Figure 2-34

1шт.

Выбрано товаров: 14
