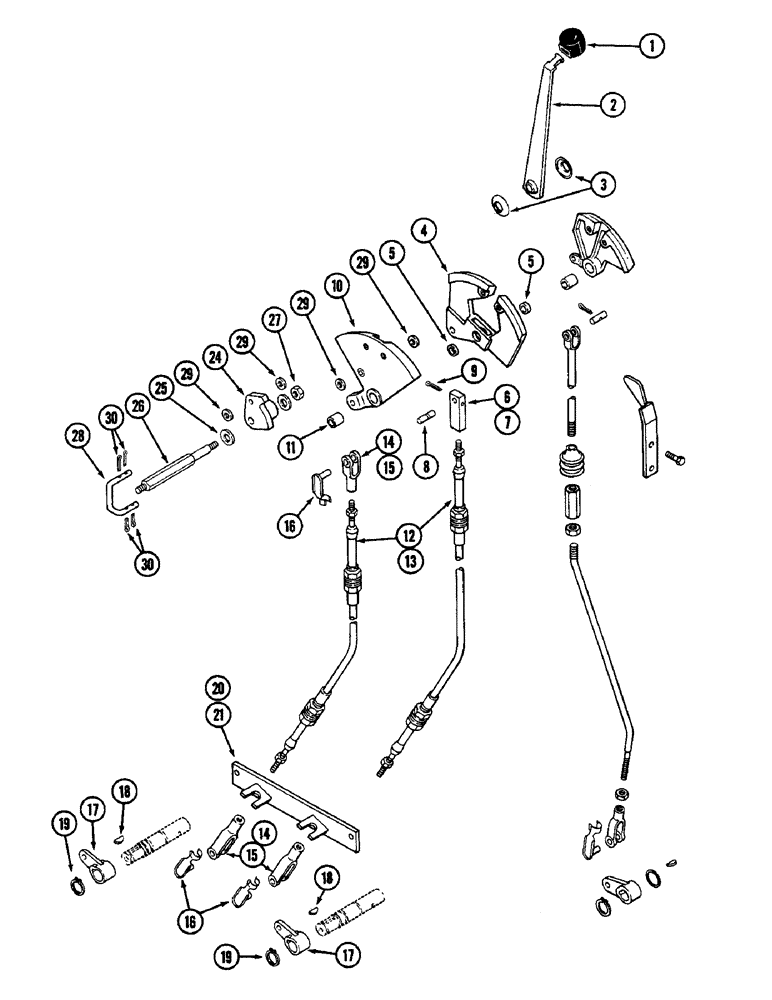

Запчасти Case IH 2090 (6-216) - POWER SHIFT TRANSMISSION, GEAR SHIFT LINKAGE (06) - POWER TRAIN

1

A137806

KNOB

- hand lever

1шт.

2

A149899

LEVER

- hand

1шт.

3

A162628

WASHER,25.4mm ID x 39.5mm OD x 1.57mm Thk

- pivot (Replaces A59662)

2шт.

4

A61869

QUADRANT

ASSEMBLY - shift, first and second gear, Includes: Ref. 5

1шт.

Note - The Control Support Ref #4 & #10 fit on is on page 512, Ref #1. 02/12/96

1шт.

5

A61871

BUSHING,15.95mm ID x 19.13mm OD x 6.48mm L

- pivot

2шт.

6

A149947

EYE

- connector, cable to quadrant (1/4 inch NF thread) (Order Ref. 7, 13, 15, and 21)

1шт.

7

A160511

EYE

- connector, cable to quadrant (5/16 inch NF thread)

1шт.

8

A145484

PIN,9.46mm OD x 28.57mm L

- quadrant

1шт.

9

132-316

COTTER PIN,3/32" x 1 1/4"

PIN, SPLIT (COTTER), 3/32" x 1 1/4"

1шт.

10

A135170

QUADRANT

ASSEMBLY - shift, third and fourth gear, Includes: Ref. 11

1шт.

Note - The Control Support Ref #4 & #10 fit on is on page 512, Ref #1. 02/12/96

1шт.

11

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- pivot

1шт.

12

A139235

CABLE

- quadrant to lower lever (1/4 inch NF thread) (Order Ref. 7, 13, 15 and 21)

2шт.

13

A160512

CABLE

- quadrant to lower lever (5/16 inch NF thread)

2шт.

14

A141285

YOKE

- cable (1/4 inch NF thread) (Order Ref. 7, 13, 15 and 21)

3шт.

15

A160630

CLEVIS,5/16" - 24

YOKE - cable (5/16 inch NF thread)

3шт.

16

A147652

PIN

- yoke

2шт.

17

A67298

LEVER

- transmission shift

2шт.

18

126-118

WOODRUFF KEY,#10, 5/32" x 7/8", HT

KEY - Woodruff, 5/32 x 3/4 inch (4 x 19 mm)

2шт.

19

F62023

SNAP RING,#93, Ext

Ring, Snap, , lever #93, Ext

2шт.

20

A145965

STRAP

- control cable, used with 1/4 inch NF thread cables and yokes (Order Ref. 7, 13, 15 and 21)

1шт.

21

A160516

STRAP

- control cable, used with 5/16 inch NF thread cables and yokes

1шт.

24

A160499

LEVER

- reverse lockout (Replaced A141433)

1шт.

25

195-106

WASHER,1/2"

- 9/16 x 1-3/8 x 7/64 inch (14 x 35 x 3 mm)

2шт.

26

A141435

SHAFT

- lockout lever

1шт.

27

131-1306

JAM NUT,Jam, 3/8"-16

NUT - hex lock, 3/8 inch NC

1шт.

28

A147686

LINK

- reverse lockout

1шт.

29

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

2шт.

30

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

4шт.
